Hettich - Sensys Angle Hinge 95° W90 With Integrated Silent System + Cross Mounting Plate
Item Code: 9091748/9091799
Brand: Hettich

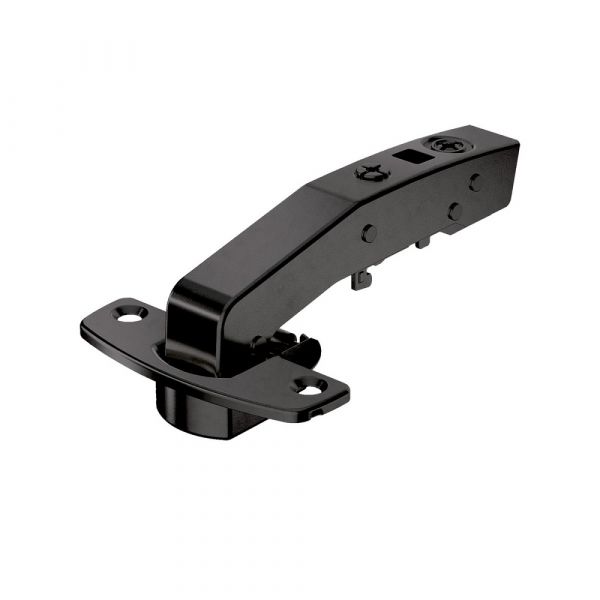

Sensys angle hinge W90.
With integrated Silent System, with self-closing feature (Sensys 8639i W90).
Quality classification under EN 15570, Level 3.
Height adjustment at mounting plate.
Steel in obsidian black.
Specification:

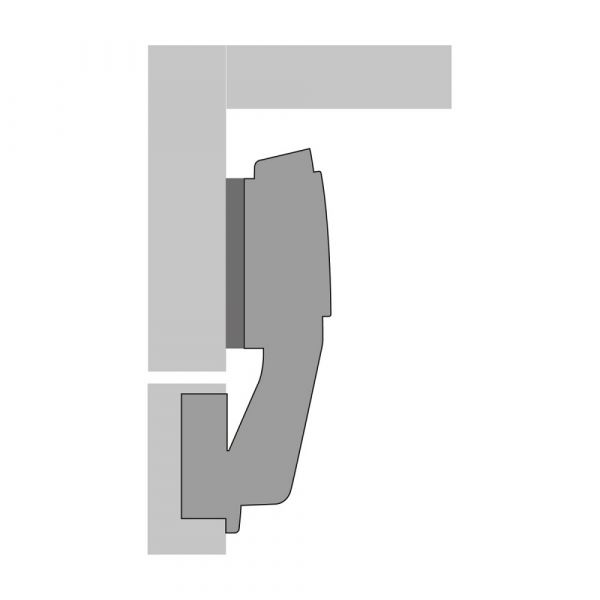

Inset
Design Corner cabinet 90° (W90)
Door type Standard door / wooden door
Aluminium framed door (profile width from 50 mm)
Wood framed door (profile width from 50 mm)
User friendly features with integrated silent system
Door mounting option inset
Opening angle 95 °
Min. door thickness 15 mm
Max. door thickness 28 mm
Cup version TH 52
Base 4 mm
Cup diameter 35 mm
Cup depth 12.8 mm
Type of installation for screwing on
Hinge surface finish steel in obsidian black
Drilling pattern TH 52 x 5,5 mm
Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment +3 mm / -2 mm
Integrated depth adjustment +1 mm / -2 mm
Stay closed function Yes
Finish in obsidian black
EAN 4023149145346
Order no. 9091748
PU 50
Hettich - Cross Mounting Plate
Cross mounting plate with oblong hole height adjustment
For Sensys in obsidian black
Quality classification under EN 15570, Level 3
Steel in obsidian black
Specification:
Cabinet body side panel thickness: 15 mm
Type of installation mounting plates: with euro screws (ø 5 x 12)
Mounting plate / Hole line distance LR / Hole spacing LA:
Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 0 mm, 1.5mm
Hole spacing: 32 mm
Material: steel
Finish: in obsidian black
Door mounting option: overlay, half overlay, inset
Type of installation: with euro screws
Mounting hole: ø 5 x 12
Order no.: 9091799
