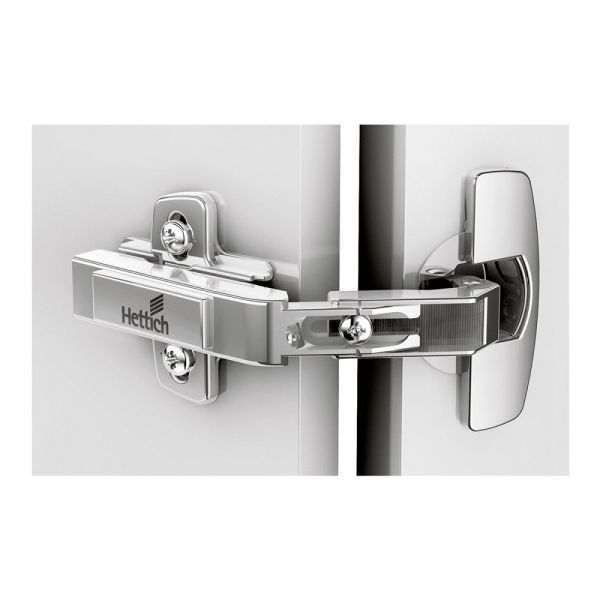

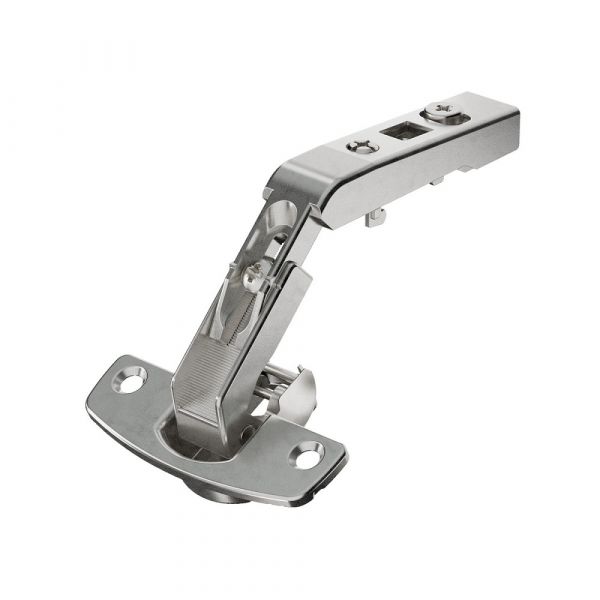

Hettich - Sensys Hinges Bi-Fold Without Self Closing - Opening Angle 50° / 65° + Cross Mounting Plate
Product Code: 9090109
Brand: Hettich
Hinge for corner cabinet folding doors
Without self-closing feature (Intermat 9930)
Quality classification under EN 15570, Level 2
Opening angle 50° / 65°
For door thickness 15 - 21 mm
Door mounting option overlay
Installation for screwing on
Integrated diagonal adjustment +9.5 mm / -9.5 mm
Integrated overlay adjustment, see sketch
Integrated depth adjustment, see sketch
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated

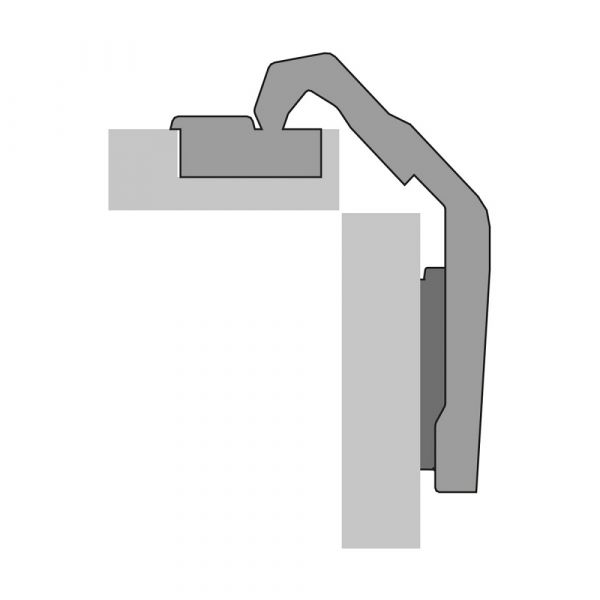

Design: Corner unit with folding door
Door type: Corner cabinet folding door
Standard door / wooden door: Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features: without self closing feature
Door mounting option: overlay
Min. door thickness: 15 mm
Max. door thickness: 21 mm
Cup version: TH 52
Base: 24 mm
Cup diameter: 35 mm
Cup depth: 12.8 mm
Type of installation: for screwing on
Hinge surface finish: steel / die-cast zinc nickel plated

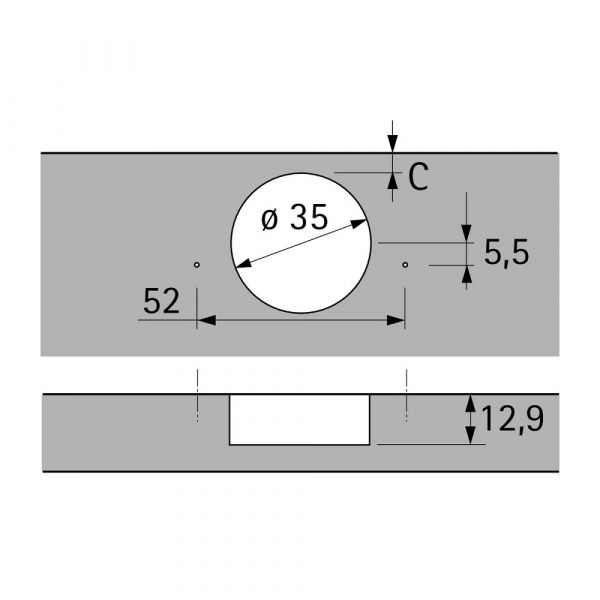

Drilling pattern: TH 52 x 5,5 mm
Diameter of mounting hole: Centre punch
Integrated overlay adjustment: +2 mm / -2 mm
Stay closed function: Yes
Finish: nickel plated

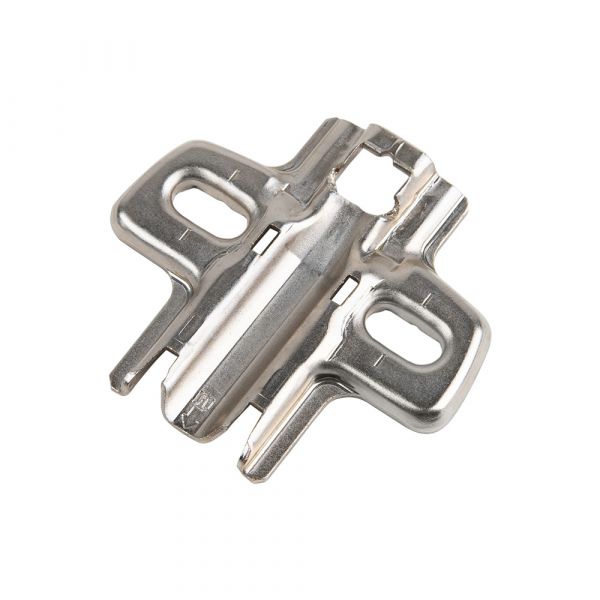

Hettich - Cross Mounting Plate
Product Code: 9071575
Brand: Hettich
Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
Specification:
Type of installation mounting plates: for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 1.5 mm, 0.0mm
Hole spacing: 32 mm
Material: steel
Finish: nickel plated
Door mounting option: overlay, half overlay, inset
Type of installation: for screwing on
