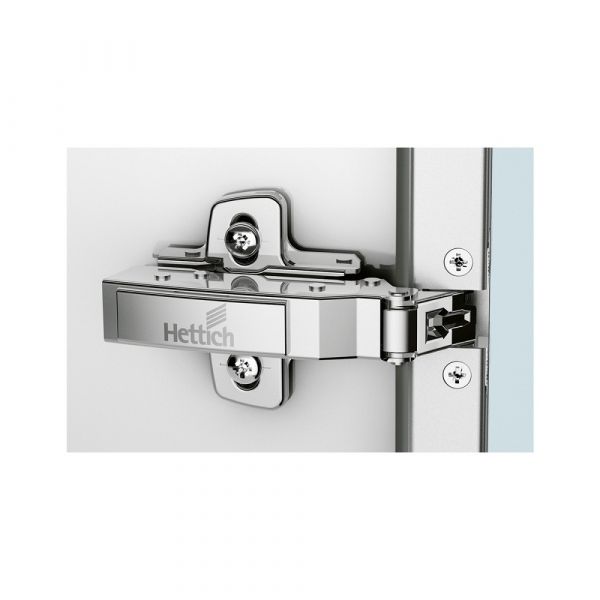

Hettich - Sensys Narrow Profile Hinge 95° With Integrated Silent System + Cross Mounting Plate
Brand: Hettich
Sensys Aluminium frame hinge
With integrated Silent System, with self-closing feature (Sensys 8638i)
Quality classification under EN 15570, Level 3
Height adjustment at mounting plate

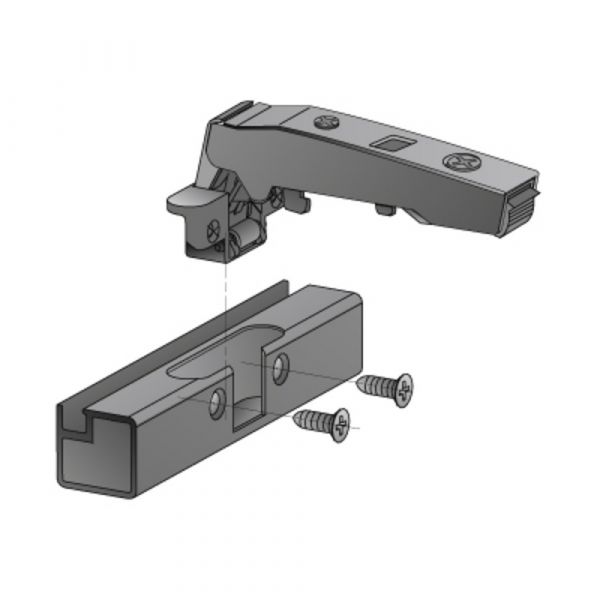

Including 2 fixing screws
Specification:
Design: 90° construction

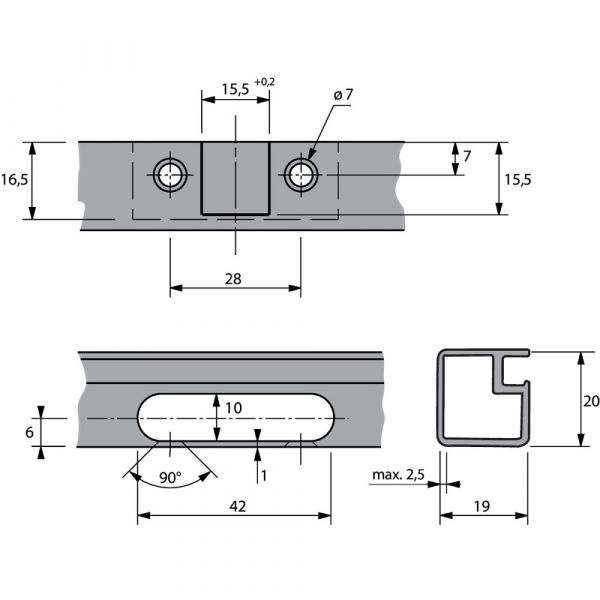

Door type: Aluminium framed door (profile width 19 mm)
User friendly features: with integrated silent system

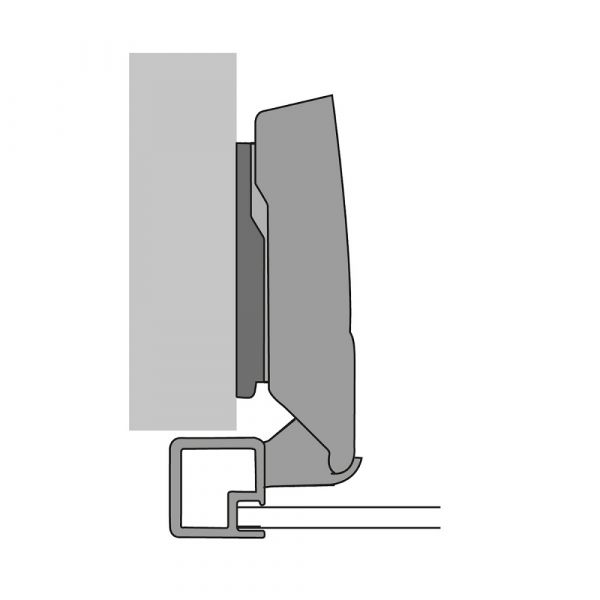

Door mounting option: overlay
Opening angle: 95 °
Min. door thickness: 20 mm
Max. door thickness: 20 mm
Cup version: TA 32
Base: 12.5 mm
Type of installation: for screwing on
Hinge surface finish: steel / die-cast zinc nickel plated
Integrated overlay adjustment: +2 mm / -2 mm
Integrated depth adjustment: +3 mm / -2 mm
Stay closed function: Yes
Finish: nickel plated
EAN: 4023149308604
Previous order no.: 9071421
Order no.: 9072524

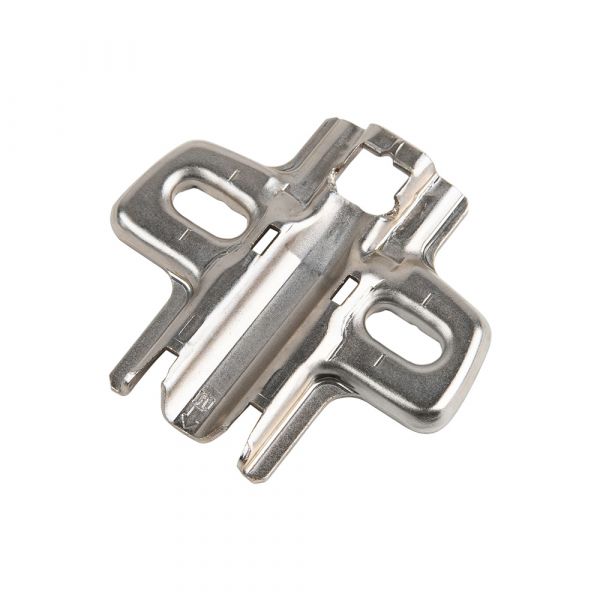

Hettich - Cross Mounting Plate
Brand: Hettich
Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
Specification:
Type of installation mounting plates: for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 1.5 mm, 0.0mm
Hole spacing: 32 mm
Material: steel
Finish: nickel plated
Door mounting option: overlay, half overlay, inset
Type of installation: for screwing on
EAN: 4023149960116
Order no.: 9071575
