Hettich - Sensys Wide Angle Hinge 165° Zero Protrusion With Integrated Silent System + Cross Mounting Plate

Brand: Hettich

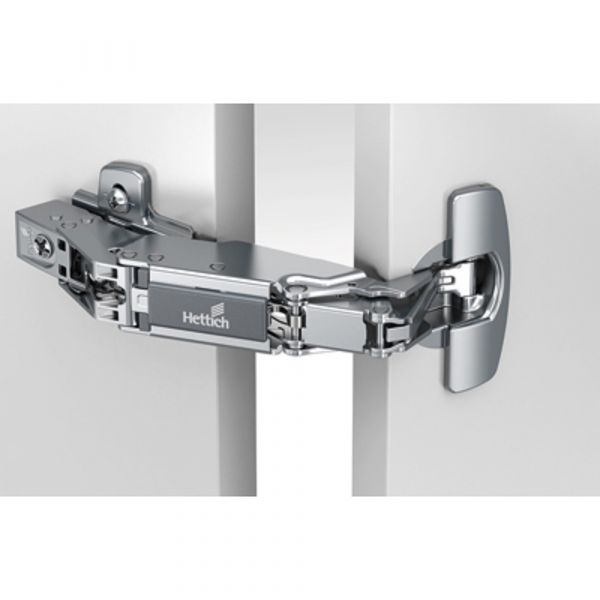

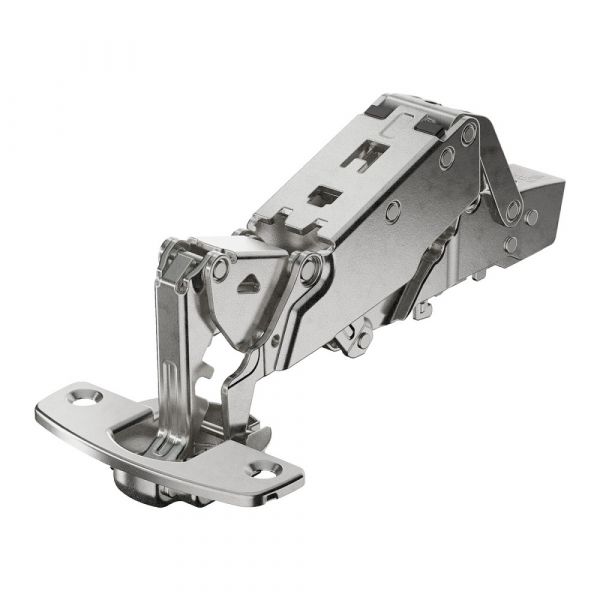

Sensys wide angle hinge, with zero protrusion

With integrated Silent System, with self-closing feature (Sensys 8657i)

Quality classification under EN 15570, Level 3

Installation for screwing on

Height adjustment at mounting plate

Steel / die-cast zinc nickel plated

Specification:

Design: 90° construction

Door type: Standard door / wooden door thick door Aluminium framed door (profile width from 50mm) Wood framed door (profile width from 50 mm)

User friendly features: with integrated silent system

Opening angle: 165 °

Min. door thickness: 15 mm

Max. door thickness: 32 mm

Cup version: TH 52

Cup diameter: 35 mm

Cup depth: 11.6 mm

Type of installation: for screwing on

Hinge surface finish: steel / die-cast zinc nickel plated

Drilling pattern: TH 52 x 5,5 mm

Diameter of mounting hole: Centre punch

Predrilled hole: 2.5 mm Ø max.

Integrated overlay adjustment: +2 mm / -2 mm

Integrated depth adjustment: +3 mm / -2 mm

Mounting hole: -

Stay closed function: Yes

Available Option:

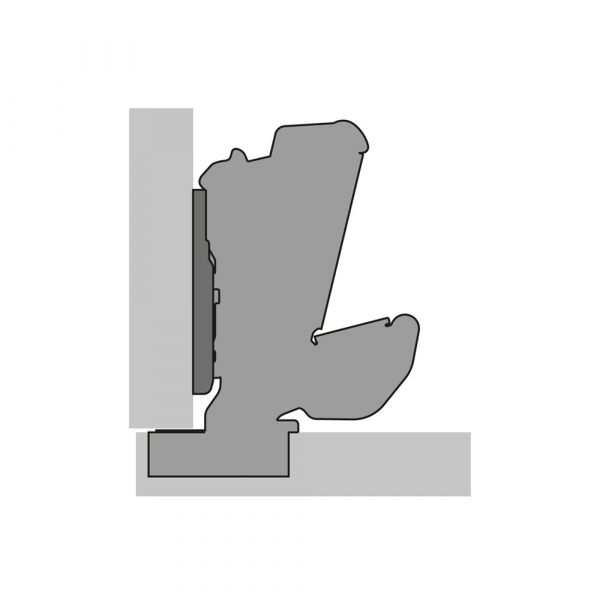

Full overlay

Base:12.5 mm

EAN:4023149847622

Order no.:9099540

Half overlay

Base:3 mm

EAN:4023149839177

Order no.:9099550

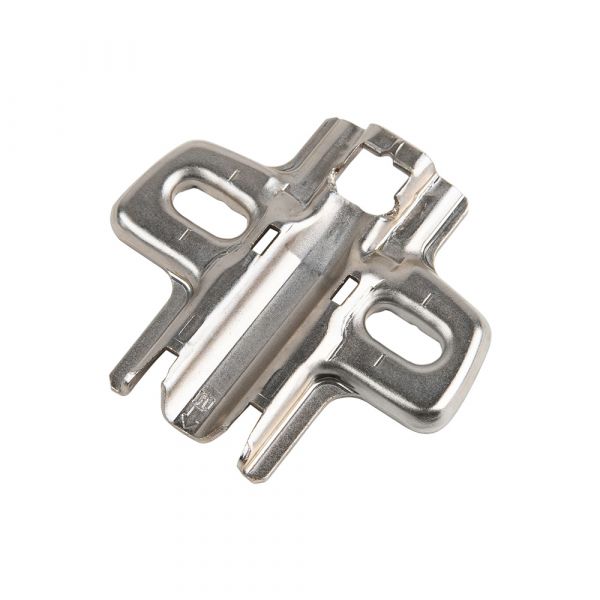

Hettich - Cross Mounting Plate

Brand: Hettich

Cross mounting plate with oblong hole height adjustment

For Sensys, Novisys and Intermat

Quality classification under EN 15570, Level 3

Specification:

Type of installation mounting plates: for screwing on

Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: oblong hole height adjustment

Adjustment range: + 3 mm / - 3 mm

Hole line: Hole line 37 x 32 mm

Distance: 1.5 mm, 0.0mm

Hole spacing: 32 mm

Material: steel

Finish: nickel plated

Door mounting option: overlay, half overlay, inset

Type of installation: for screwing on

EAN: 4023149960116

Order no.: 9071575
