Hettich - Sensys Wide Angle Hinge 165° With Integrated Silent System + Cross Mounting Plate

9091767/9091799
AED2471
AED3295 Excl. VAT
1 Set (AED24.71 per Set)
You save: AED8.24
In stock
Price in points: 25 points
Arab Tools
+971562015094

Brand: Hettich

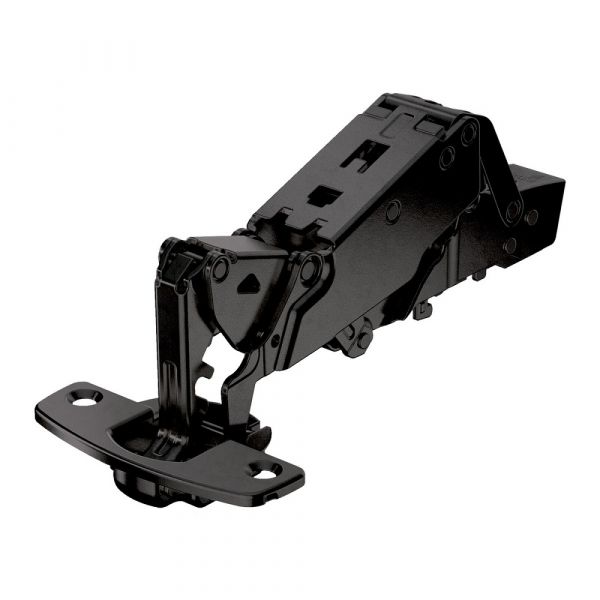

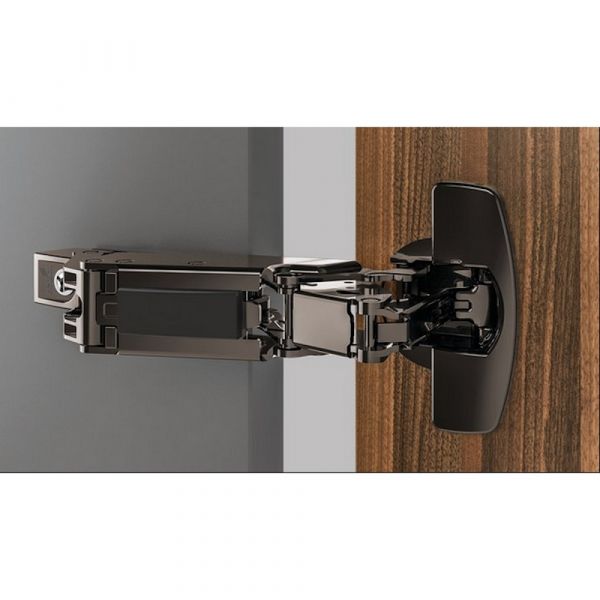

Sensys wide angle hinge, with zero protrusion.

With integrated Silent System, with self-closing feature (Sensys 8657i).

Quality classification under EN 15570, Level 3.

Height adjustment at mounting plate.

Steel / die-cast zinc in obsidian black.


Specification:

Design                                     90° construction

Door type                                 Standard door / wooden door, Thick door, Aluminium framed door (profile width from 50 mm), Wood                                                   framed door (profile width from 50 mm)

User friendly features              with integrated silent system

Door mounting option              overlay

Opening angle                         165 °

Min. door thickness                 15 mm

Max. door thickness                 32 mm

Cup version                             TH 52

Cup diameter                           35 mm

Cup depth                                11.6 mm

Type of installation                   for screwing on

Hinge surface finish                  steel / die-cast zinc in obsidian black

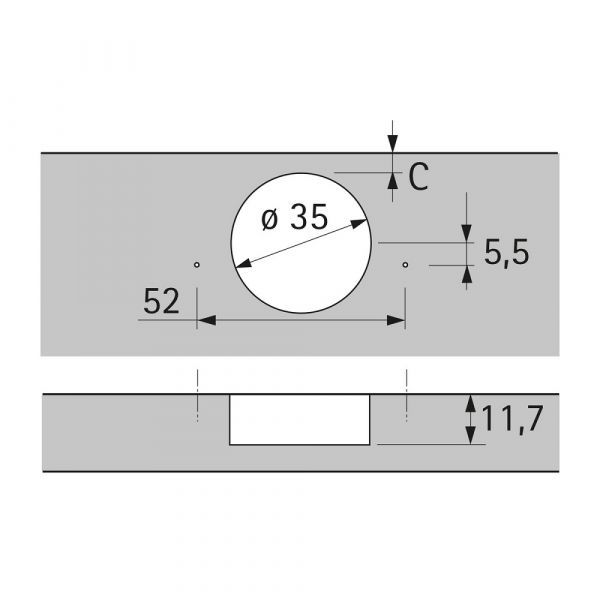

Drilling pattern                         TH 52 x 5,5 mm

Diameter of mounting hole        Centre punch

Predrilled hole                          2.5 mm Ø max.

Integrated overlay adjustment  +2 mm / -2 mm

Integrated depth adjustment    +3 mm / -2 mm

Stay closed function                 Yes

Finish                                       in obsidian black


Available Option:

Full Overlay

Base                                        12.5 mm

EAN                                         4023149145254

Order no.                                 9091767



Half Overlay

Base                                        3 mm

EAN                                         4023149145261

Order no.                                 9091768


Hettich - Cross Mounting Plate

Cross mounting plate with oblong hole height adjustment

For Sensys in obsidian black

Quality classification under EN 15570, Level 3

Steel in obsidian black


Specification:

Cabinet body side panel thickness: 15 mm

Type of installation mounting plates: with euro screws (ø 5 x 12)

Mounting plate / Hole line distance LR / Hole spacing LA:

Cross-mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: oblong hole height adjustment

Adjustment range: + 3 mm / - 3 mm

Hole line: Hole line 37 x 32 mm

Distance: 0 mm

Hole spacing: 32 mm

Material: steel

Finish: in obsidian black

Door mounting option: overlay, half overlay, inset

Type of installation: with euro screws

Mounting hole: ø 5 x 12

Order no.: 9091799
