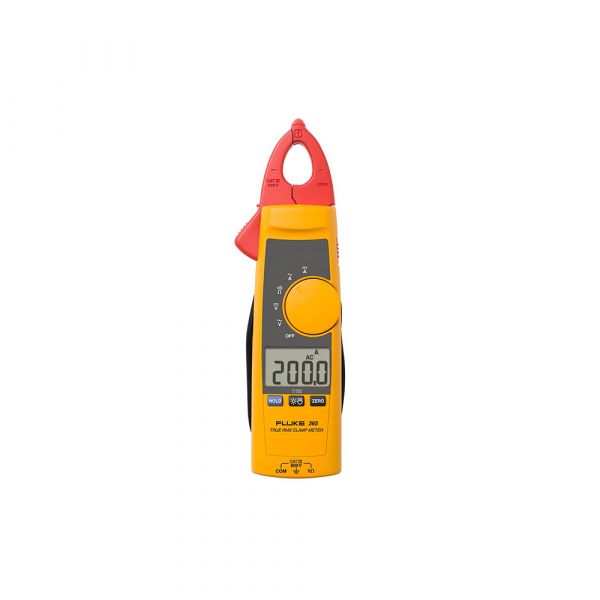

Fluke - Detachable Jaw True RMS AC/DC Clamp Meter
Product Code: Fluke-365
Brand: Fluke
200 A AC and DC current measurement with detachable jaw.
600 VAC and DC voltage measurement.

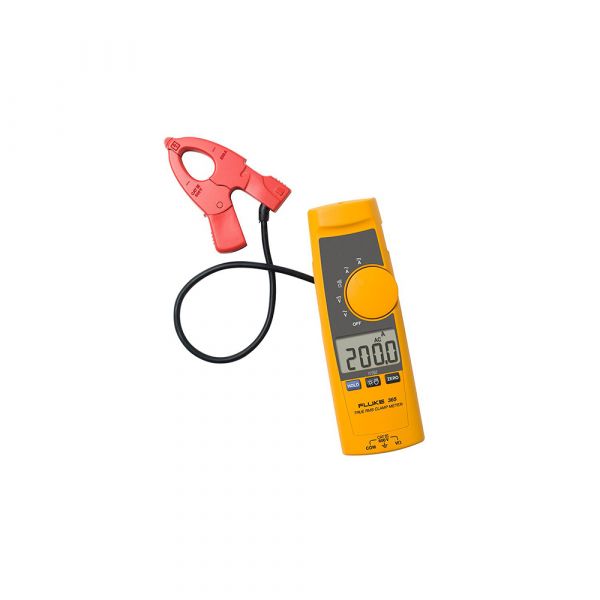

Detachable jaw makes accessing wires and viewing the display easier.
Built in flashlight/torch allows for easy illumination and identification of wires.
CAT III 600 V
Compact design fits in your hand and can be used while wearing protective equipment.
State of the art signal processing allows for use in noisy electrical environments while providing stable readings.
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement.
Three-year warranty
Soft carrying case
Be ready for anything.

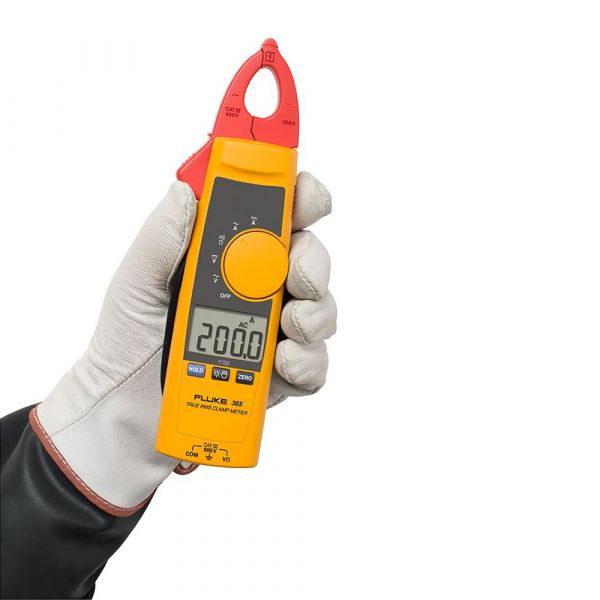

The Fluke 365 is a rugged meter perfect for jobs where access to wires is difficult. The 365’s thin, small jaw is detachable with a flexible lead, which makes gaining access to wires and viewing the display easier than ever.
Models: Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter
Fluke 365Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter Part#: 3620217
UPC#: 0 95969 54478 8
Includes:
- Coated instruction card
- Safety information sheet
- Soft carrying case
- TL75 test leads
- Magnetic hanging strap
- Five AA Alkaline batteries
R-FLUKE-365Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter, fully reconditioned to original factory specifications. Includes Fluke's 3 year product warranty.
Part#: 4391167
UPC#: 0 95969 68872 7
| Electrical Specifications | |
| AC Current | |
| Range | 200.0 A |
| Resolution | 0.1 A |
| Accuracy | 2 % ±5 digits (45 – 65 Hz) |
| 2.5 % ±5 digits (65 – 400 Hz) | |
| Crest Factor | 2.5 @ 125 A |
| 1.55 @ 200 A | |
| Add 2 % for C.F. >2 | |
| DC Current | |
| Range | 200.0 A |
| Resolution | 0.1 A |
| Accuracy | 2 % ±5 digits |
| AC Voltage | |
| Range | 600.0 V |
| Resolution | 0.1 V |
| Accuracy | 1.5 % ±5 digits (45 – 400 Hz) |
| DC Voltage | |
| Range | 600.0 V |
| Resolution | 0.1 V |
| Accuracy | 1 % ±5 digits |
| Resistance | |
| Range | 600.0 Ω/6000 Ω |
| Resolution | 0.1 Ω/1 Ω |
| Accuracy | 1 % ±5 digits |
| Mechanical Specifications | |
| Size (L x W x H) | 225 x 65 x 46 mm |
| 225 x 65 x 46 mm | 275 g (including batteries) |
| Jaw Opening | 18 mm |
| Detachable Jaw Cable Length | 900 mm |
| Environmental Specifications | |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temp | -40 °C to +60 °C |
| Operating Humidity | Non condensing (<10 °C) |
| ≤90 % RH (at 10 °C to 30 °C) | |
| ≤75 % RH (at 30 °C to 40 °C) | |
| ≤45 % RH (at 40 °C to 50 °C) | |
| (Without Condensation) | |
| Operating Altitude | 2000 meters |
| Storage Altitude | 12,000 meters |
| Temperature Coefficients | 0.1 x(specified accuracy)/ °C (<18 °C or > 28 °C) |
| Safety Compliance | ANSI/ISA S82.02.01:2004 |
| CAN/CSA-C22.2 No. 61010-1-04 | |
| UL 61010-1:2004 | |
| EN/IEC 61010-1:2001 to 600V CAT III | |
| Pollution Degree 2 | |
| Batteries | 2 AA, NEDA 15A, IEC LR6 |
