Fluke - Electrical Tester with FieldSense™ Round

Brand: Fluke

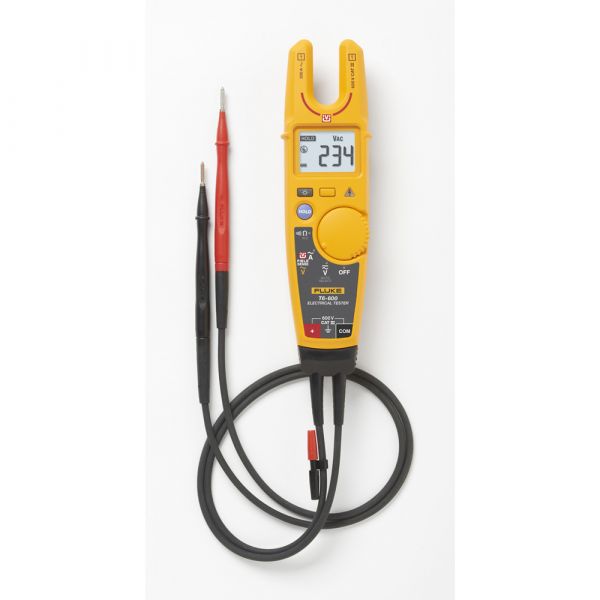

Fluke T6-600 Electrical Voltage, Current and Continuity Tester

The electrical tester to measure voltage … without test leads

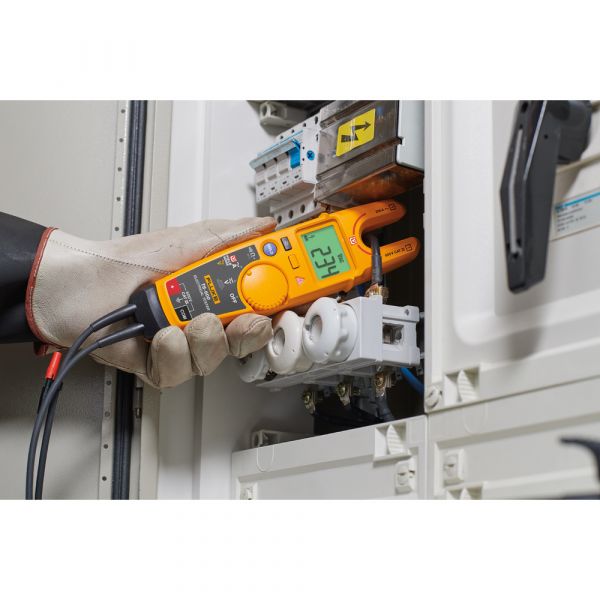

Electricians often work in boxes jammed with wires, where finding a safe metallic contact point can be a challenge. With the T6-600 current tester you take measurements by sliding a single wire into the open fork. Thanks to FieldSense technology you can measure ac voltage, current and frequency without making electrical contact to live voltage.

Fluke T6 voltage tester easily fits in your pocket.

Who needs a T6 continuity tester?

Commercial and light industrial electricians can use this Fluke continuity tester for most everyday measurements. This voltage tester easily fits in your pocket, making them easy to access on the front-line for electricians of all industries.

Product Highlights

FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage*

See voltage or current display – shows all power supply measurements at a glance for efficient trouble shooting.

1 to 600 V ac or dc (T6-600)

0 to 200 A ac

True-rms voltage and current

Resistance 1 Ω to 2000 Ω

Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening.

HOLD button temporarily freezes the reading for easy viewing.

Easy to read display with backlight.

Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation.

Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase.

* Voltage measurement requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations.

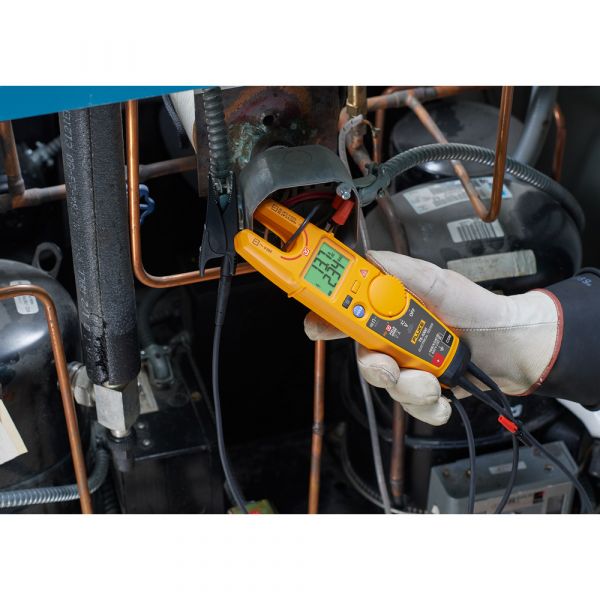

Fluke T6-1000 Electrical Tester

Measure voltage without test leads

The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True rms voltage and current measurements without test leads.

Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without contacting a live, metallic conductor. Just slide the 17.8 mm open fork, the widest in the industry, over a conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values. The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure voltage DC to 1000 V.

True rms voltage and current to 200 A AC, 1000 V AC.

Resistance 1 Ω to 100 kΩ.

Work on any jobsite.

Make use of the HOLD button to temporarily freeze the reading on the screen so you can keep working with the same measurement up. Plus, the display features large, easy-to-read numbers and a backlight for darker work environments or inside cabinets. The T6-1000 works with the Fluke TPACK ToolPak™ Magnetic Meter Hanger to make it even more convenient.

How FieldSense™ technology works.

FieldSense ™ technology is different than other open fork testers work by interpreting a magnetic field to show AC current. FieldSense™ detects an electrical field that interacts with a T6 reference signal, showing a voltage value on the tester’s display.
