Fluke - FC True-RMS AC/DC Clamp Meter

Product Code: Fluke-374FC

Brand: Fluke

Advanced clamp meter that transmits measurements to your smartphone via Fluke Connect® for viewing at a safer distance

Performs AC and DC current measurements to 600 A, and AC and DC voltage measurements to 1000 V

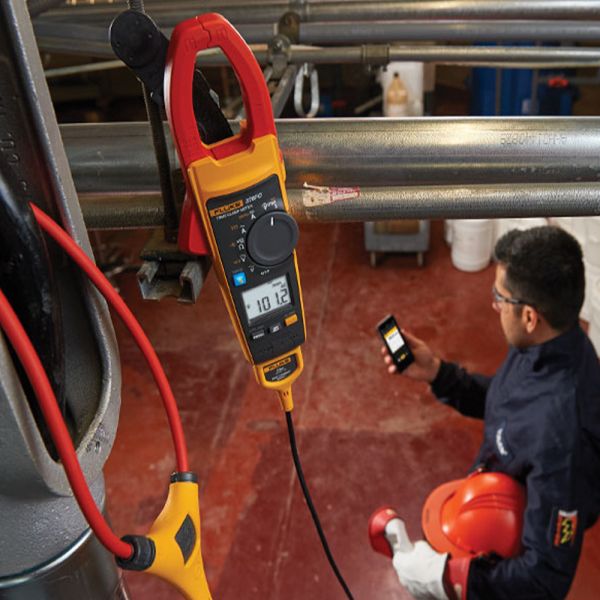

Measures AC current to 2500 A AC with optional iFlex flexible current probe

Measures resistance to 6000 Ω with continuity detection

Fluke 374 FC delivers advanced troubleshooting performance and wireless connectivity

The Fluke 374 FC, part of the Fluke Connect family of wireless test tools, delivers the standard features you need for everyday troubleshooting. Measure AC and DC current to 600 A with the fixed jaw clamp or add an optional iFlex® flexible current probe to measure all the way to 2500 A. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access tightly packed wires. You can also use the 374 FC to measure AC and DC voltage to 1000 V and resistance to 6000 Ω.

Use wireless connectivity to keep a safe distance

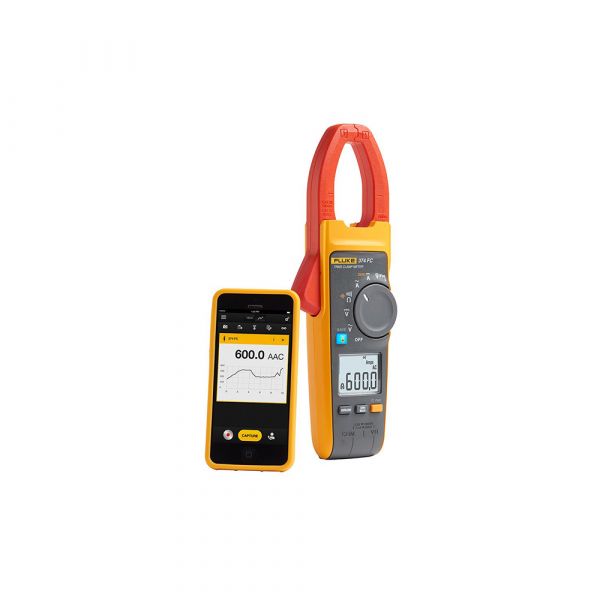

The 374 FC is Fluke Connect-enabled to wirelessly transmit results via Bluetooth to Apple and Android devices. That means you can read the results out of the arc flash zone, wearing less PPE. You can even save results to the cloud and create and send reports in email right from the field. Or converse in real-time with ShareLive™ video calls.

Versatile feature set

With True-RMS AC voltage and current measurements, the 374 FC enables you to accurately troubleshoot non-linear signals. And you can log and trend measurements to pinpoint intermittent while you are performing other tasks. The Fluke 374 FC Clamp Meter is the direct replacement for the Fluke 374 Clamp Meter.

Other useful capabilities

Compatible with optional TPAK magnetic hanging strap

Comes with soft carrying case, batteries, and three-year warranty

Measures capacitance to 1000 µF

Features CAT III 1000 V, CAT IV 600 V safety rating

Provides True-RMS voltage and current measurements to accurately measure non-linear signals

Includes Min/Max/Avg and inrush recording to capture variations automatically

Runs on two AA alkaline batteries

Specifications: Fluke 374 FC True-RMS AC/DC Clamp Meter

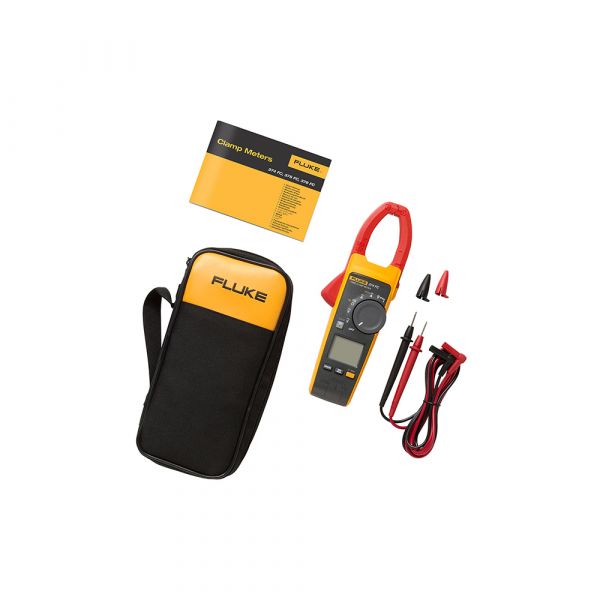

Includes:

• Soft carrying case
• TL75 test leads
• Two AA Alkaline batteries
• Coated instruction card
• Safety information sheet
