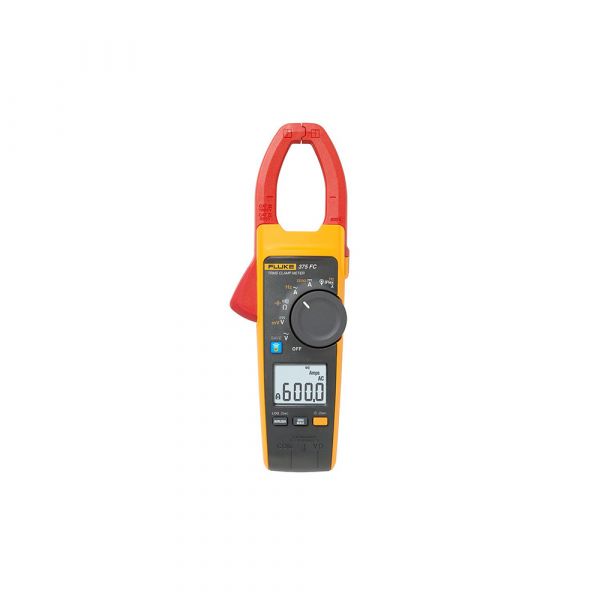

Fluke - FC True-RMS AC/DC Clamp Meter - High Performance
Product Code: Fluke-375FC
Brand: Fluke
High performance clamp meter that measures very low voltage and high resistance

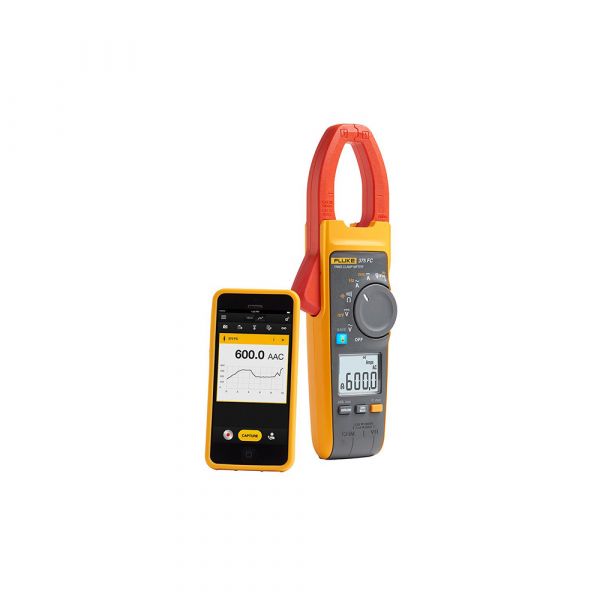

Transmits measurements to your smartphone via Fluke Connect® so you can view them at a safer distance
Measures AC and DC current to 600 A, and AC and DC voltage to 1000 V
Measures AC current to 2500 A AC with optional iFlex flexible current probe
The Fluke 375 FC, part of the Fluke Connect family of wireless test tools, delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements and wireless communications to transmit results to a smartphone via Fluke Connect.
The 375 FC offers most of the features of the Fluke 376 FC including compatibility with the iFlex flexible current probe but, unlike the 376 FC, it does not include the iFlex® probe in the package.
You can measure AC and DC current to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access individual wires.
Wireless connectivity improves productivity

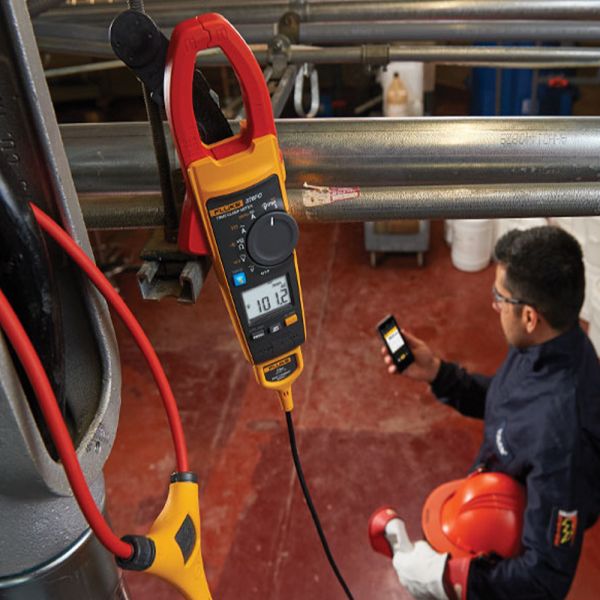

Using its Bluetooth connectivity to Apple and Android devices, you can read the 375 FC results a safe distance away on your smartphone, wearing less PPE. You can create and send reports in email right from the field and save results to the cloud. You can also converse with colleagues in real-time with ShareLive™ video calls.
Versatile performance
With True-RMS AC voltage and current measurements, the 375 enables you to accurately troubleshoot non-linear signals. And you can log and trend measurements to pinpoint intermittent while you are performing other tasks. The Fluke 375 FC Clamp Meter is the direct replacement for the Fluke 375 Clamp Meter.
Other useful capabilities
Compatible with optional TPAK magnetic hanging strap
Comes with batteries, soft carrying case, and three-year warranty
Features CAT III 1000 V, CAT IV 600 V safety rating
Measures capacitance to 1000 µF
Includes True-RMS voltage and current measurements to accurately measure non-linear signals
Measures frequency to 500 Hz and resistance to 60 kΩ with continuity detection
Includes Min/Max/Avg and inrush recording to capture variations automatically
Offers 500 mV DC measurement range to interface with other accessories
Runs on two AA alkaline batteries
Includes
- Soft carrying case
- TL75 test leads
- Two AA Alkaline batteries
- Coated instruction card
- Safety information sheet
| General Specifications | ||
| AC Current via Jaw | ||
| Range | 600.0 A | |
| Resolution | 0.1 A | |
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz) | |
| 2.5% ±5 digits (100-500 Hz) | ||
| Crest Factor (50 Hz/60 Hz) | 3 @ 500 A | |
| 2.5 @ 600 A | ||
| Add 2% for C.F. >2 | ||
| AC Current via Flexible Current Probe | ||
| Range | 2500 A | |
| Resolution | 0.1 A (≤ 600 A) | |
| 1 A (≤ 2500 A) | ||
| Accuracy | 3% ±5 digits (5 – 500 Hz) | |
| Crest Factor (50/60Hz) | 3.0 at 1100 A | |
| 2.5 at 1400 A | ||
| 1.42 at 2500 A | ||
| Add 2% for C.F. > 2 | ||
| Position Sensitivity | ||
| A |
|
|
| Distance from Optimum | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) |
| Error | ±0.5 % | ±0.5 % |
| B |
|
|
| Distance from Optimum | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) |
| Error | ±1.0 % | ±1.0 % |
| C |
|
|
| Distance from Optimum | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) |
| Error | ±2.0 % | ±2.0 % |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | ||
| DC Current | ||
| Range | 600.0 A | |
| Resolution | 0.1 A | |
| Accuracy | 2% ±5 digits | |
| AC Voltage | ||
| Range | 1000 V | |
| Resolution | 0.1 V (≤600.0 V) | |
| 1 V (≤1000 V) | ||
| Accuracy | 1.5% ±5 digits (20 Hz to 500 Hz) | |
| DC Voltage | ||
| Range | 1000 V | |
| Resolution | 0.1 V (≤600.0 V) | |
| 1 V (≤1000 V) | ||
| Accuracy | 1% ±5 digits | |
| mV dc | ||
| Range | 500.0 mV | |
| Resolution | 0.1 mV | |
| Accuracy | 1% ±5 digits | |
| Frequency via Jaw | ||
| Range | 5.0 Hz to 500.0 Hz | |
| Resolution | 0.1 Hz | |
| Accuracy | 0.5% ±5 digits | |
| Frequency via Flexible Current Probe | ||
| Range | 5.0 Hz to 500.0 Hz | |
| Resolution | 0.1 Hz | |
| Accuracy | 0.5% ±5 digits | |
| Trigger level | 5 Hz to 20 Hz, ≥25 A | |
| Resistance | ||
| Range | 60 kΩ | |
| Resolution | 0.1 Ω (≤600 Ω) | |
| 1 Ω (≤6000 Ω) | ||
| 10 Ω (≤60 kΩ) | ||
| Accuracy | 1% ±5 digits | |
| Capacitance | ||
| Range | 1000 μF | |
| Resolution | 0.1 μF (≤ 100 μF) | |
| 1 μ F (≤ 1000 μF) | ||
| Accuracy | 1% ±4 digits | |
| Mechanical Specifications | ||
| Maximum voltage between any terminal and earth ground | 1000 V | |
| Batteries | 2 AA, NEDA 15A, IEC LR6 | |
| Operating temperature | -10 °C to +50 °C | |
| Storage temperature | -40 °C to +60 °C | |
| Operating altitude | 3000 m | |
| Storage altitude | 12,000 m | |
| Size (L x W x H) | 249 x 85 x 45 mm | |
| Weight | 395 g | |
| Jaw opening | 34 mm | |
| Flexible current probe diameter | 7.5 mm | |
| Flexible current probe cable length (head to electronics connector) | 1.8 m |
