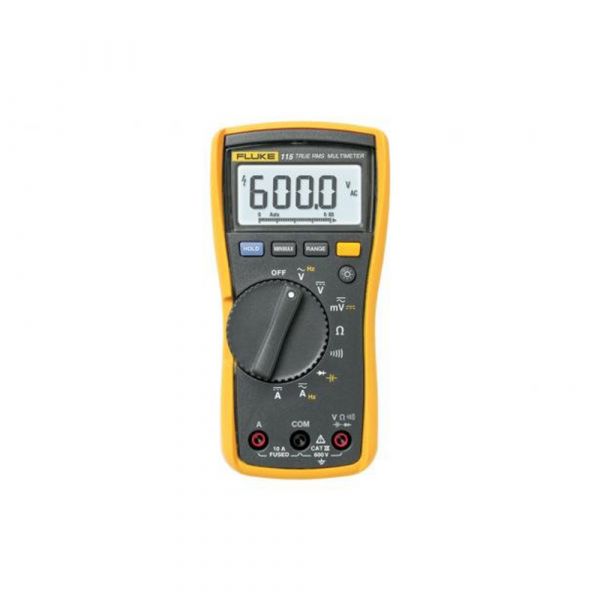

Fluke - Field Technicians Digital Multimeter
Product Code: Fluke-115-EUR
Brand: Fluke
The 115 digital multimeter is for electrical and electronic testing in field service, industrial and applications where more than the basic functions are needed.
Ideal for quick verifications and field service.
Min/Max/Average to record signal fluctuations.
CAT III 600V

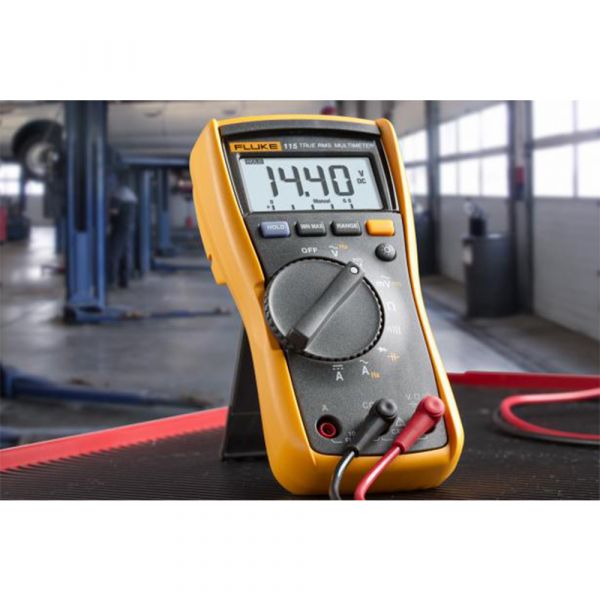

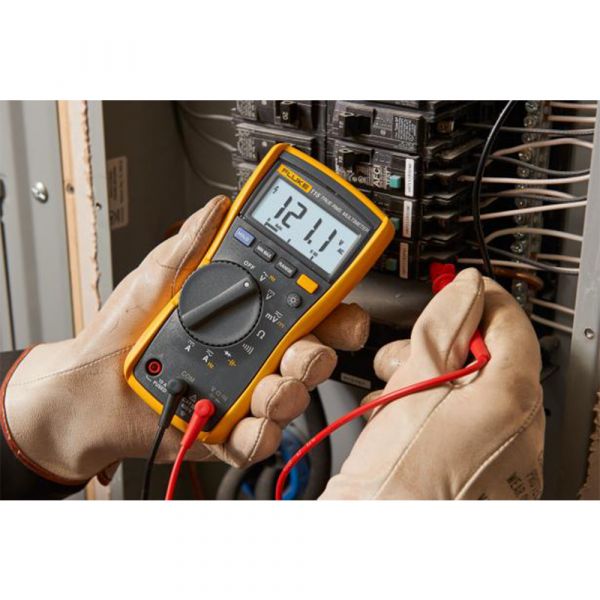

The Fluke 115 technician’s digital multimeter is the compact, general purpose troubleshooting tool for field service technicians. Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications.
Features:
Ideal for quick verifications and field service.
Presents a large white LED backlight for working in poorly lit areas.
Measures AC and DC voltage to 600V.
Measures AC and DC current to 10A (20 A overload for 30-seconds max).
Measure’s resistance, continuity, frequency, and capacitance.
Provides Min/Max/Average with elapsed time to record signal fluctuations.
Comes with a holster with probe holders for easy storage.
Features a compact ergonomic design for one-handed operation.
Fits into optional ToolPak™ magnetic hanger for hands-free operation.
CAT III 600 V safety rated.
For field service technicians, basic electronic repair.
Includes:
- Holster
- Installed 9V battery
- 4 mm silicone test lead set
- User manual - 2019 BEST PRODUCT IN CATEGORY
General Specifications
Maximum voltage between any terminal and earth ground: 600 V
Safety IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
Display Digital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10℃ to + 50℃
Storage temperature: -40℃ to + 60℃
Battery type: 9 volt Alkaline, IEC 6LR61
Battery life: 400 hours typical, without backlight
Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight: 550 g
Warranty: 3 years
| Specifications | ||
| Accuracy Specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) | |
| AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) | |
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer. | |
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF |
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| AC amps True RMS (45 Hz to 500Hz) | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.5% + 3 20 A overload for 30-seconds max | |
| DC amps | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3 20 A overload for 30-seconds max | |
| Hz (V or A input)2 | Range/resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50.00 kHz / 0.01 kHz |
| Accuracy | 0.1% + 2 | |
|
