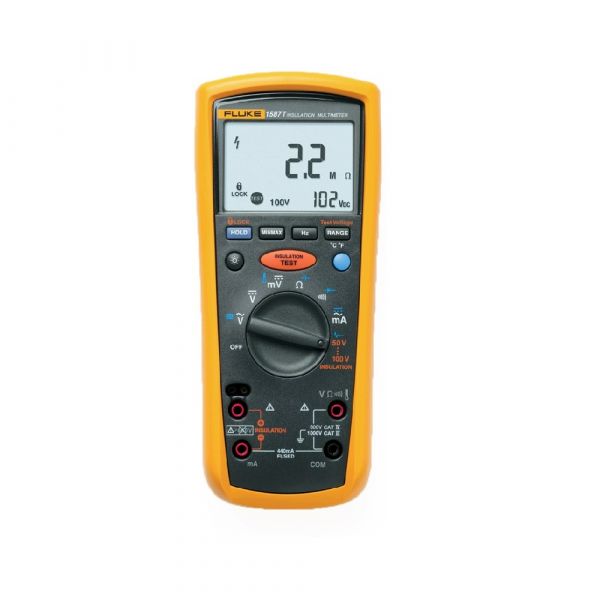

Fluke - Insulation Multimeter (Telecom)
Product Code: Fluke-1587T
Brand: Fluke
Insulation test voltages (50 V and 100 V only) for telecom applications
Insulation test (0.1 MΩ to 100 MΩ).
Rugged, utility hard case allows you to bring everything you need for the job.
True RMS measurements.
Insulation test voltages (50V and 100V, only).
For use in Telecom industry.
Large, backlit display.
Insulation test range 0.01 MO – 2 GO
Live circuit detection prevents insulation test when voltages is above 30V.
Auto-discharge of capacitive voltage.
AC/DC voltage, DC milliVolts, AC/DC milliamps, resistance and continuity, capacitance, diode test, temperature, Min/Max, frequency.
Filter for motor drive measurements.
Auto power off to save battery power.
CAT III 1000 V, CAT IV 600 V measurement category.
Includes:
- Remote Probe
- Test Lead Set
- Alligator Clip Set
- K-Type Thermocouple
- Hard Carrying Case
- User Manual
| AC Voltage Measurement | |
| Range | 600.0mV, 6.000, 60.00, 600.0, 1000V |
| Resolution | 0.1mV, 0.001, 0.01, 0.1, 1V |
| 50 to 60 Hz ±(% of Rdg + counts) | 600.0mV, 6.000, 60.00, 600.0V: ±(1% + 3) 1000V: ±(2% + 3) |
| 60 to 5000 Hz ±(% of Rdg + counts) | 00.0mV, 6.000, 60.00, 600.0, 1000V: ±(2% + 3) |
| DC Voltage Measurement | |
| Range | 6.000, 60.00, 600.0, 1000V |
| Resolution | 0.001, 0.01, 0.1, 1V |
| Accuracy ±(% of Rdg + counts) | 6.000, 60.00, 600.0, 1000V: ±(0.09% + 2) |
| General Specifications | |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Operating Temperature | -4 to 131°F (-20 to 55°C) |
| Power Supply | 4 x “AA” Batteries (NEDA 15A or IEC LR6) |
| Battery Life | Meter Use: 1000 hours Insulation Test Use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
| Size | 5.0 x 10.0 x 20.3cm (1.97 x 3.94 x 8.00″) |
| Weight | 550g (1.2lb) |
