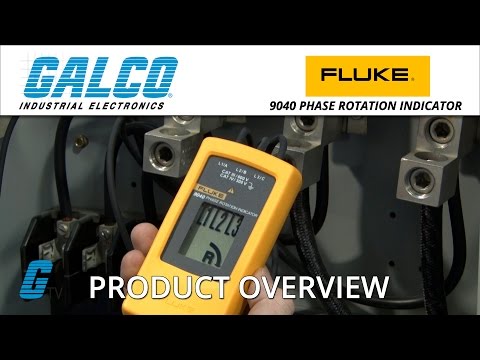

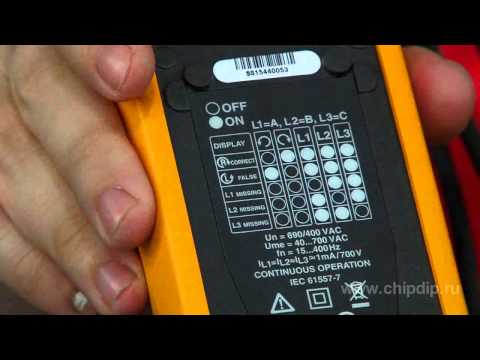

Fluke - Phase Rotation Indicator
Product Code: Fluke-9040-EUR
Brand: Fluke
Phase rotation indicator with high voltage capability for industrial applications
The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Includes:
3 Self-Retaining Test Probes (Black)
Alligator Clip
User Manual
Technical Specifications:
Voltage Range : 40-700 V
Frequency Range: 15-400 Hz
Operating Timer: Continuous
Environmental Specifications:
Operating Temperature: 0°C to 40°C
Dust/Water Resistance : IP 40
Safety Specifications:
Electrical Safety: EN 61010,
EN 61557-7
Overvoltage category: CAT III, 600 V
CAT IV, 300V
Mechanical and General Specifications:
Size: 124 x 61 x 27 mm
Weight: 200 g
Power supply: From unit under test
Warranty: 2 years
