Fluke - TRMS Digital Multimeter With Temperature Readings
Product Code: Fluke-179
Brand: Fluke
The Fluke 179 TRMS multimeter is a full-featured for
Precision digital multimeter for troubleshooting
Repair of electrical and electronic systems
Built-in thermometer to measure temperature without having to carry a separate instrument
Accurate true-RMS AC current and voltage plus frequency
Capacitance, resistance, continuity and diode measurements
Increases productivity with manual and automatic ranging,
Display Hold, Auto Hold, and Min/Max-average recording
Fluke 179 TRMS Multimeter with temperature readings
This Digital Multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. You can trust the rugged reliable Fluke 179 digital multimeter to get the job done in all of the messy, loud, high energy, and high-altitude places you work. Whether you need a electrical multimeter for industrial troubleshooting or electrical and electronic system installation or maintenance, the Fluke 179 with its true-RMS capabilities can do the job. This electrical multimeter is independently tested for safe use in CAT III 1000 V, CAT IV 600 V environments and backed by a lifetime warranty.
The Fluke 170 Series of digital multimeters have the features needed to find most electrical, electro-mechanical, and heating and ventilation problems.
Safety rated CAT III 1000 V, CAT IV 600 V
This fluke digital multimeter comes with a lifetime warranty
Allows closed-case calibration through front panel
Includes ergonomic case with integrated protective holster

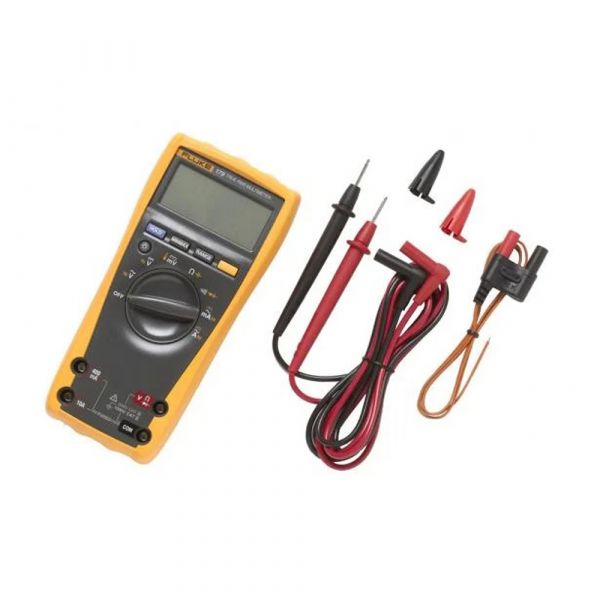

Includes:
80BK Temperature Probe
Installed 9V battery
Test leads with 4mm lantern tips
User’s manual
Specifications | ||
Voltage DC | Accuracy1 | ±(0.09% + 2) |
Max. resolution | 0.1 mV | |
Maximum | 1000 V | |
Voltage AC | Accuracy1 | ±(1.0% + 3) |
Max. resolution | 0.1 mV | |
Maximum | 1000 V | |
Current DC | Accuracy1 | ±(1.0% + 3) |
Max. resolution | 0.01 mA | |
Maximum | 10 A | |
Current AC | Accuracy1 | ±(1.5% + 3) |
Max. resolution | 0.01 mA | |
Maximum | 10 A | |
Resistance | Accuracy1 | ±(0.9% + 1) |
Max. resolution | 0.1 Ω | |
Maximum | 50 MΩ | |
Capacitance | Accuracy1 | ±(1.2% + 2) |
Max. resolution | 1 nF | |
Maximum | 10,000 µF | |
Frequency | Accuracy1 | ±(0.1% + 1) |
Max. resolution | 0.01 Hz | |
Maximum | 100 kHz | |
Temperature | Accuracy1 | ±(1.0% + 10) |
Max. resolution | 0.1°C | |
Range | -40°C / 400°C | |
1. Accuracies are best accuracies for each function | ||
Environmental Specifications | ||
Operating temperature | -10°C to +50°C | |
Storage temperature | -30°C to +60°C | |
Humidity (without condensation) | 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C) | |
Safety Specifications | ||
Overvoltage category | EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV | |
Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
Mechanical and General Specifications | ||
Size | 43 x 90 x 185 mm | |
Weight | 420 g | |
Warranty | Lifetime | |
Battery life | Alkaline ~200 hours typical, without backlight |
