Fluke - True-RMS Clamp Meter With iFlex - Wireless Test Tools
Product Code: Fluke-376FC
Brand: Fluke
Measures AC/DC current with included iFlex current probe.
VFD low pass filter for accurate measurements of non-linear signals.
Remotely log, trend and monitor to pinpoint intermittent faults.
Inrush measurement to filter out noise and capture starting current.

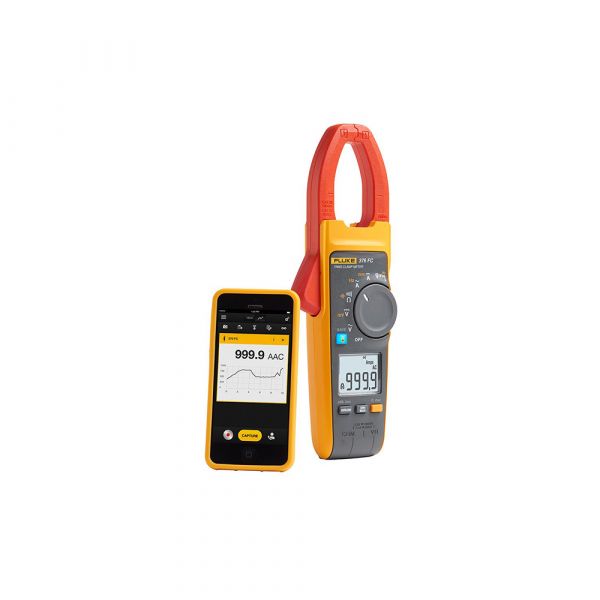

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.
Find the cause of difficult problems
The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.
Measure:
Voltage to 1000 V AC or DC
Resistance to 60 kΩ with continuity detection
Min, max, average, and inrush recording to capture variations automatically
500 mV DC measurement range to interface with other accessories
1000 μF capacitance measurement
Work safely and conveniently
The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.
The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:
Expands the measurement range to 2500 A AC
Allows frequency measurement to 500 Hz with body jaw and iFlex
Models: Fluke 376 FC True-RMS Clamp Meter with iFlex
Fluke 376 FC with 18-inch iFlex
Fluke 376 FC True-RMS Clamp Meter

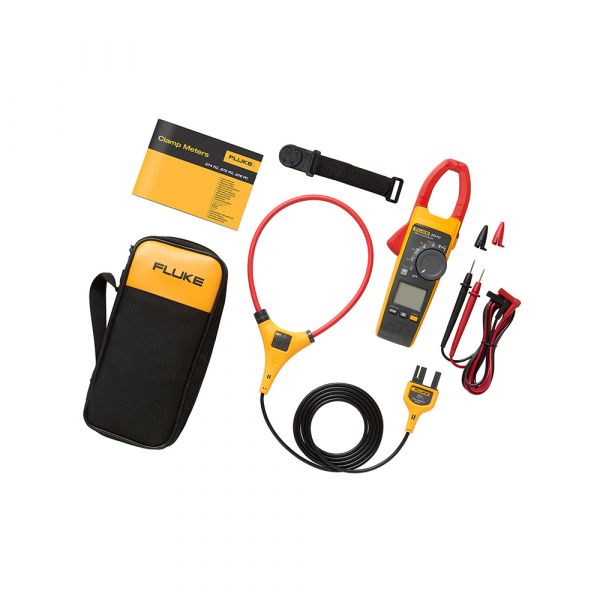

Includes:
- Fluke 376 FC True-RMS Clamp Meter
- 18-inch iFlex® Flexible Current Probe
- TPAK magnetic hanging strap
- TL75 Test Leads
- Two AA batteries (Installed)
- Soft carrying case
- Coated instruction card
- Safety information sheet
| General Specifications | |
| AC Current via Jaw | |
| Range | 999.9 A |
| Resolution | 0.1 A |
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz) |
| 2.5% ±5 digits (100-500 Hz) | |
| Crest Factor (50 Hz/60 Hz) | 3 @ 500 A |
| 2.5 @ 600 A | |
| Add 2% for C.F. >2 | |
| AC Current via Flexible Current Probe | |
| Range | 2500 A |
| Resolution | 0.1 A (≤ 600 A) |
| 1 A (≤ 2500 A) | |
| Accuracy | 3% ±5 digits (5 – 500 Hz) |
| Crest Factor (50/60Hz) | 3.0 at 1100 A |
| 2.5 at 1400 A | |
| 1.42 at 2500 A | |
| Add 2% for C.F. > 2 |
| iFlex Probes | ||
| Distance from Optimum | i2500-10 | Additional iFlex® Error |
| A | 0.5 in (12.7 mm) | ±0.5% |
| B | 0.8 in (20.3 mm) | ±1.0% |
| C | 1.4 in (35.6 mm) | ±2.0% |
| Distance from Optimum | i2500-18 | Additional iFlex® Error |
| A | 1.4 in (35.6 mm) | ±0.5% |
| B | 2.0 in (50.8 mm) | ±1.0% |
| C | 2.5 in (63.5 mm) | ±2.0% |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature. |
