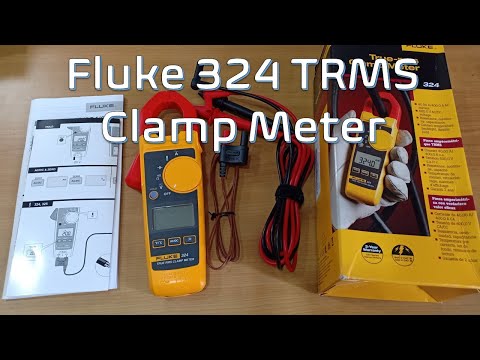

Fluke - True-RMS Clamp Meter with Temperature & Capacitance
Product Code: Fluke-324
Brand: Fluke
It does everything a HVAC or Maintenance Tech would need. Out of 12 guys I work with 9 of them had the 324” - Thomas.
Rugged, reliable basic True-RMS clamp meter.
Measure AC current up to 400 A, AC/DC voltage to 600V.
Measure resistance up to 4kΩ, continuity detection ≤ 30Ω.
Additions from 323 Clamp: Temperature, Capacitance, Backlight
The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.
Troubleshoot problems safely and accurately
CAT III 600 V, CAT IV 300 V safety rating.
Provides True RMS AC voltage and current for accurate measurements on non-linear signals.
Measures AC current up to 400 A.
Measures AC/DC voltage to 600V.
Measures resistance to 4kΩ with continuity detection ≤ 30Ω.
Measures temperature from -10C to 400C.
Measures capacitance to 1000μF.
Backlight and hold function capture a reading on the display.
Comes with a two-year warranty and soft carrying case.
Contents:
- Fluke 324 True-RMS Clamp Meter
- TL75 Test Leads
- Type K Thermocouple
- Two AAA Batteries (Installed)
- Soft Case
| Specifications | ||
| AC current | Range | 40.00 A / 400.0 A |
| Accuracy | 1.5% ± 5 digits (45 Hz to 400 Hz) Note: Add 2% for position sensitivity | |
| DC current | Range | - |
| Accuracy | - | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω/ 4000 Ω |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ω | |
| Capacitance | 0 to 100.0 μF / 100μF to 1000 μF | |
| Frequency | - | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | - | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 208 g | |
| Category rating | CAT III 600 V CAT IV 300 V | |
| Warranty | Two-year |
