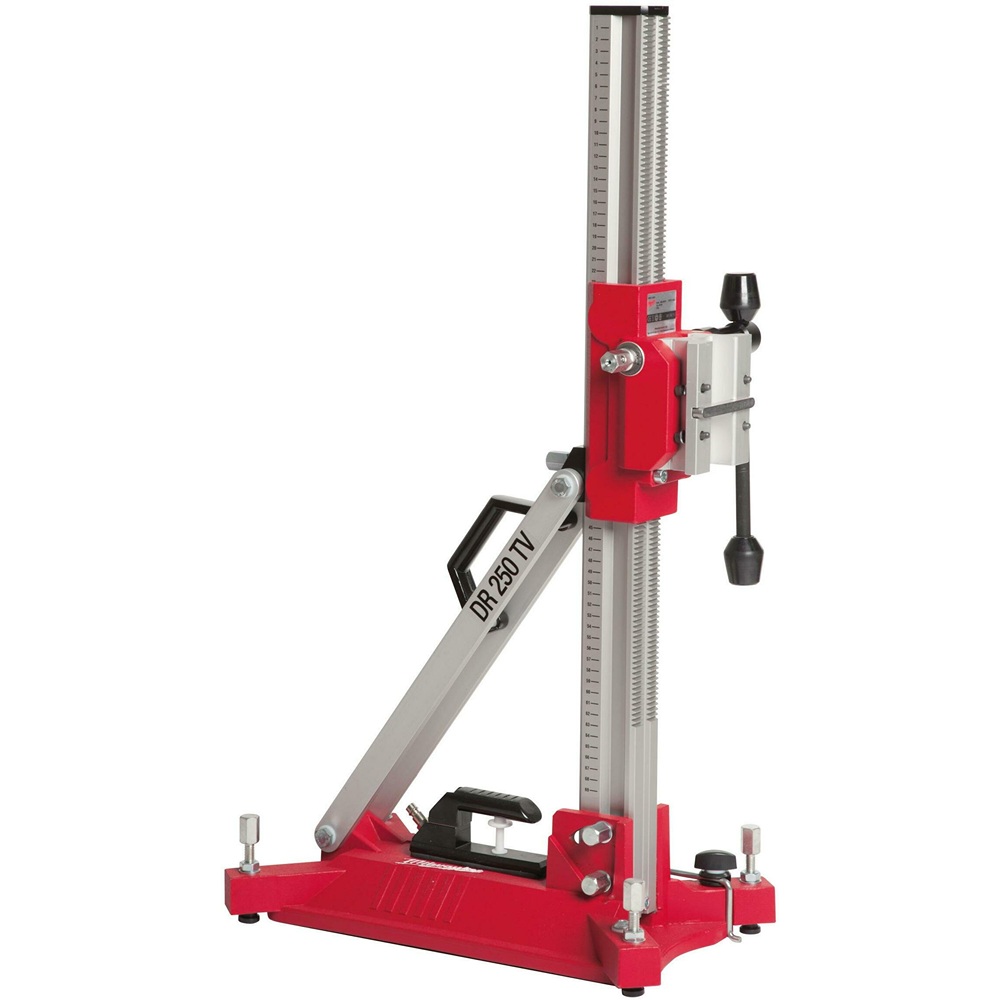

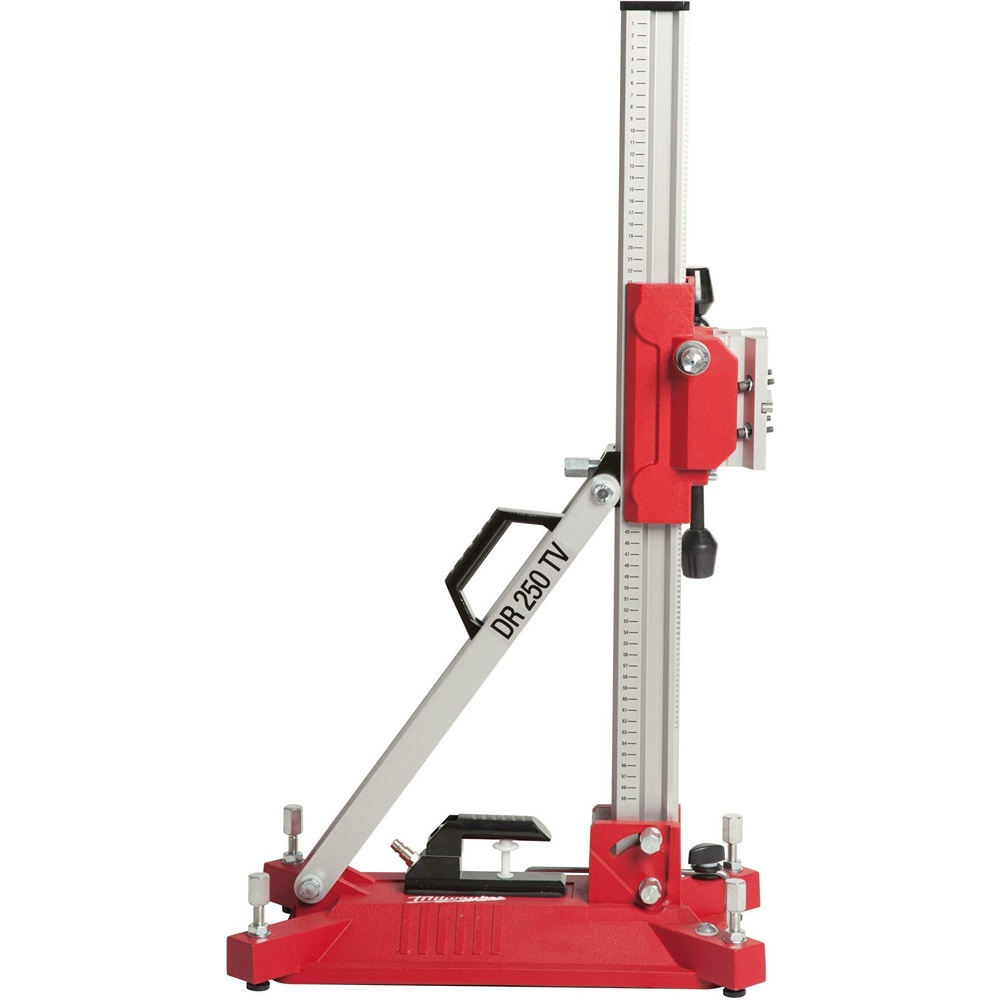

Milwaukee DR 250 TV Diamond Drill Stand
Product Code: 4933400590
Brand: Milwaukee
Diamond drill stand for DCM 2-250 C.
Light weight drilling rig from aluminium.

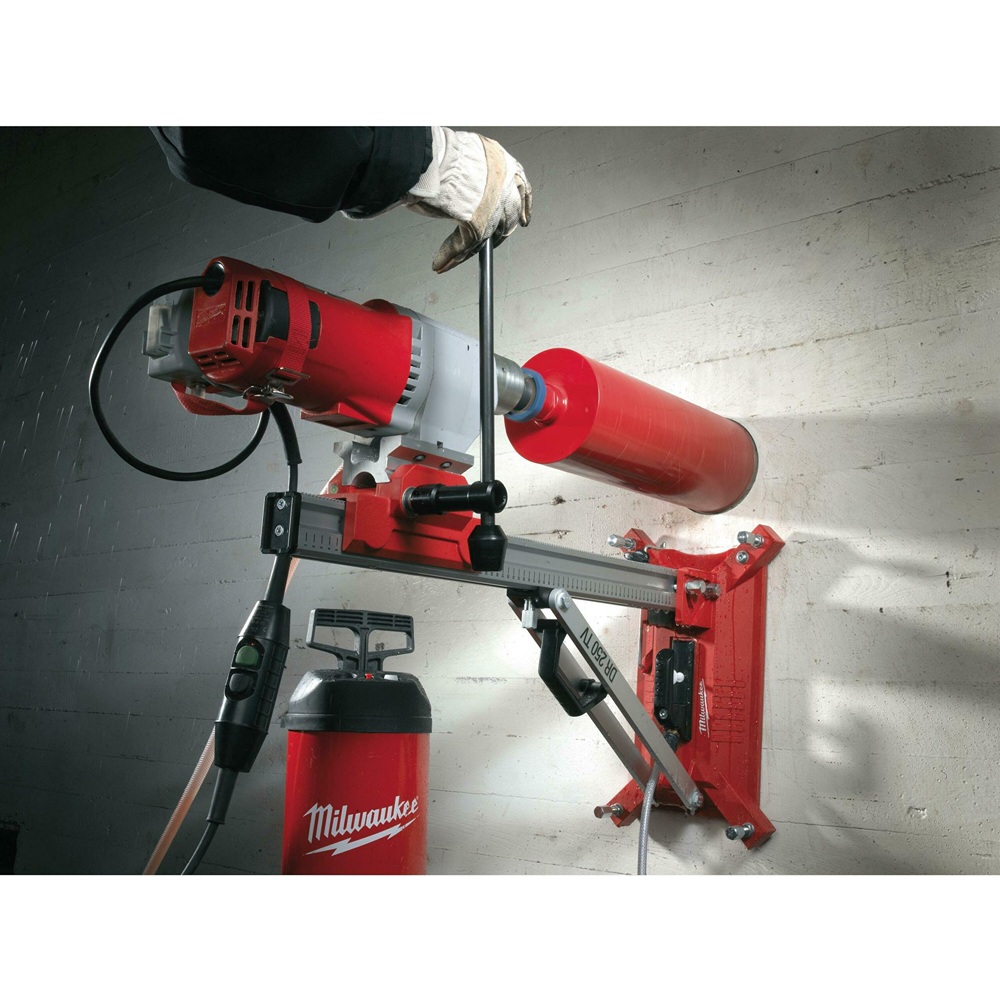

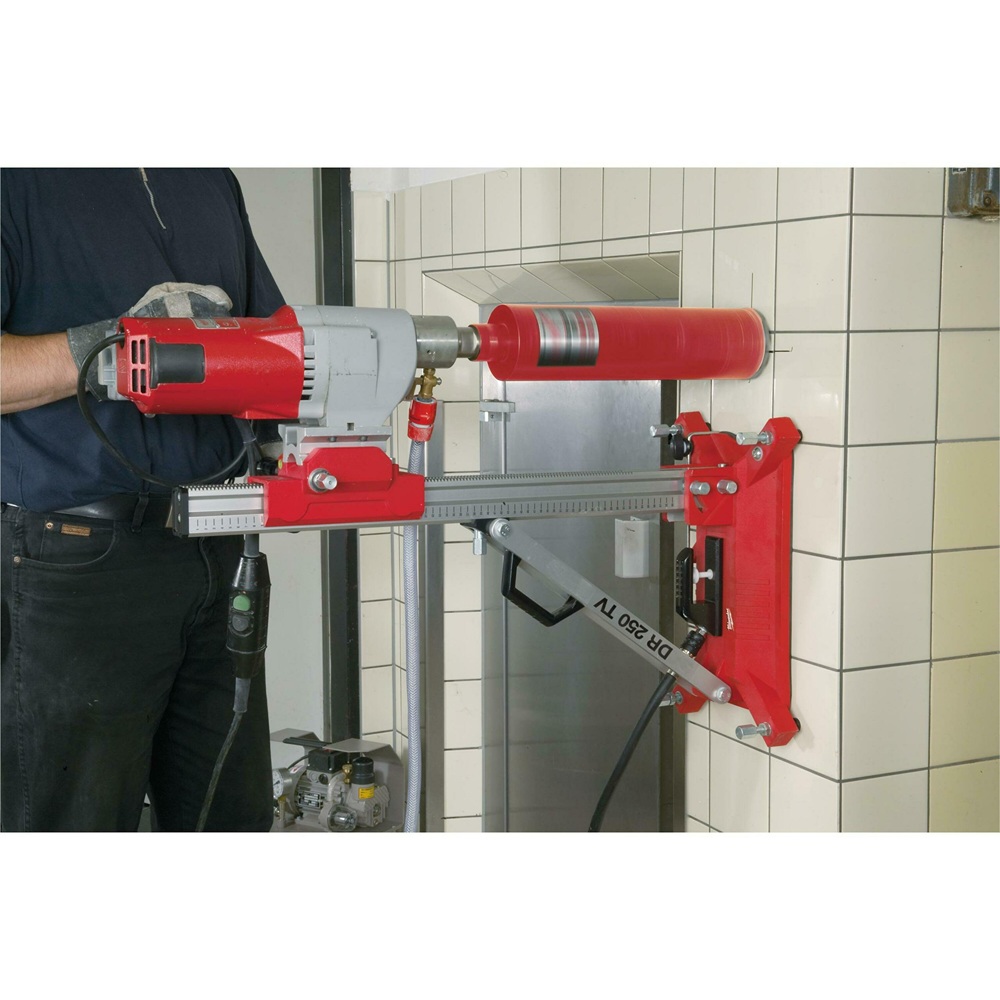

Tilting (0 - 45°).
Quick-connect motor plate.
Integrated vacuum base plate (use with and without vacuum possible).
Fine adjustment of feed speed.
Vertical and horizontal water level.
Drill hole centering device.
Leveling screws.
Feed handle attachable to both sides of rig.
Supplied with " Hex key, 6 mm Hex key, 17x19 wrench, quick-connect motor plate, 4 pcs. M8x25 mm screws, centering device, vacuum rubber seal.
Specifications
Stroke length: 520 mm
Max. drilling diameter: 250 mm
Height: 834 mm
Supplied in: No kit box or bag included
Height (mm): 834
Stroke length (mm): 520
Footplate size (mm): 276 x 467
Max. drill bit Ø with drill chucks (mm): 250
Mitre angle capacity (°): 45
Weight (kg): 10.0
