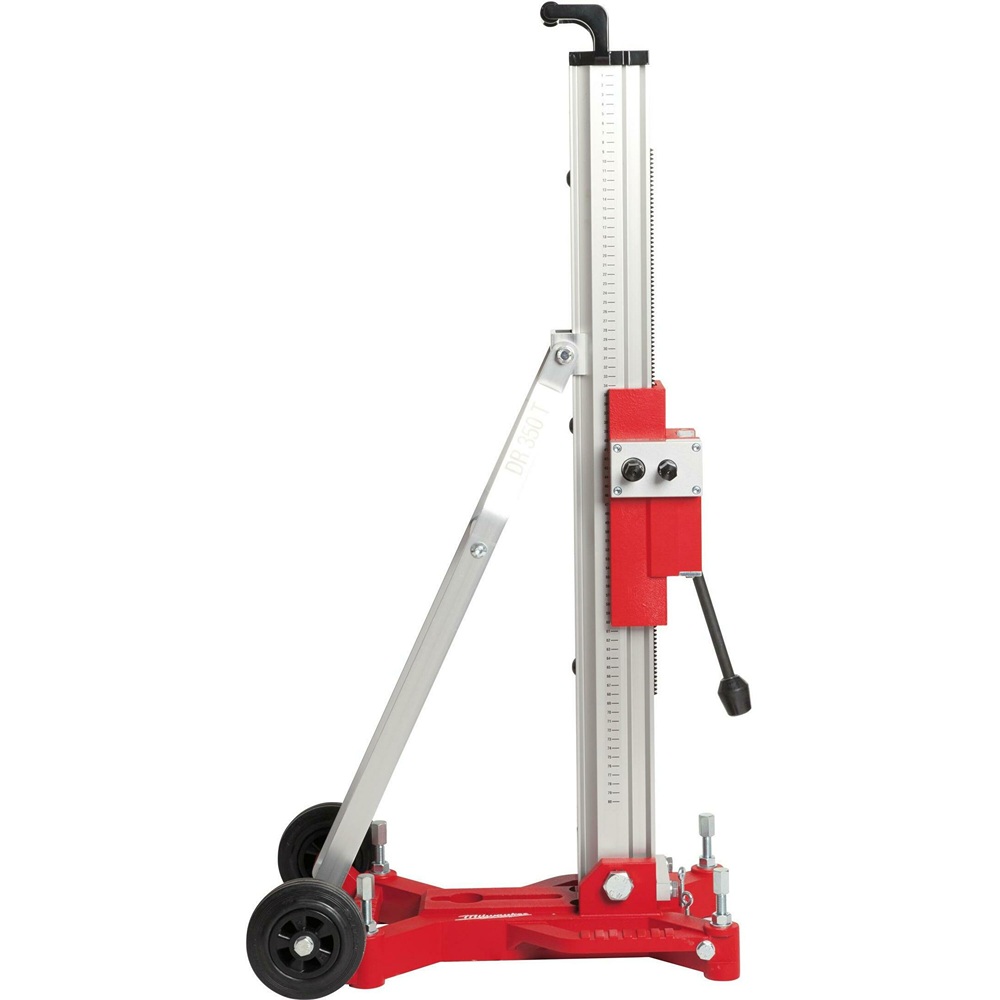

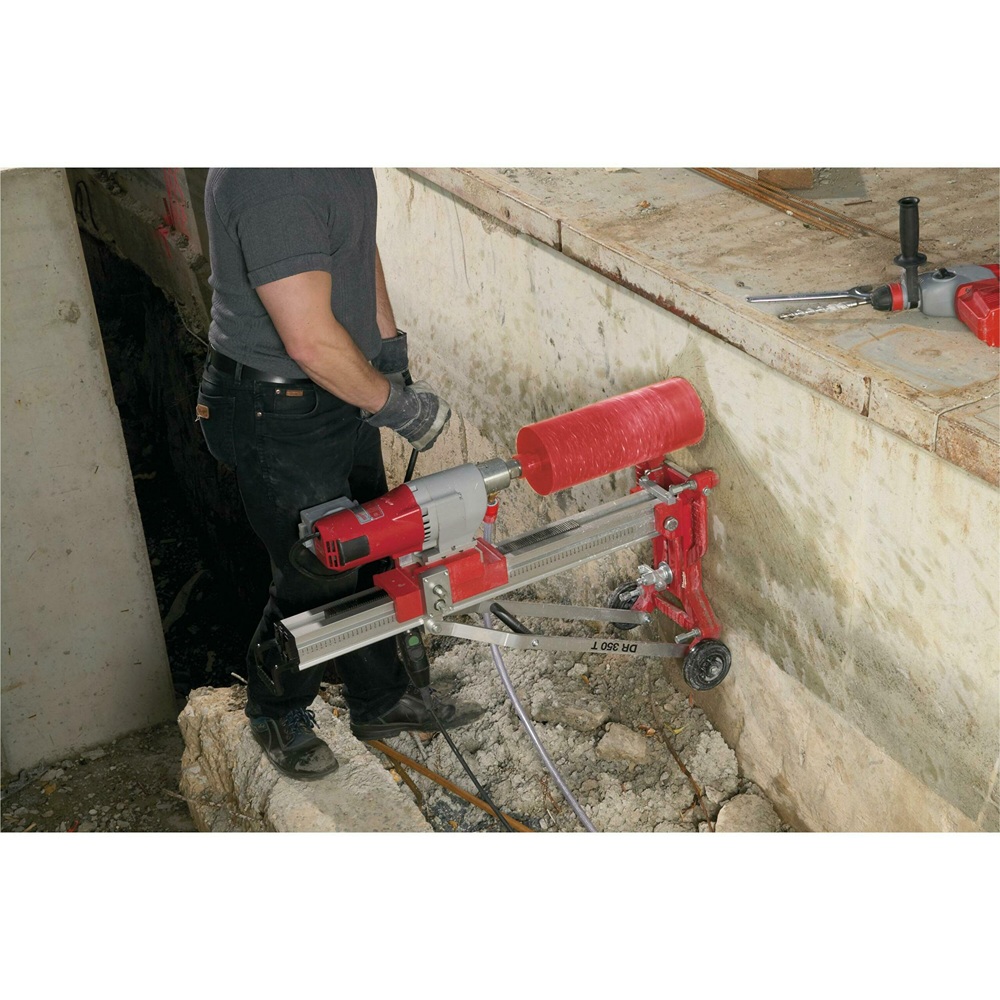

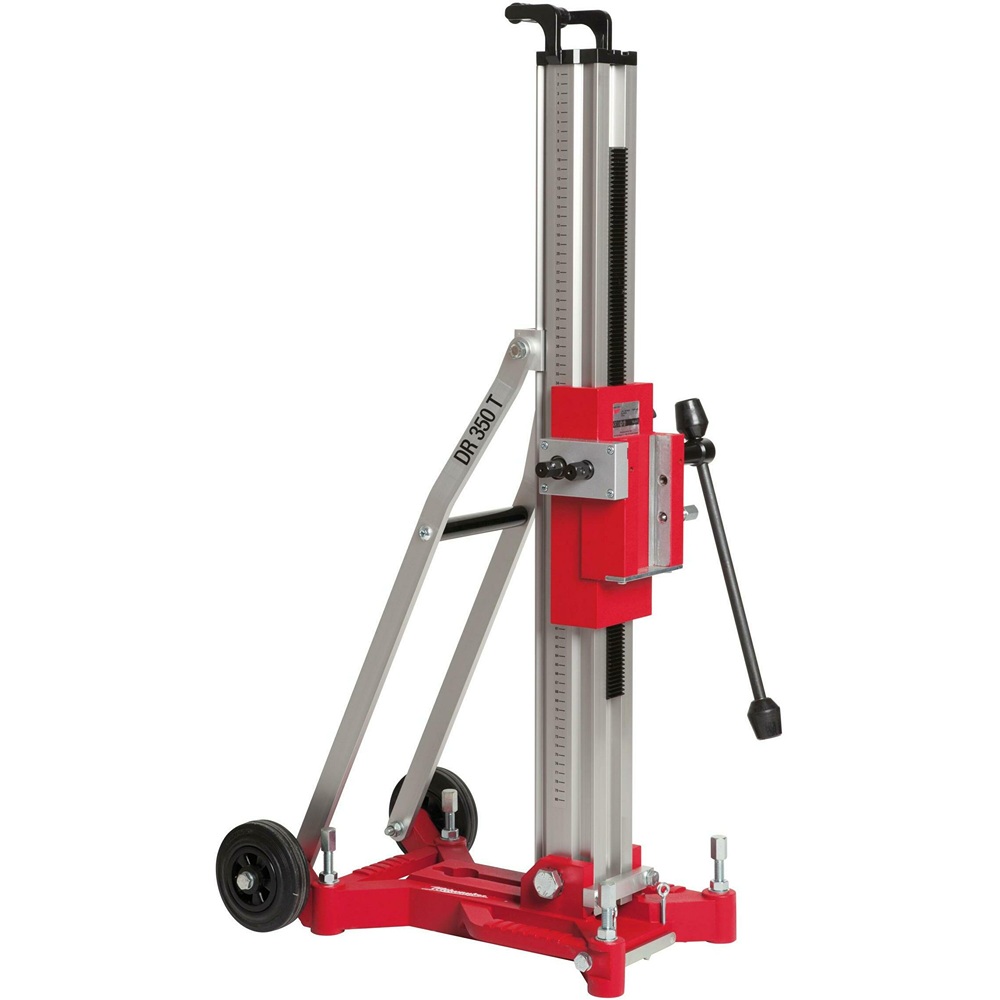

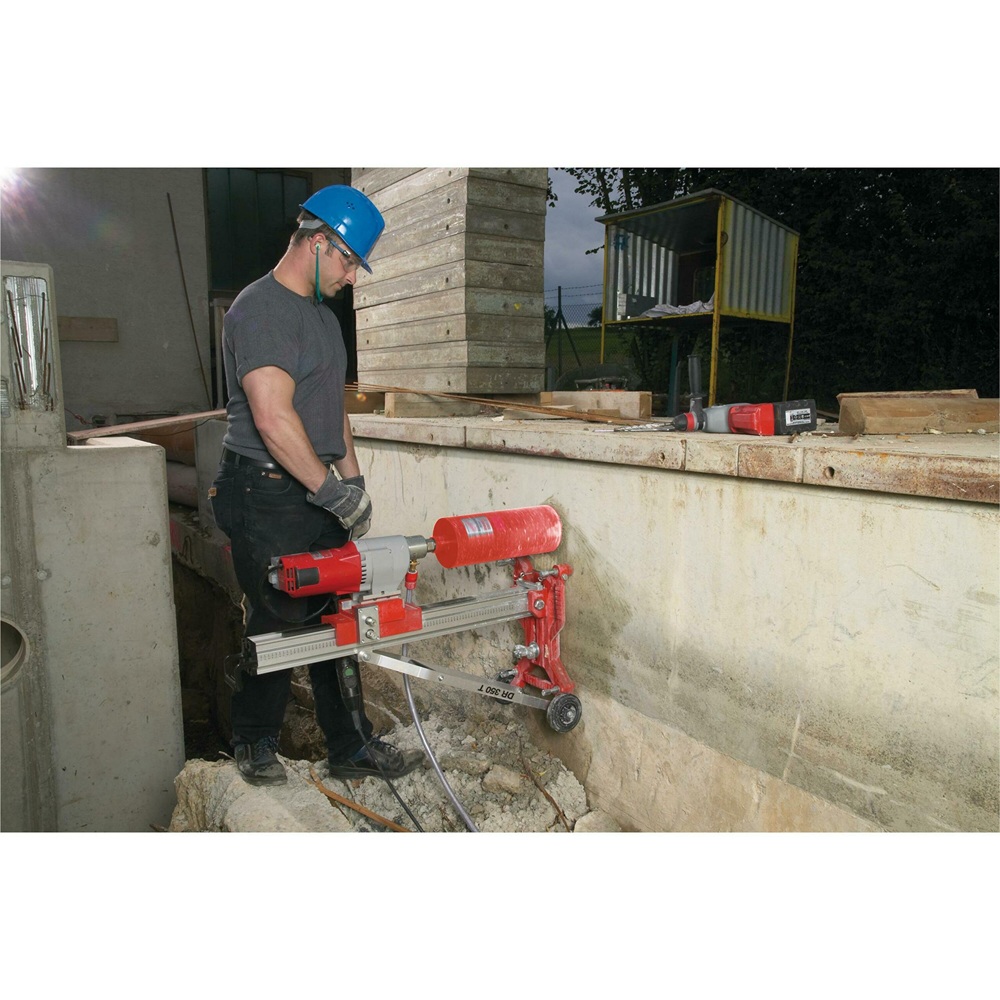

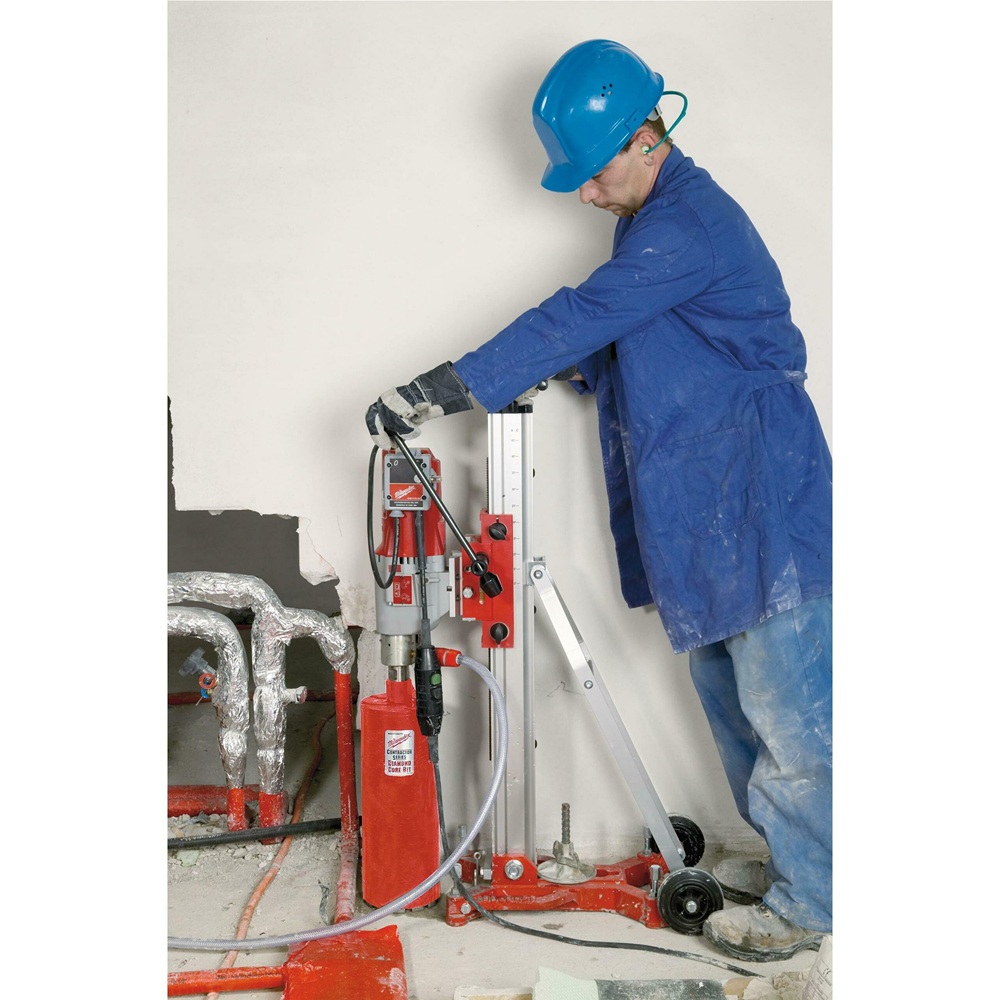

Milwaukee DR 350 T Diamond Drill Stand
Product Code: 4933400600
Brand: Milwaukee
Diamond drill stand for DCM 2-350 C.
Light weight drilling rig from aluminium.
Tilting (0 - 45°).

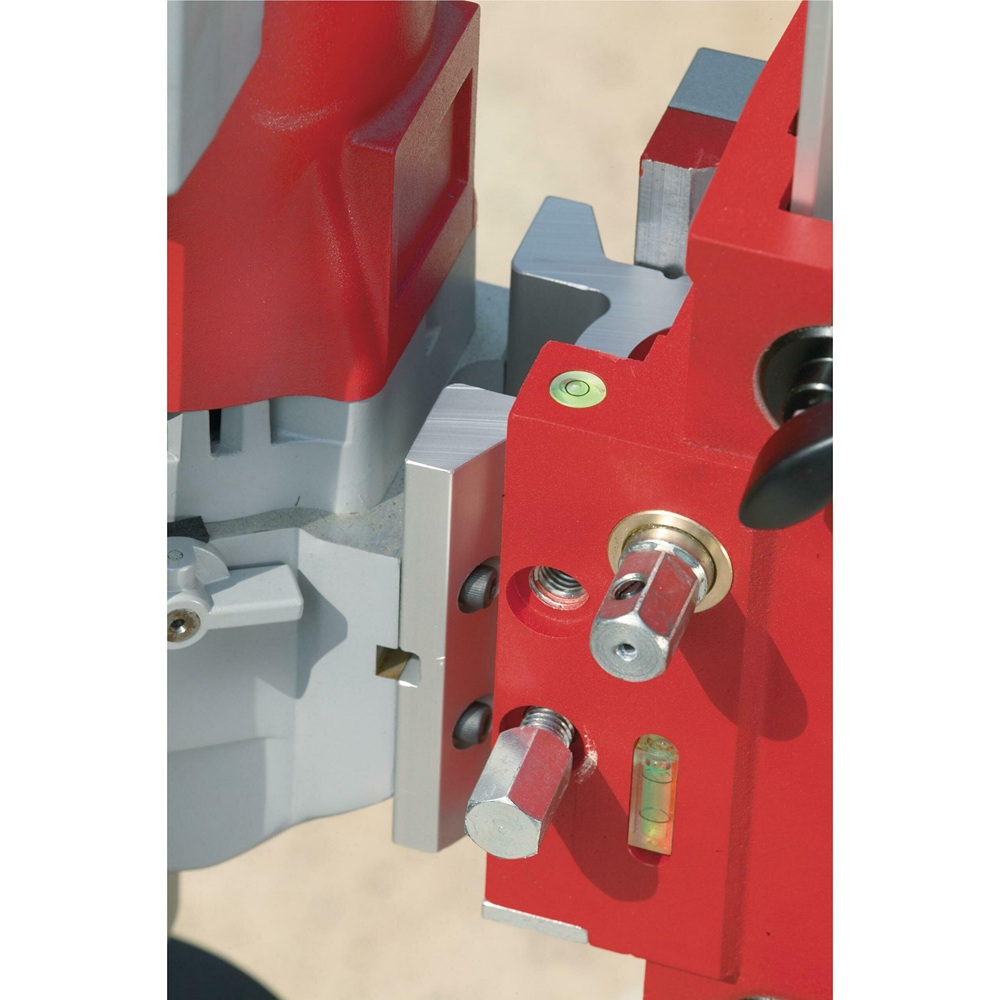

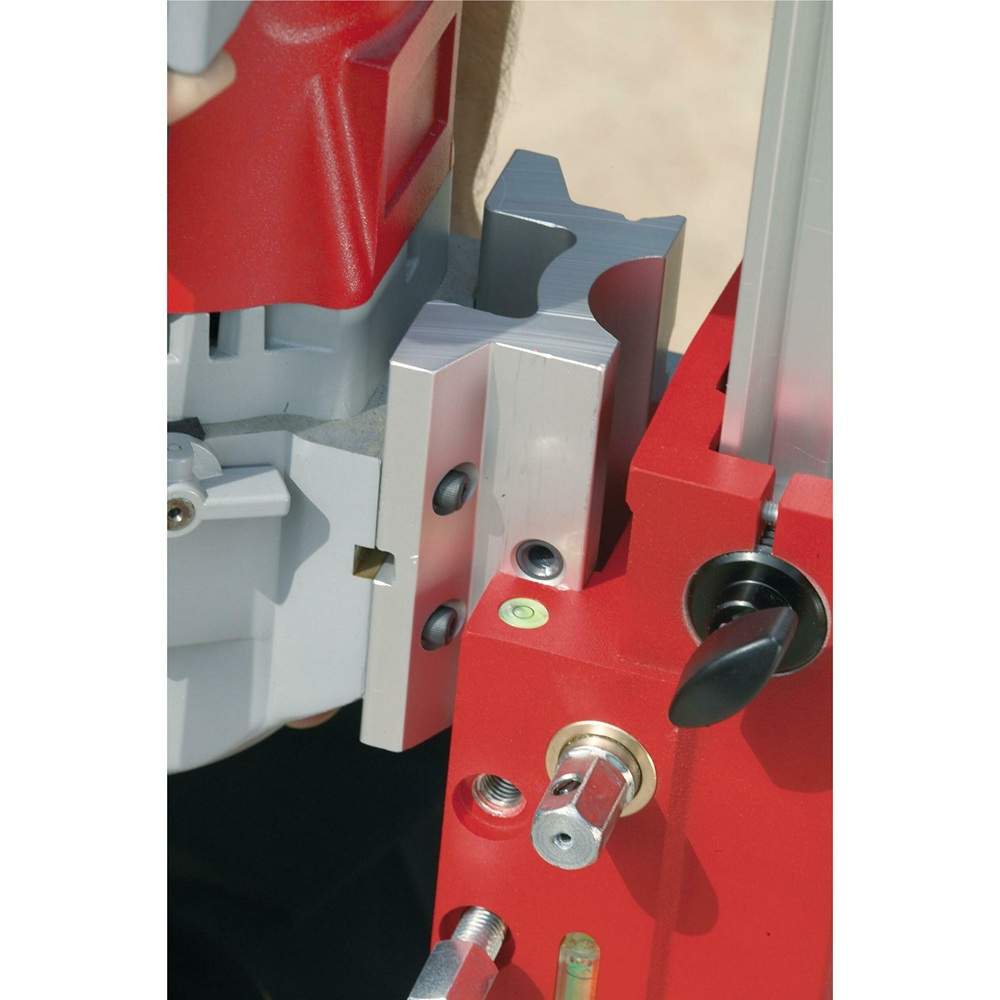

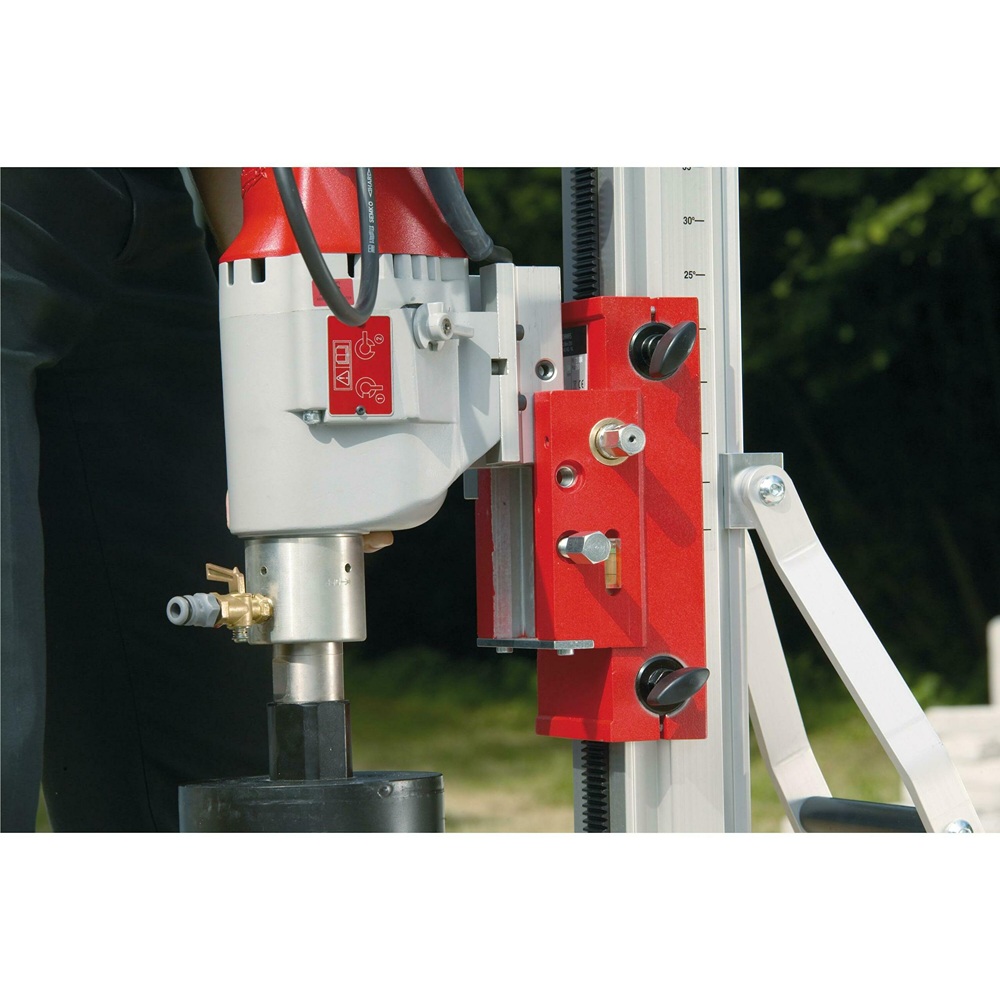

Quick-connect motor plate.
Fine adjustment of feed speed.
Vertical and horizontal water level.
Drill hole centering device.
Leveling screws.
Feed handle attachable to both sides of rig.
Transportable handle & wheels.
Supplied with " Hex key, 6 mm Hex key, 17x19 wrench, quick-connect motor plate, 4 pcs. M8x25 mm screws, centering device.
Specifications
Stroke length: 350 mm
Max. drilling diameter: 610 mm
Height: 1042 mm
Weight: 19,5 kg
Supplied in: No kit box or bag included
Height (mm): 1042
Stroke length (mm): 610
Footplate size (mm): 391 x 523
Max. drill bit Ø with drill chucks (mm): 350
Mitre angle capacity (°): 45
Weight (kg): 19.5
