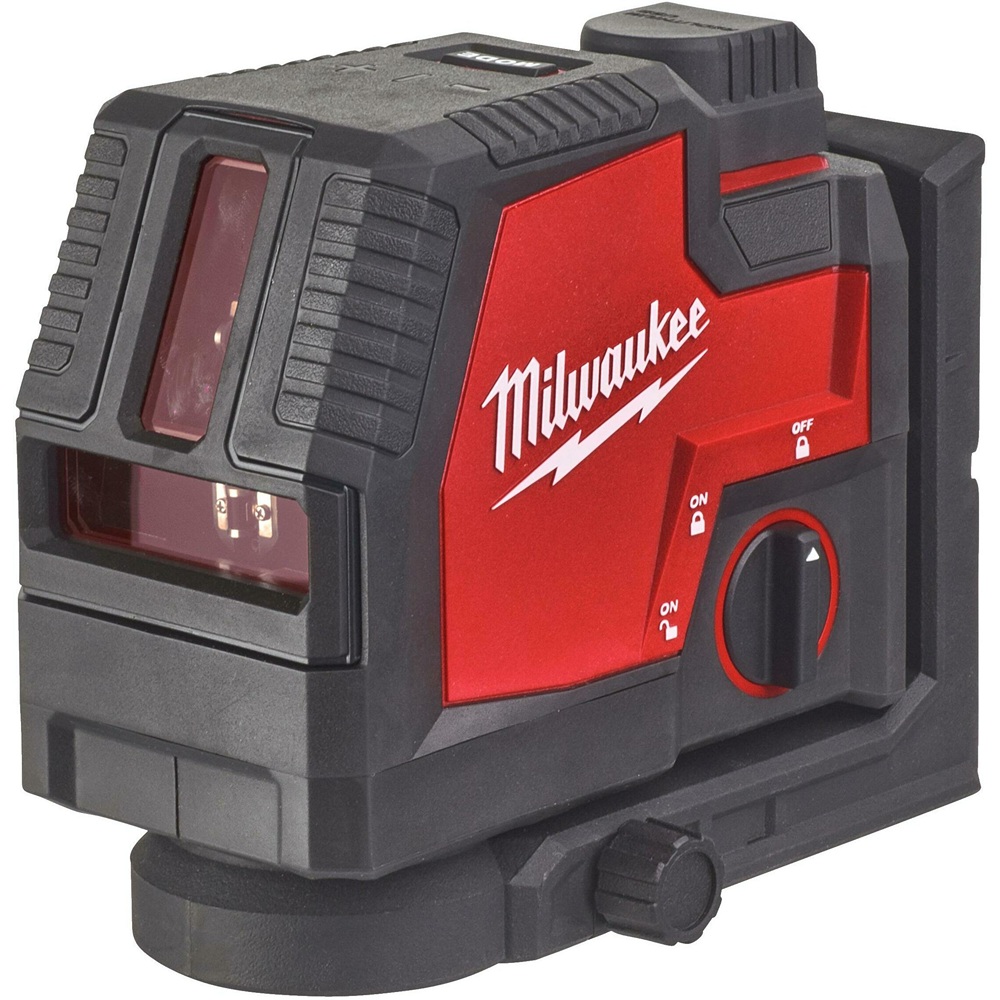

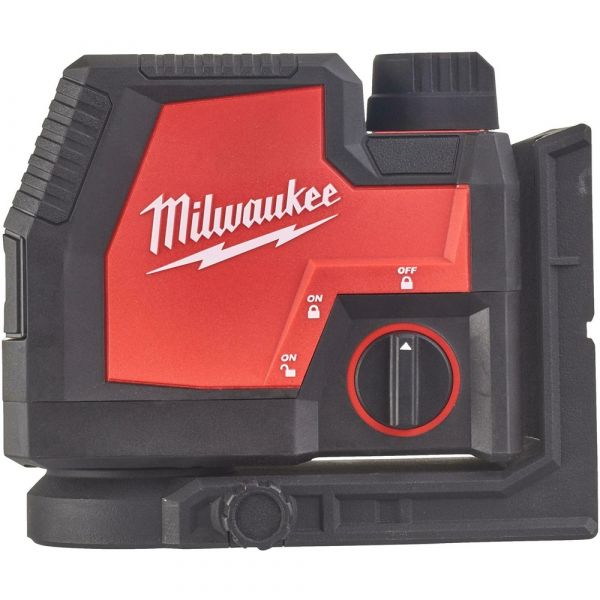

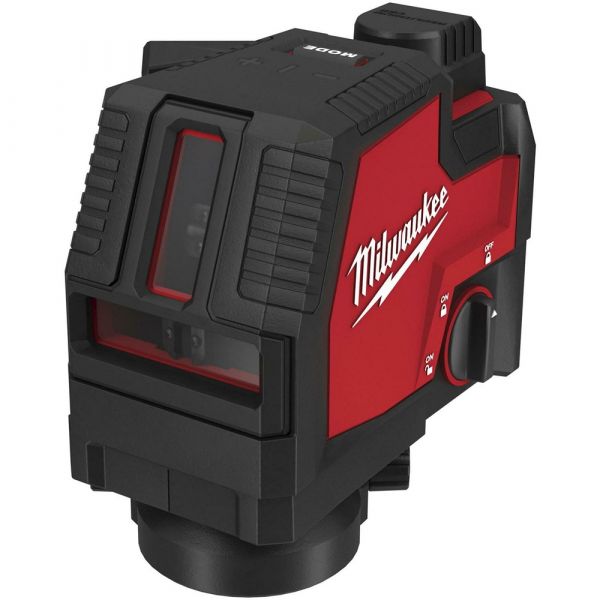

Milwaukee L4 CLL-301C Cross Line Laser Green USB Rechargeable
Product Code: 4933478098
Brand: Milwaukee

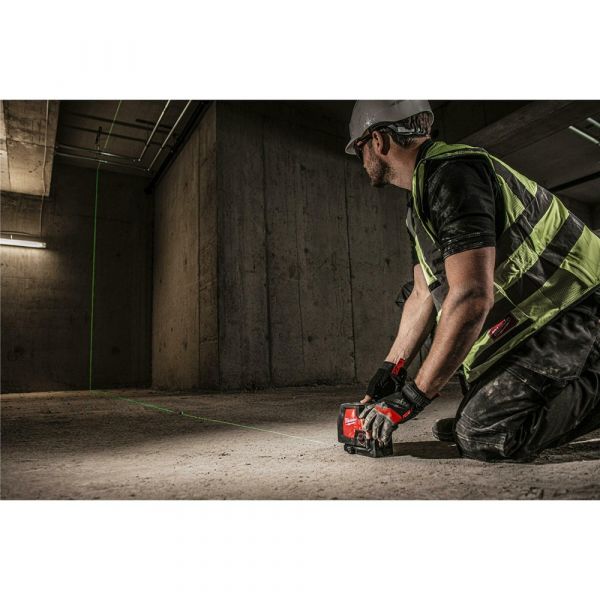

REDLITHIUM USB rechargeable green cross line laser provides an all-in-one functionality with horizontal levelling and vertical alignment.
High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers.
High intensity green beams provide a working range of 30 m and up to 100 m with a detector.
The rechargeable and removable REDLITHIUM USB 3.0 Ah battery provides all day run time of over 8 hours.
1x REDLITHIUM USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery.

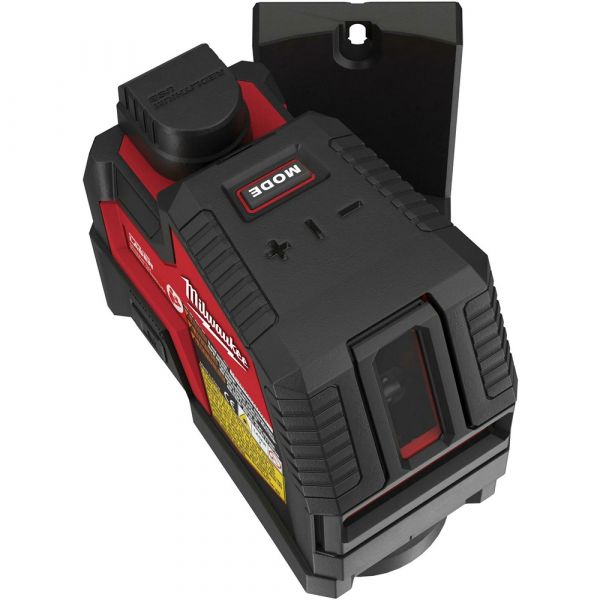

3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

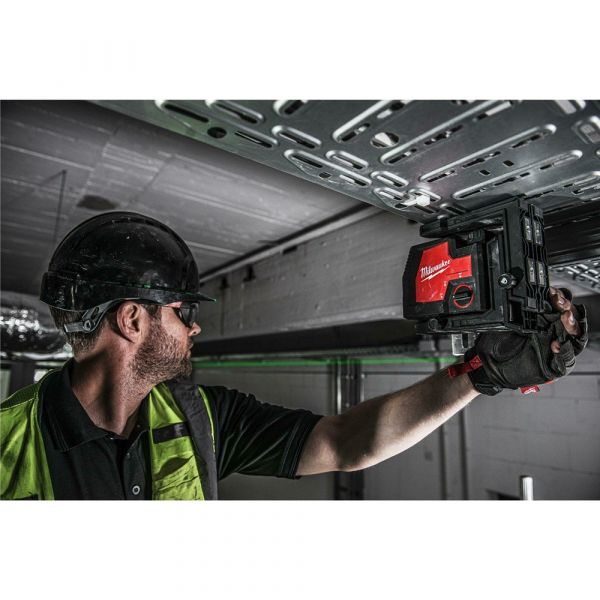

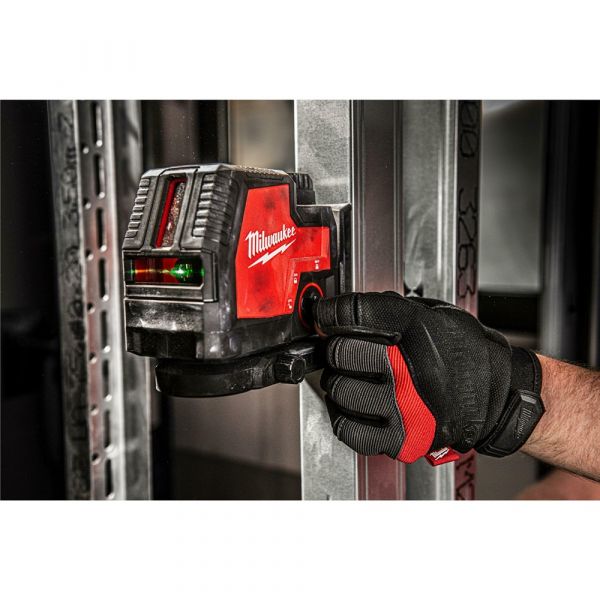

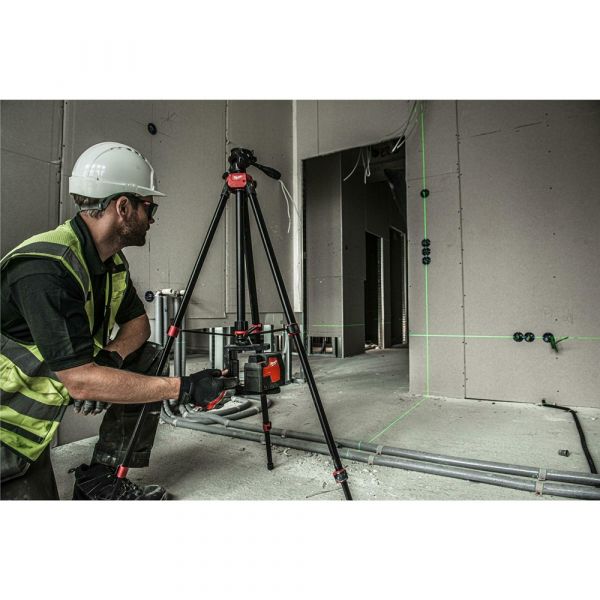

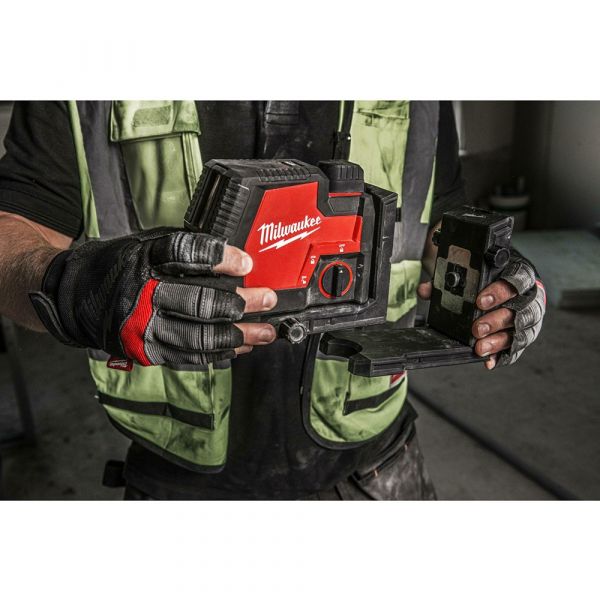

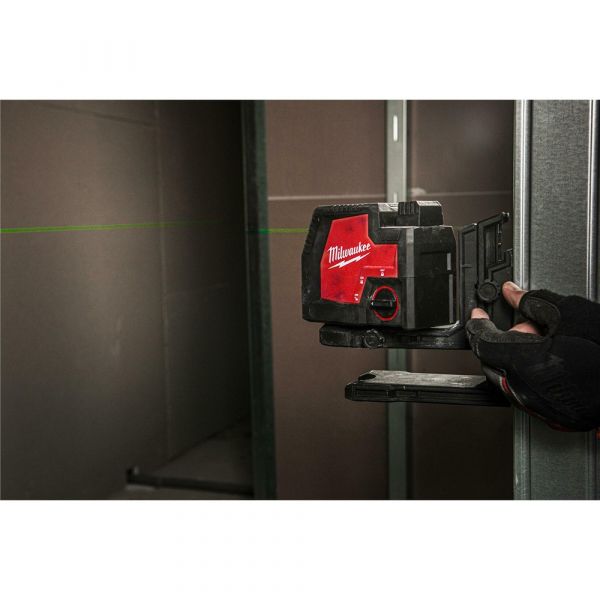

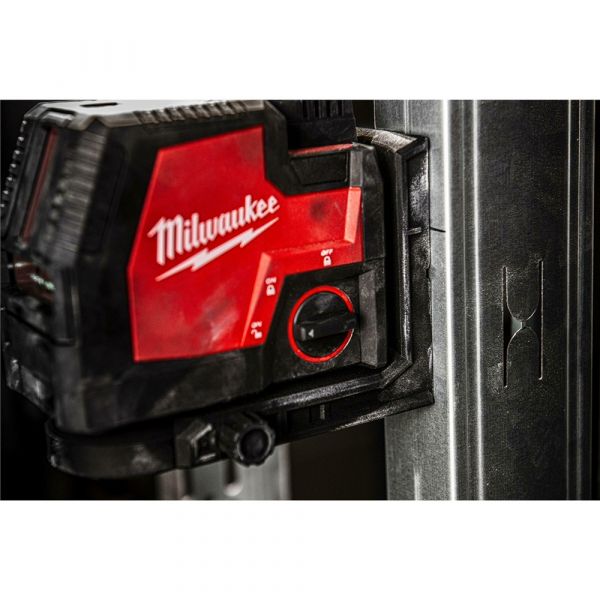

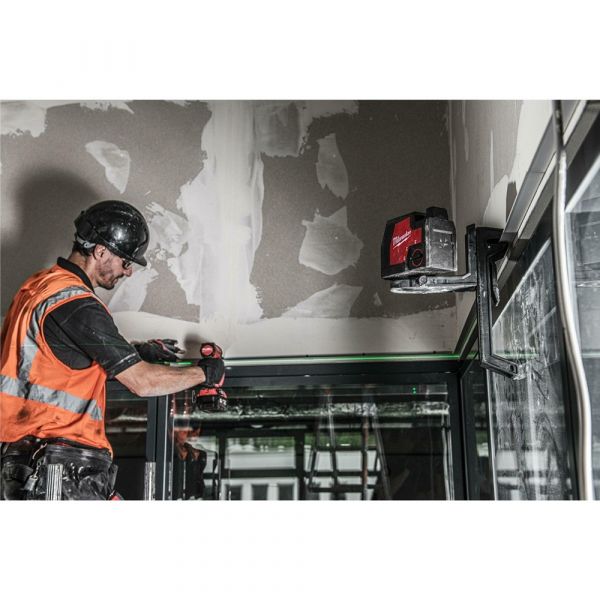

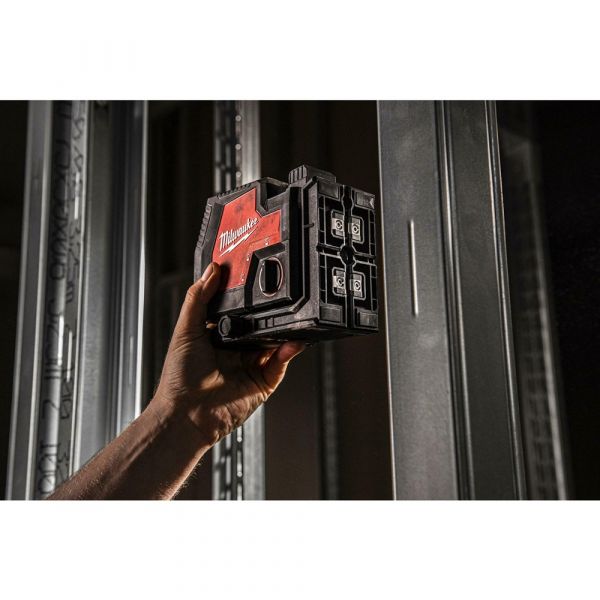

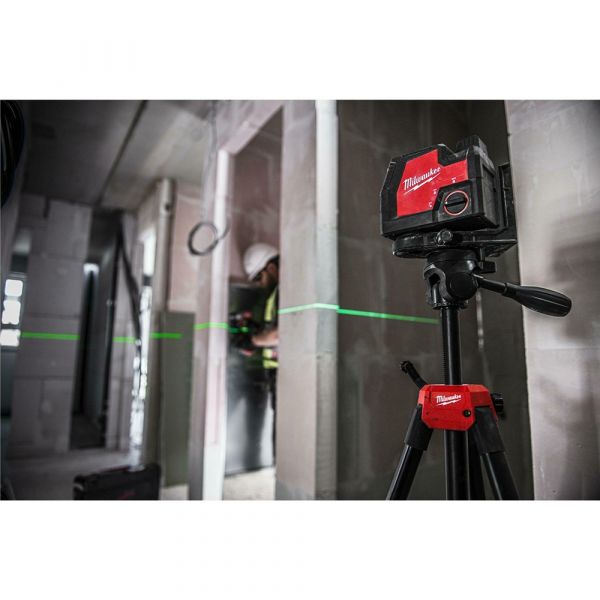

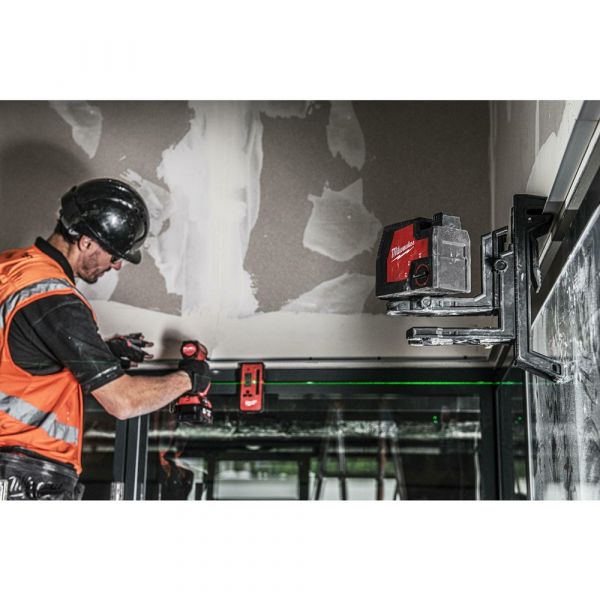

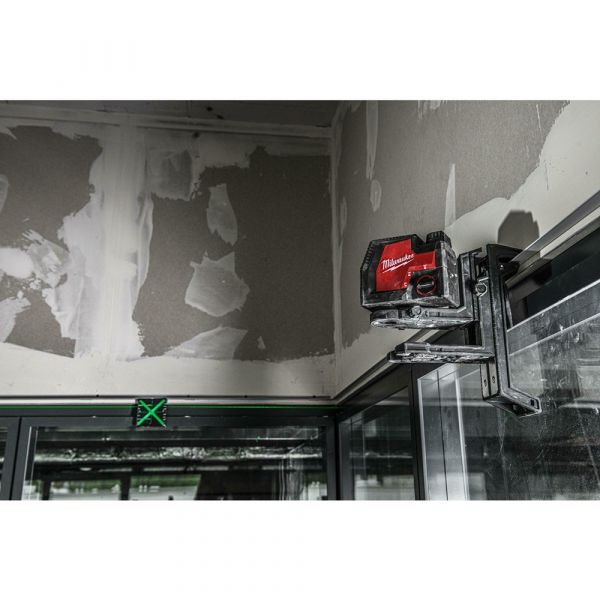

Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod.
The bracket also provides the laser 360° rotation, with an integrated micro control knob for faster point to point alignment.
Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.

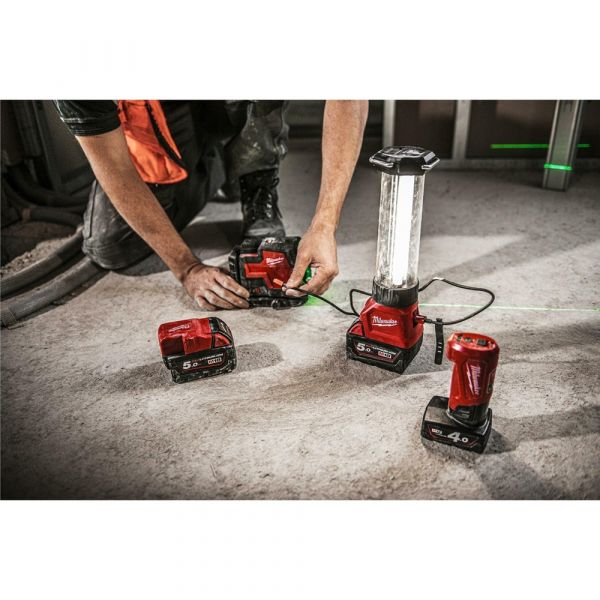

Conveniently charge REDLITHIUM USB battery internally during use with micro-USB cable from USB power source or AC outlet.
Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM USB battery charge.
Includes 1x track clip.

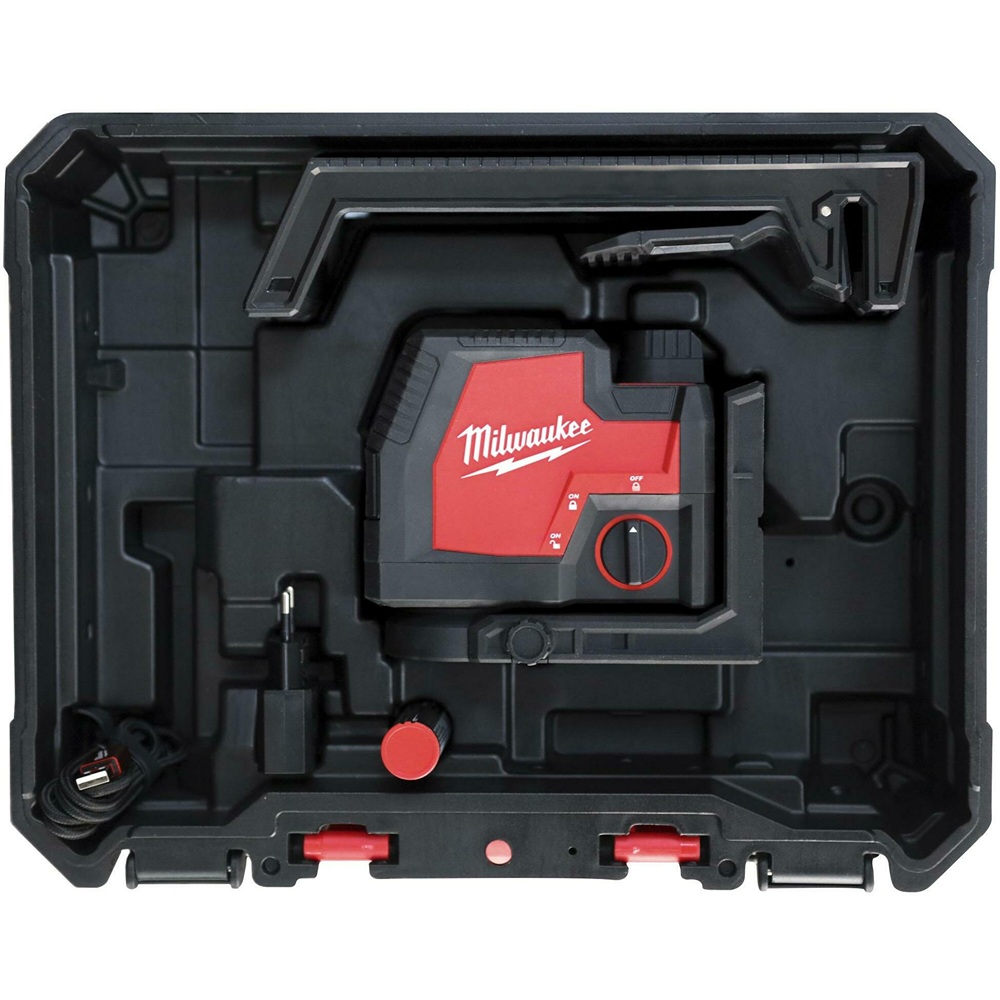

Supplied as standard
1 x L4 B3 Battery pack
USB cable and wall plug
Supplied in: Kitbox
Track clip
Specifications
Laser type: Cross line laser
Max. range with receiver: 100 m
Colour (laser beams): Green
Accuracy: 0,3 mm/m
Supplied in: Case
Weight: 0,86 kg
Max. Range: 30 m
Laser classification: Class 2
Battery capacity (Ah): 3.0
Colour of laser: Green
Accuracy (mm/m): 0.3
Self-levelling range (°): 4
Self-levelling time (sec): 3
Max. operating time with L4 B3 battery (hours): 8
Voltage (V): 4
Operating range visible (m): 30.0
Battery type: Li-ion

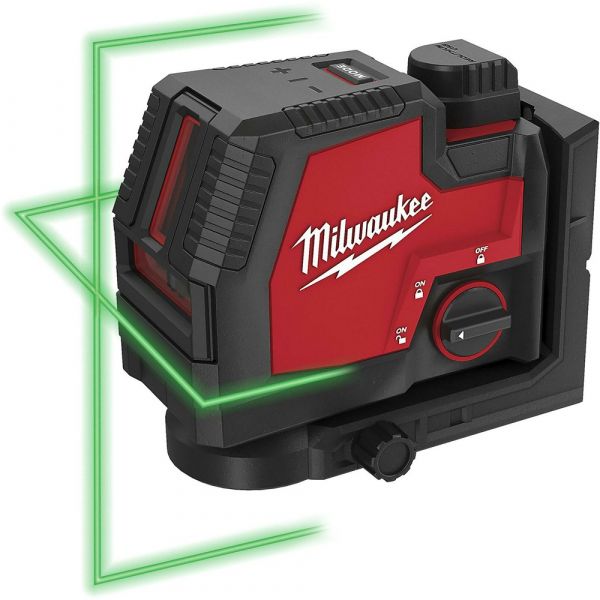

Laser projection: 1x vertical, 1x horizontal
Number of batteries supplied: 1
Compatible laser receiver: LLD50 / LRD100
IP protection class: IP 54
Operating range receiver (m): 50 / 100
