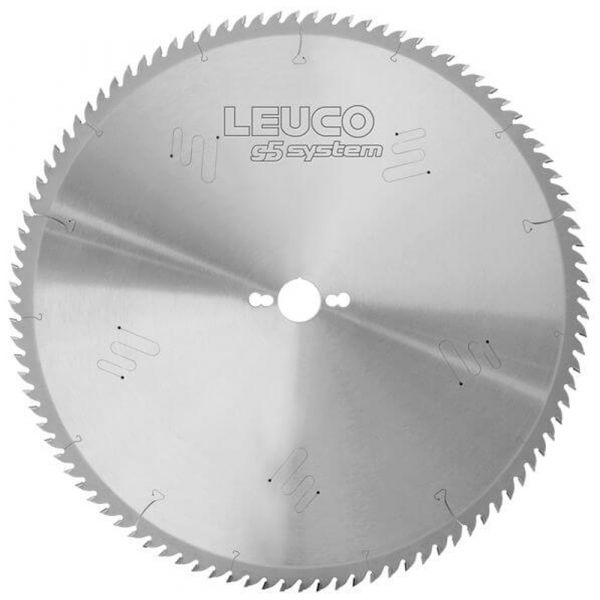

Leuco - Sizing Saw Blades HW "G5" - 300x3.0x30 Z100 G5
Product Code: LE1102380192794
Brand: Leuco
Table Saws
Chop and Miter Saws
For Chip-Free Sizing Cuts As Well As Clipping and Mitre Cuts in Wood-Based Panels, Solid Woods and Plastics.
Design
Tooth Configuration: G5
Cutting Material: HW HL Board 04 plus
Advantages
Excellent cutting quality for cross cuts
Excellent cutting quality thanks to special tooth geometry
Extremely long edge lives
Noise-reduction thanks to laser ornaments
Notes
Pay attention to nmax!!!
NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42
Features

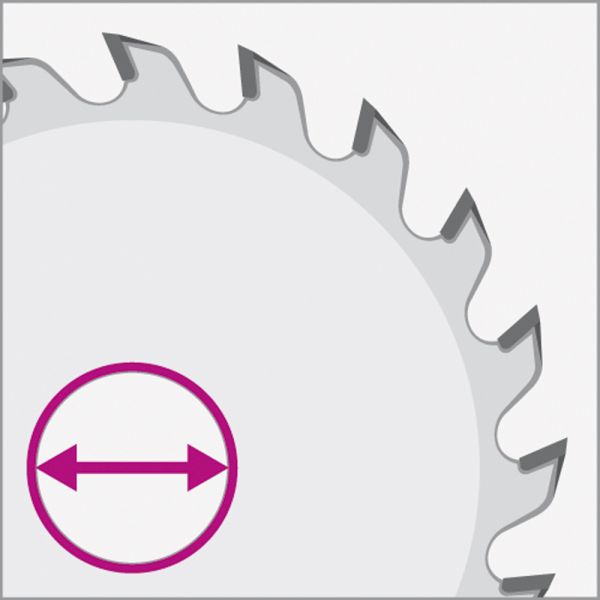

Ø D = Cutting Circle Diameter: 300 [mm]

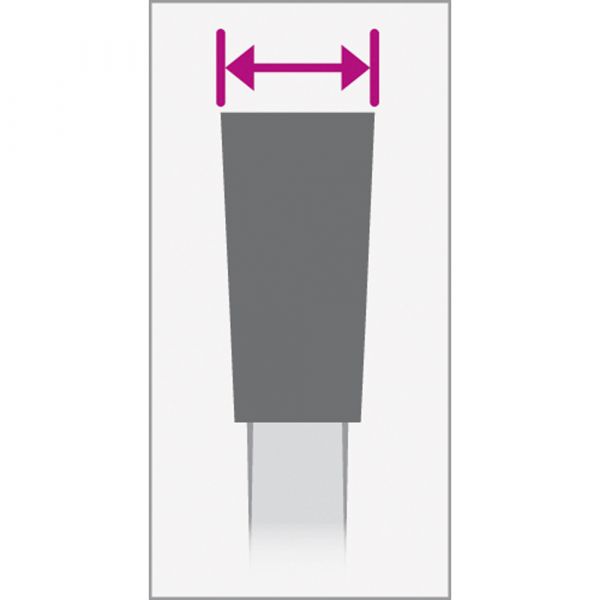

B = Cutting Width: 3,0 [mm]

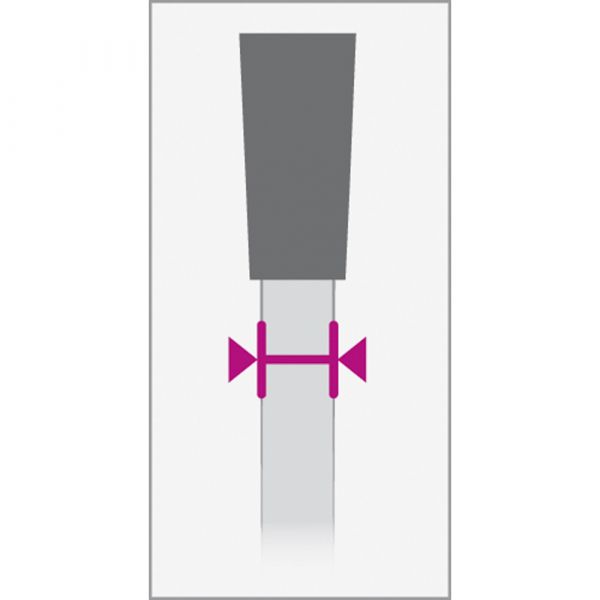

b = Body Thickness: 2.2 [mm]
Ø d = Bore Diameter: 30 [mm]

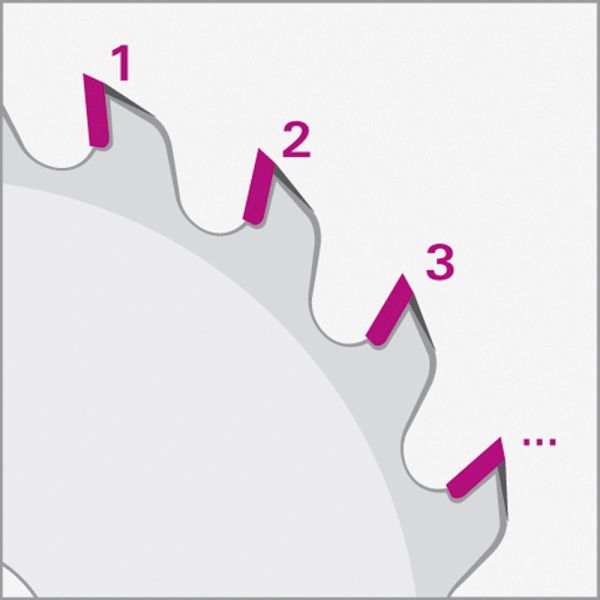

Z = No. of Teeth: 100

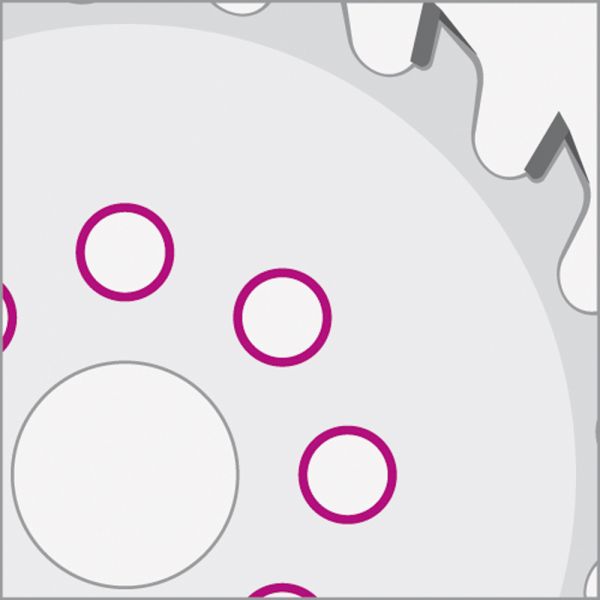

NL = Pin Holes: 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42

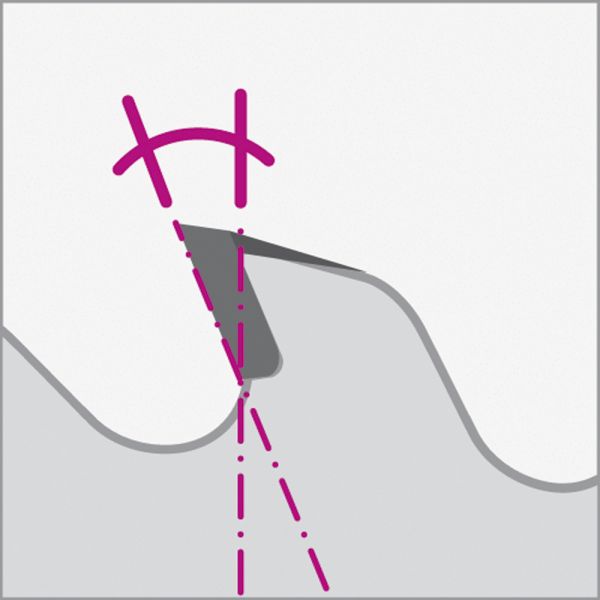

Hook Angle = Hook Angle: 15 [°]
Shear∡ = Shear Angle: 15 [°]
Tooth Geometry = Tooth Configuration: G5
nmax = Maximum RPM: 5,090 [min-1]
LEUCODUR = Cutting Material: HL Board 04 plus
