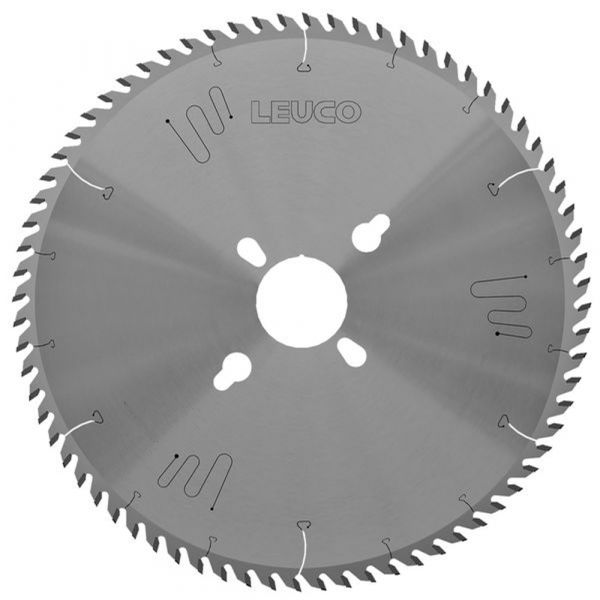

Leuco - Panel Sizing Saw Blades HW - Q-Cut "G6" - Sizing Saw Panel 350x4.4x60 Z72
Product Code: LE1104248193148
Brand: Leuco
Vibration and Noise Damping Ornaments.
Additional Expansion Slots.

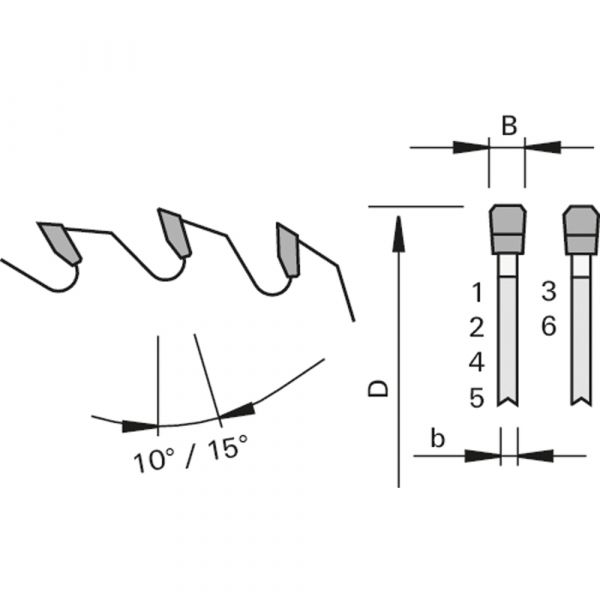

Up To Ød=370, 10 Degree Hook Angle.
From Ød=380, 15 Degree Hook Angle.
Tooth Configuration: G6
Cutting Material: Hw Hl Board 04 Plus
Machine / Application
Panel Sizing Saws.
For Finish Cuts in Veneered, Foiled or Melamine-Laminated Panels, in Single Sheets or in Stacks.
Advantages
For highest performance demands.
Impressive cutting quality thanks to exact and precise cuts.
Reduced cutting pressure and optimized cutting geometry G6.
Extremely low-noise and smooth running thanks to reinforced body and vibration and noise damping ornaments.
Clearly increased edge life thanks to improved HW grade.
Notes
Projection: Min 20 - 25 Mm
NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42
NL**- Combi5 = 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120
NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

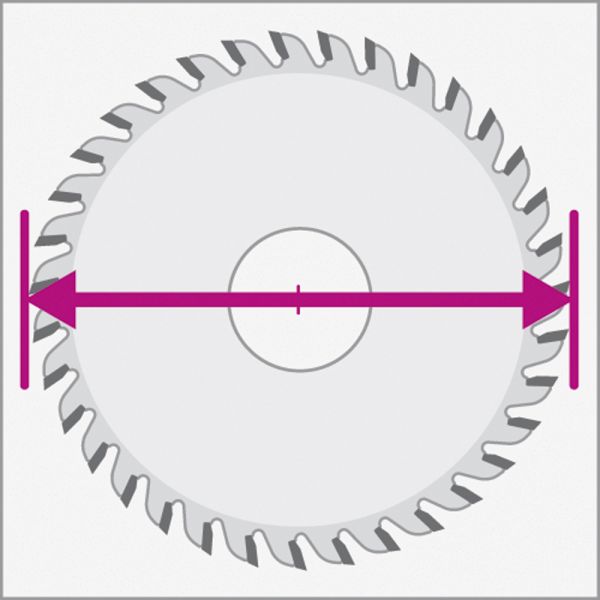

Ø D = Cutting Circle Diameter: 350 [mm]

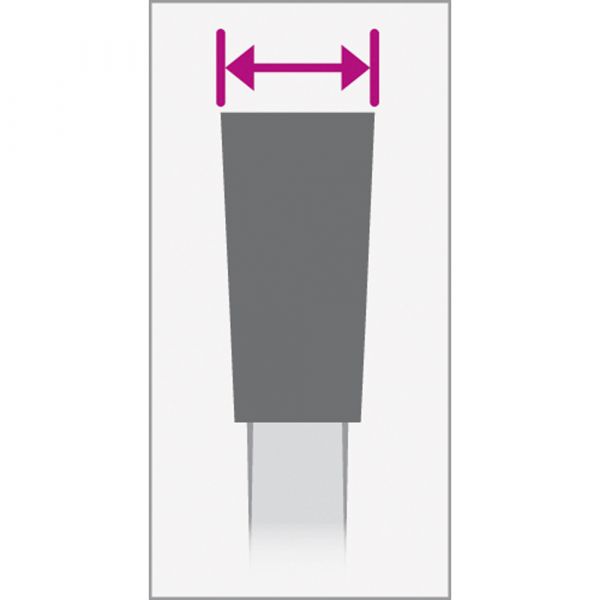

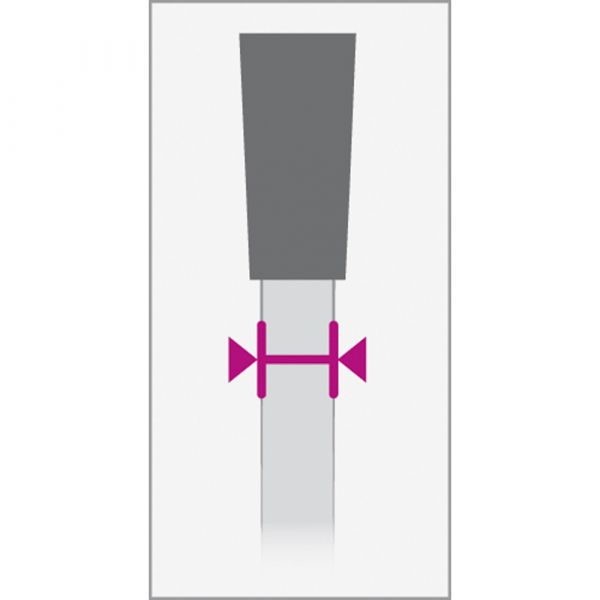

B = Cutting Width: 4,4 [mm] b = Body Thickness: 3.3 [mm]

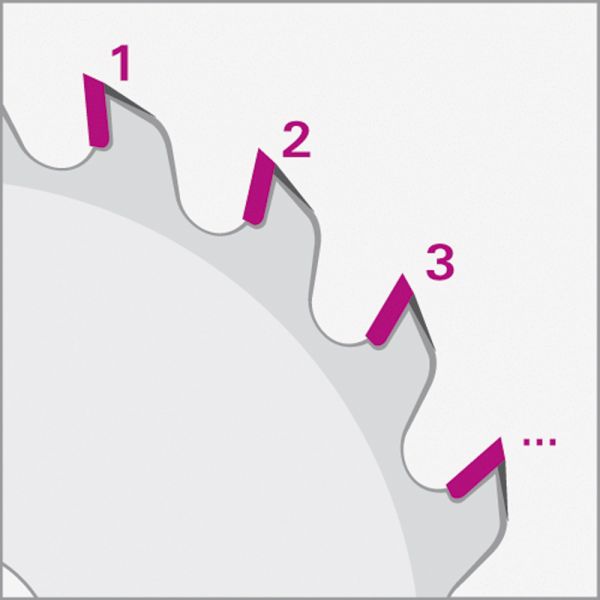

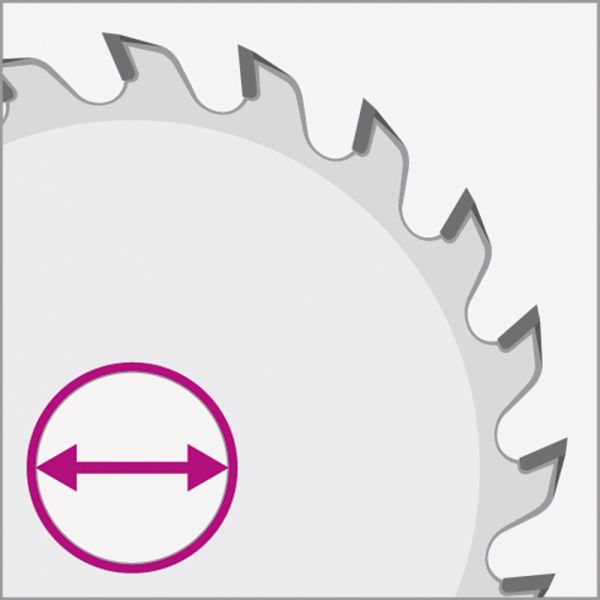

Ø d = Bore Diameter: 60 [mm] Z = No. of Teeth: 72

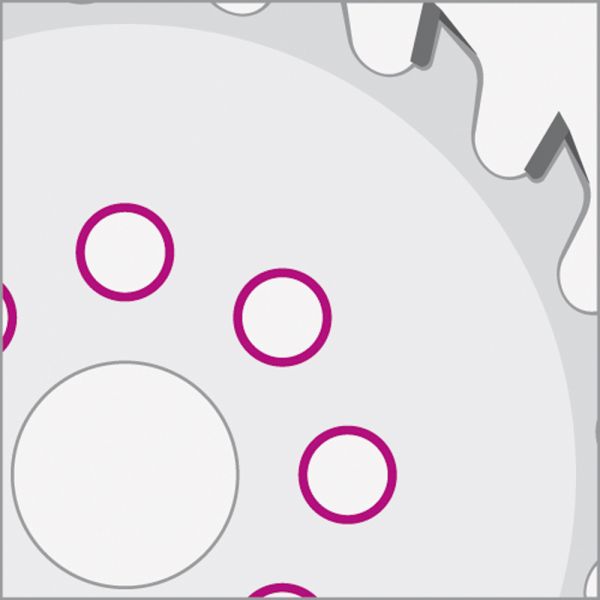

NL = Pin Holes: 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

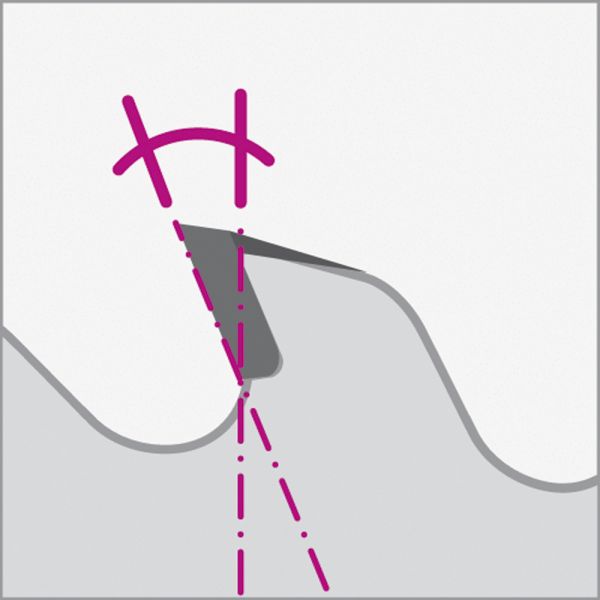

Hook Angle = Hook Angle: 10 [°]
Tooth Geometry = Tooth Configuration: G6
LEUCODUR = Cutting Material: HL Board 04 Plus
Machine/Type: Homag (Holzma) 72, HPP 350
