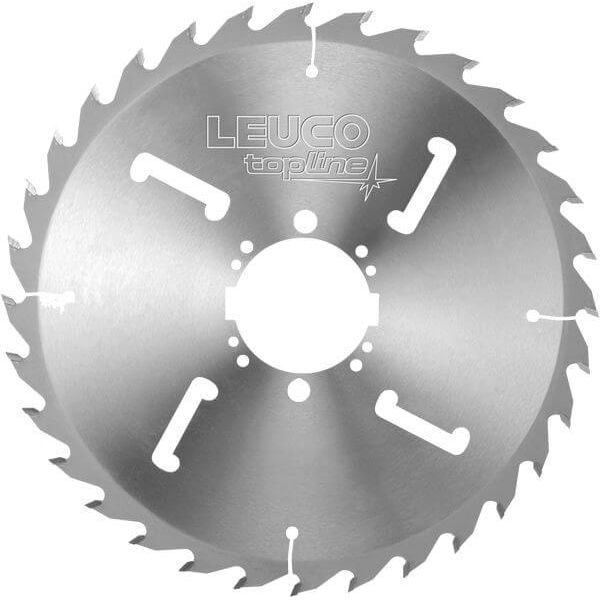

Leuco - Gang-Rip Saw Blades Hw With Cooling Slots "F"
Product Code: LE1101310189276
Brand: Leuco
MACHINE / APPLICATION
Molders
Gang-rip saw with one or two shafts (e.g. Raimann, Paul, Costa,..)
For precise ripping cuts in dry and planed hard woods
DESIGN
tooth configuration: flat "F"
cutting material: HW HL Board 10
ADVANTAGES
Special design and tungsten carbide grade for highest cutting quality and very long edge lives.
NOTES
For inquiries / orders enclose specification sheet (see appendix).
Features:

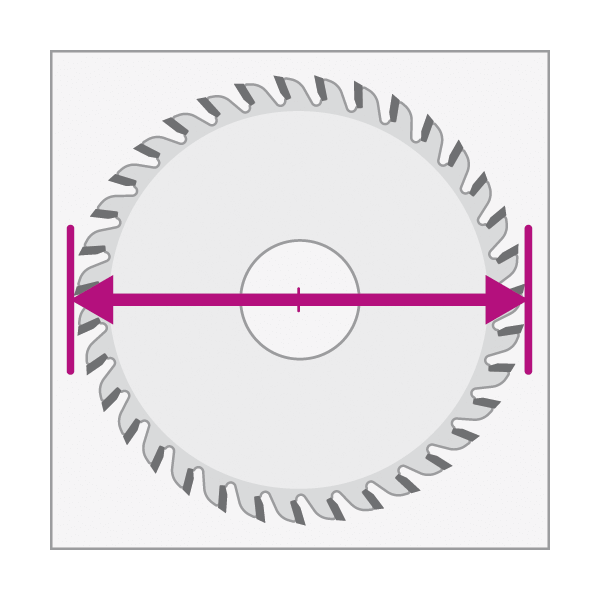

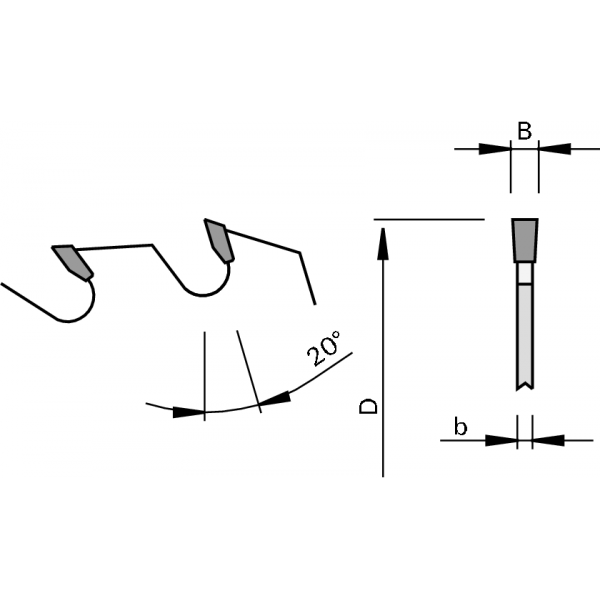

Ø D = Cutting circle diameter 300 [mm]

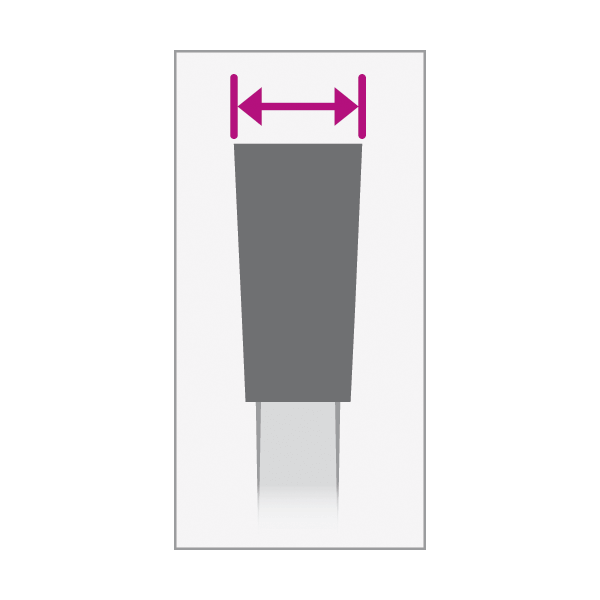

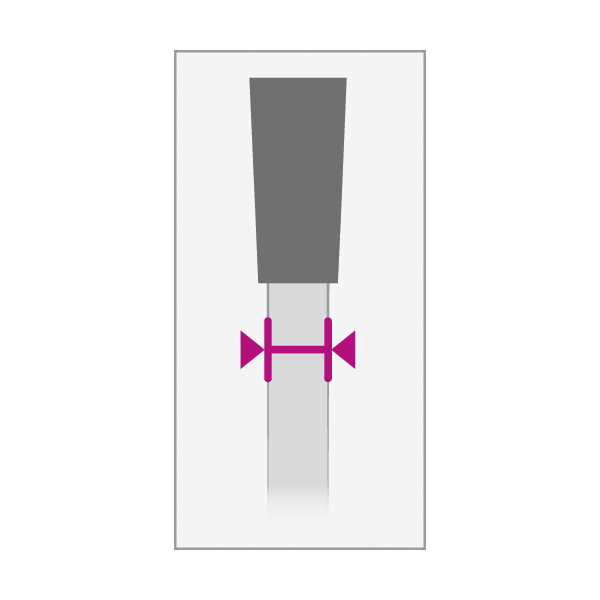

B = Cutting width 3,4 [mm]
b = Body thickness 2.2 [mm]

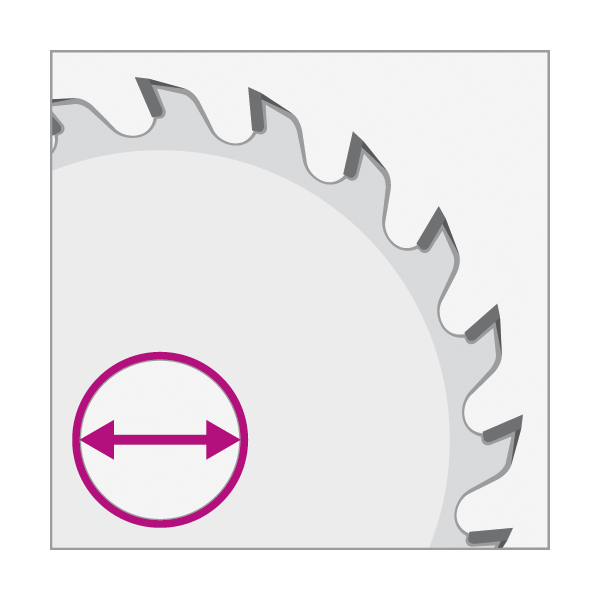

Ø d = Bore diameter 80 [mm]
Ø dmax = Maximum bore diameter 100 [mm]

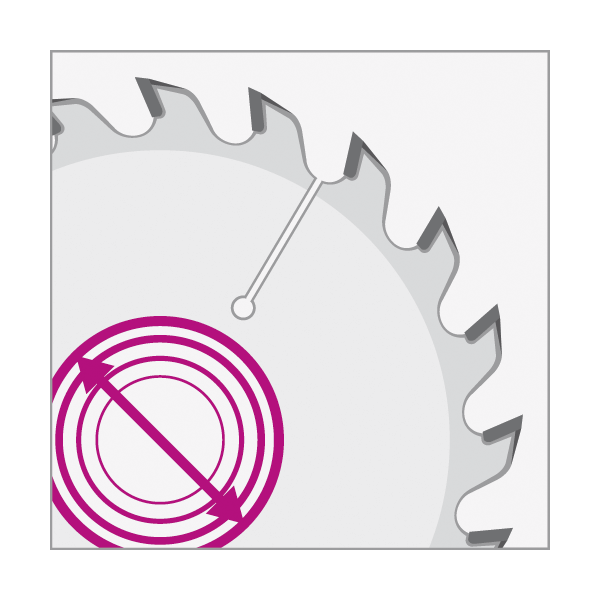

Max. flange Ø = Max. flange diameter 140 [mm]

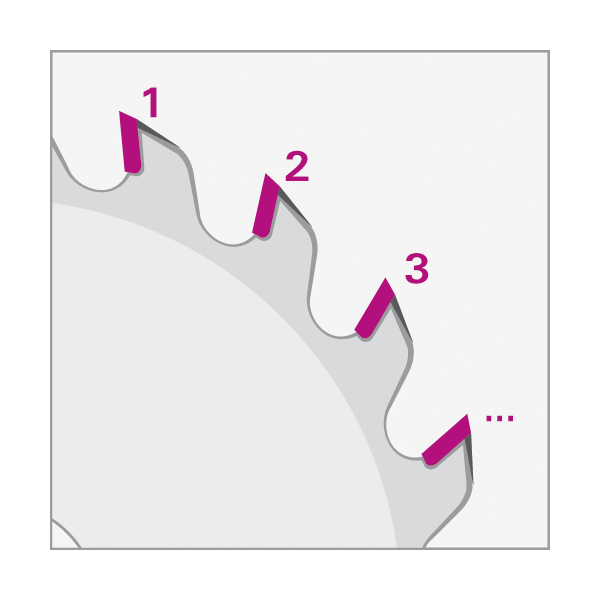

Z = No. of teeth 28

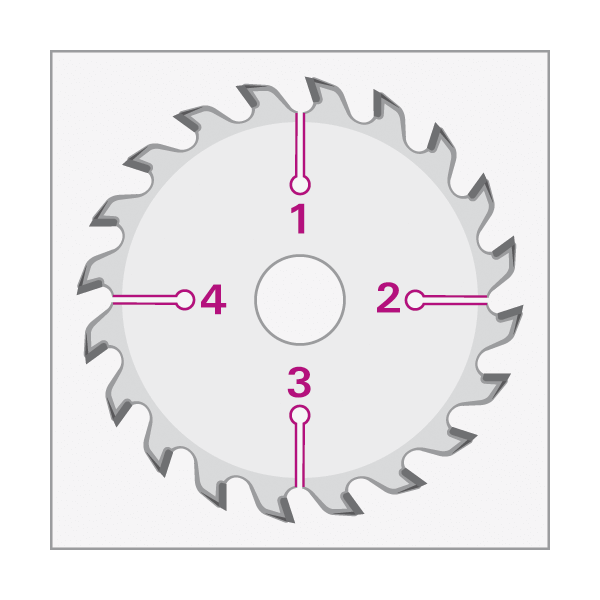

Number of cooling slots = Number of cooling slots 4 [pc.]

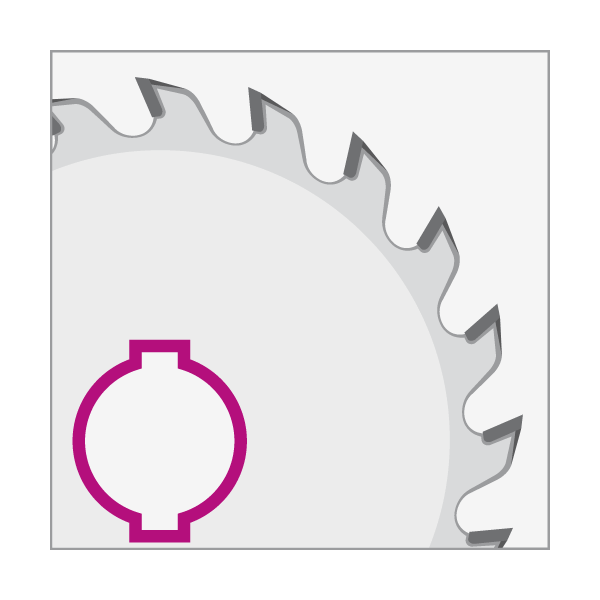

DKN = Double keyway 18,5x5 [mm]

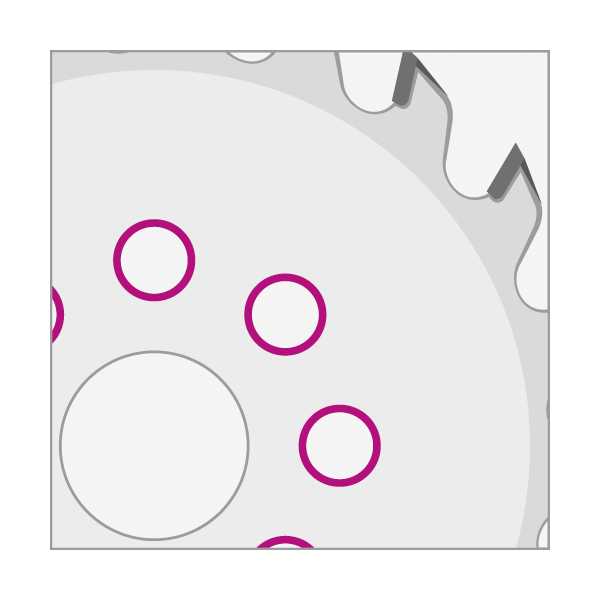

NL = Pin holes 6/5,5/91 + 4/6,6/95 + 2/13/100

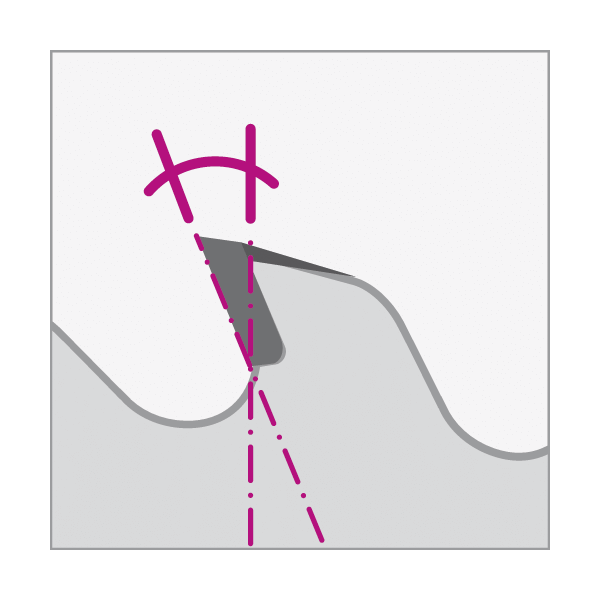

Hook angle = Hook angle 20 [°]
Tooth geometry = Tooth configuration F
LEUCODUR = Cutting material HL Board 10
