Leuco - Sizing Saw Blades "TR-F-FA" Top Wood 300x3.2x30 Z60
LE1102370181726
Product Code: LE1102370181726
Brand: Leuco
Machine / Application:
Table Saws
Vertical Panel Sizing Saws
For the Machine of Alucobond
Design:
Tooth Configuration: Triple Chip/ Flat with Chamfer TR-FA.
Additional Expansion Slots.
Cutting Material: HW HL Board 03
Feature

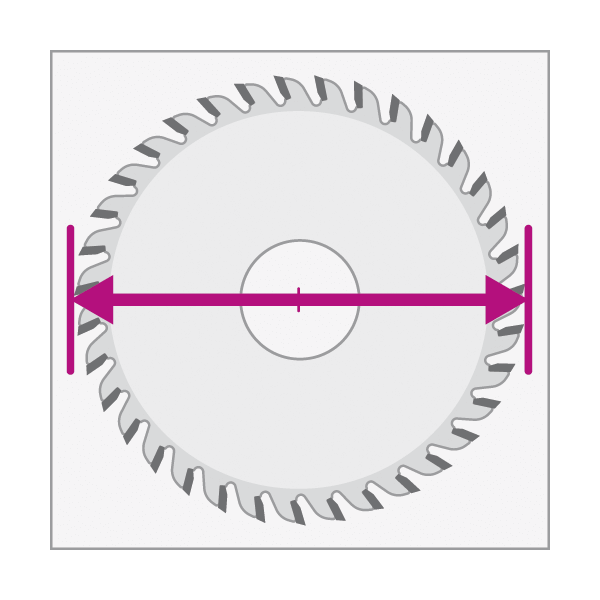

Ø D = Cutting Circle Diameter: 250 [mm]

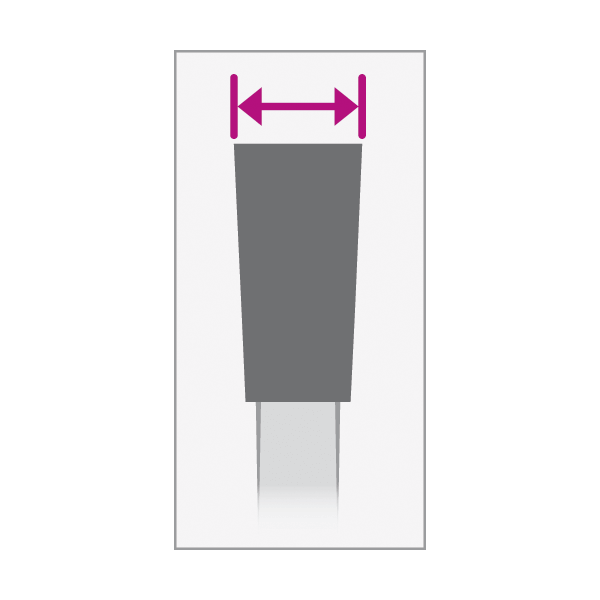

B = Cutting Width: 3,2 [mm]

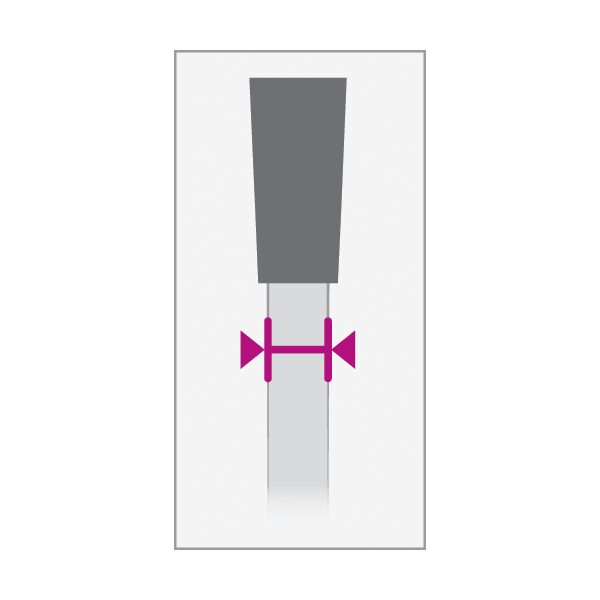

b = Body Thickness: 2.2 [mm]

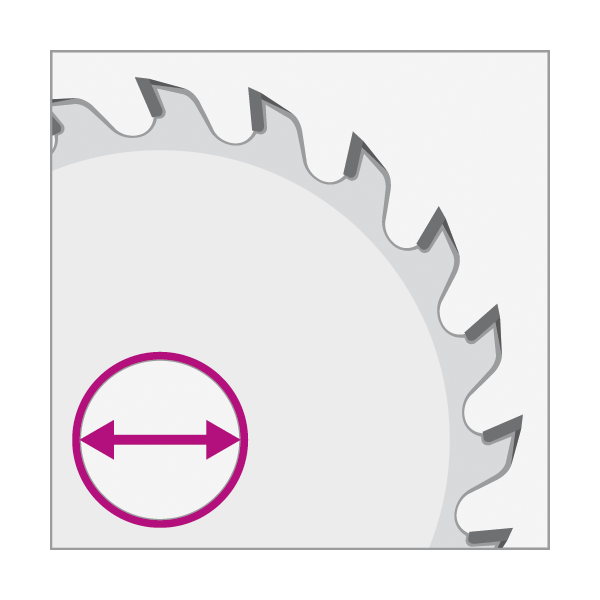

Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 60

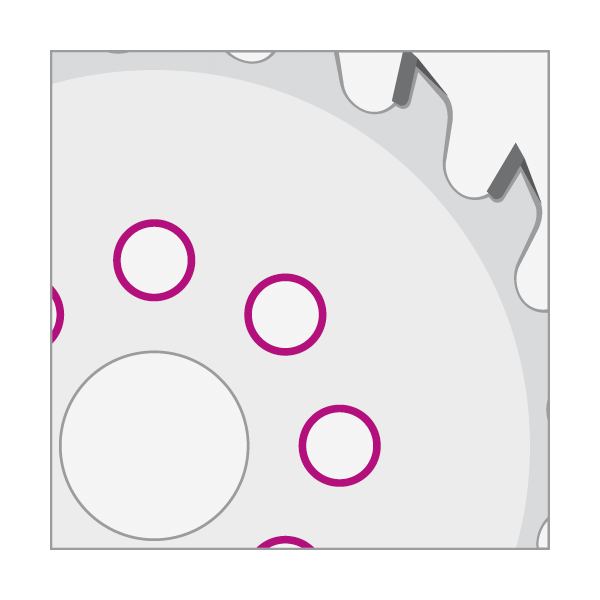

NL = Pin Holes: 2/7/42

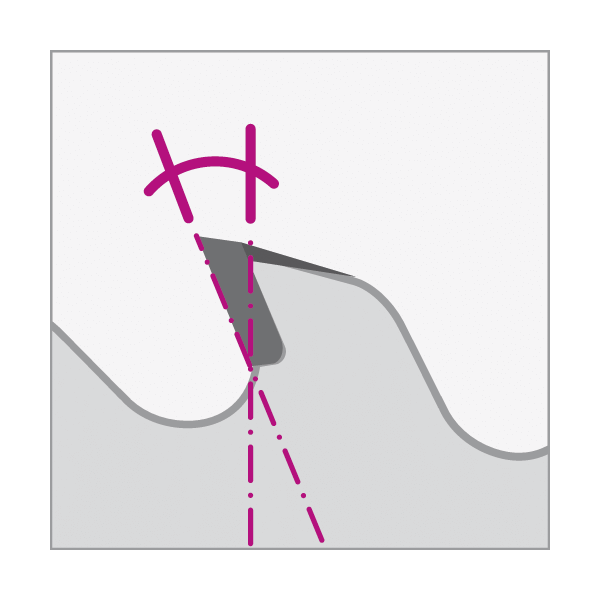

Hook Angle = Hook Angle: 10 [°]
Tooth Geometry = Tooth Configuration: TR-FA
LEUCODUR = Cutting Material: HW HL Board 03
Brand
Leuco
