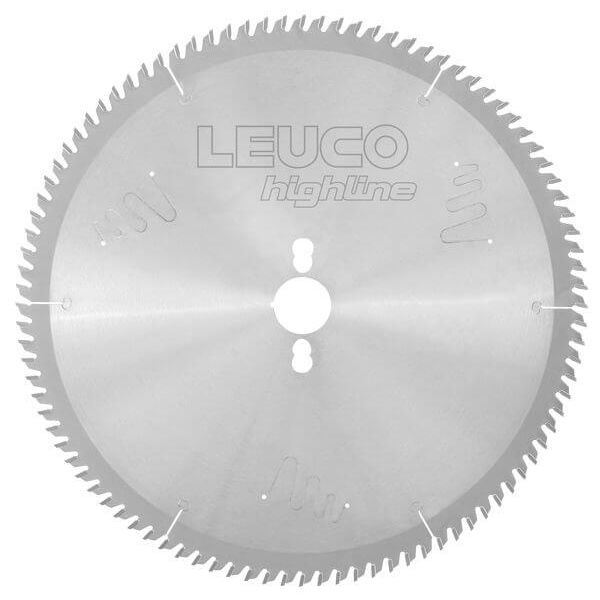

Leuco - Sizing Saw Blades HW "TR-F" Hook Angle 5° - 300x3.2x30 Z96
LE1102478189989
Product Code: LE1102478189989
Brand: Leuco
Design
Tooth Configuration: Triple Chip / Flat "TR-F".
Cutting Material: HW HL Board 06
Machine / Application
Table Saws
Vertical Panel Sizing Saws
For Sizing Cuts in Plastic-Laminated Panels.
Advantages
Improved bottom edge (without scoring sawblade) thanks to 5-degree hook angle .
Noise-reduction thanks to laser ornaments.
Notes: Larger bore (max. Ø 50 mm) available for a surcharge.
Features:

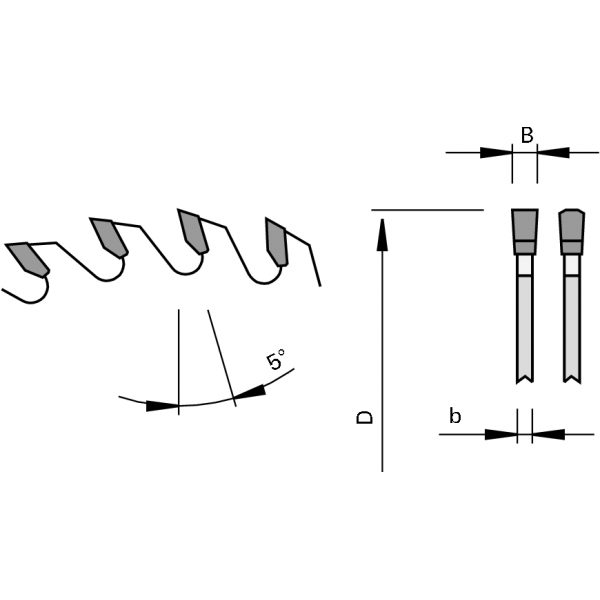

Ø D = Cutting Circle Diameter: 300 [mm]

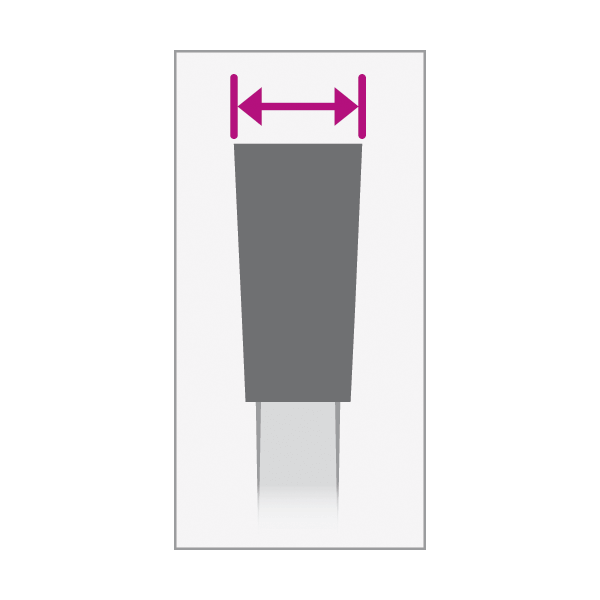

B = Cutting Width: 3,2 [mm]

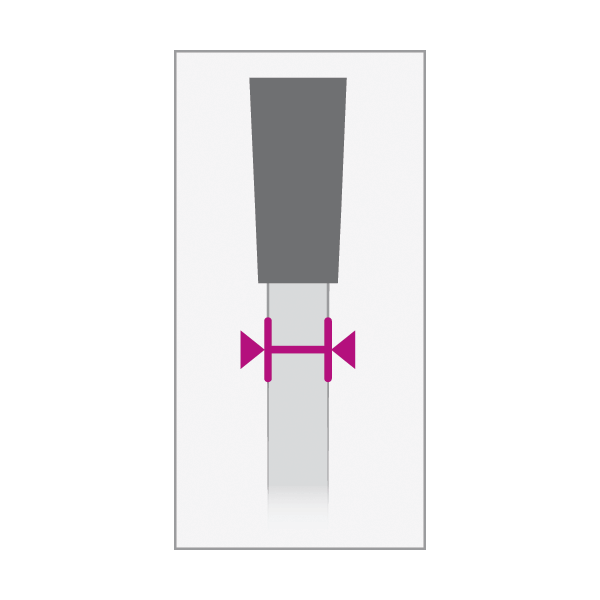

b = Body Thickness: 2.2 [mm]

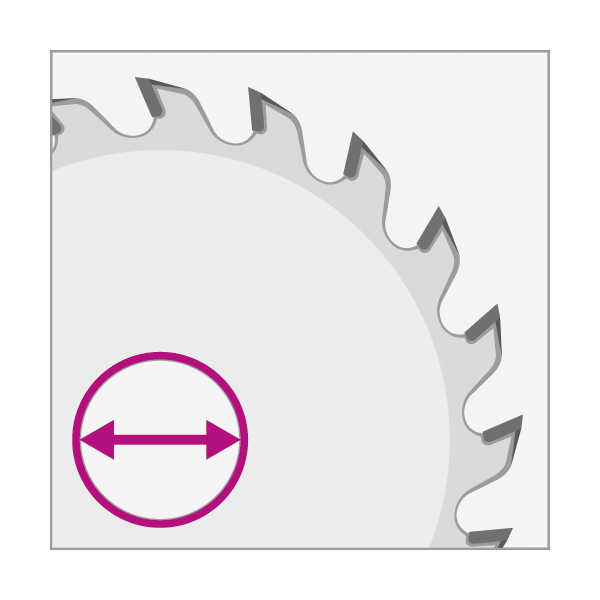

Ø d = Bore Diameter: 30 [mm]

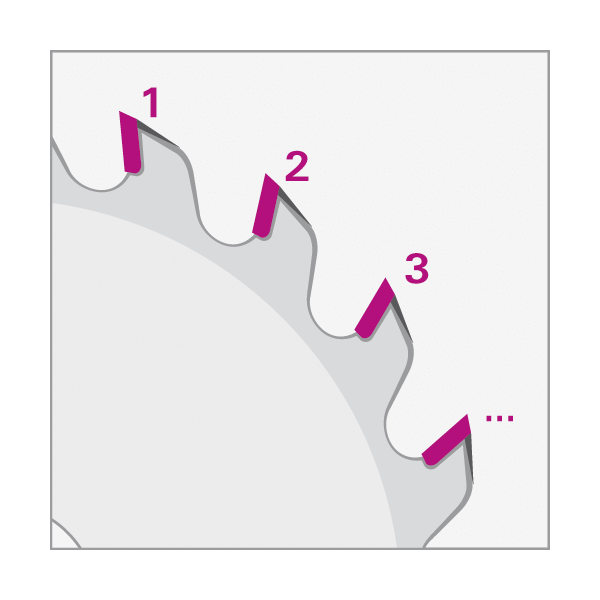

Z = No. of Teeth: 96

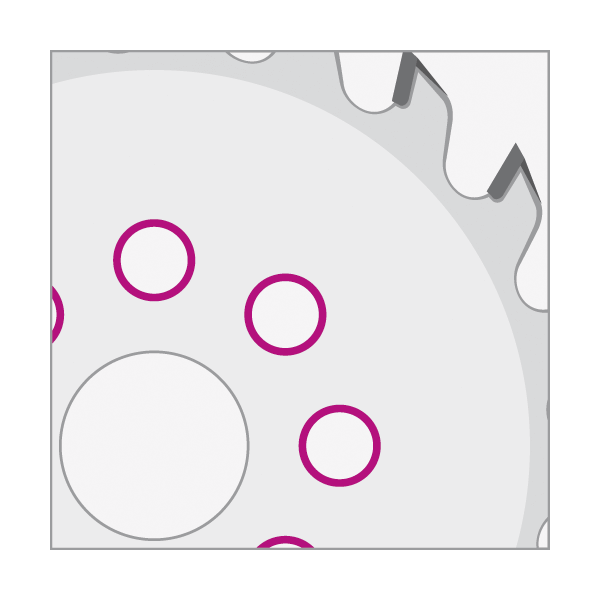

NL = Pin Holes: 2/7/42 + 2/9,5/46,5 + 2/10/60

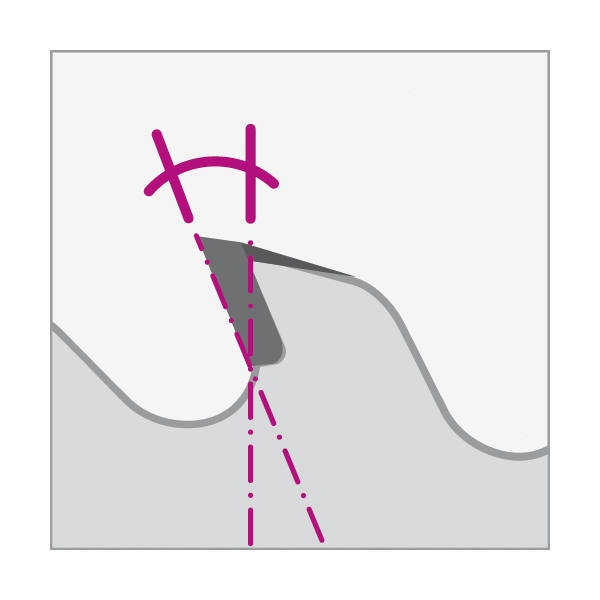

Hook Angle = Hook angle: 5 [°]
Tooth Geometry = Tooth Configuration: TR-F
LEUCODUR = Cutting Material: HL Board 06
