Leuco - Cylinder Boring Bits HW - Z=2+2 - 35x44/70x10 RH

Brand: Leuco

Design

2 Rakers, 2 Spurs and Centering Point

HW-Tipped

Machine / Application

Hardware Hinge Machines

Automatic Boring Machines

CNC Machining Centers

For Chip-Free Drilling of Hinge Hardware Holes in Solid Woods and Wood-Based Panels

Advantages

Chip-free holes thanks to scoring cut of the spurs.

Notes

Cylindrical shank with clamping surface.

Adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery.

Adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately.

Clamping elements: combi chuck, quick-clamping chuck.

Product Variation:

LE5130115172254

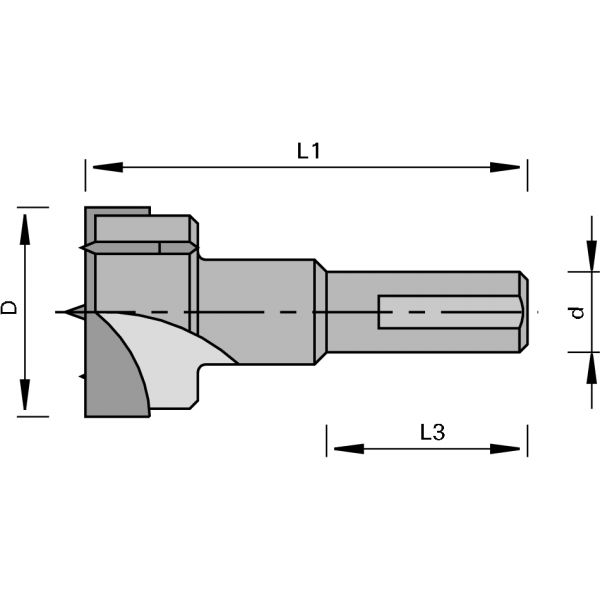

Features:                                             Value:

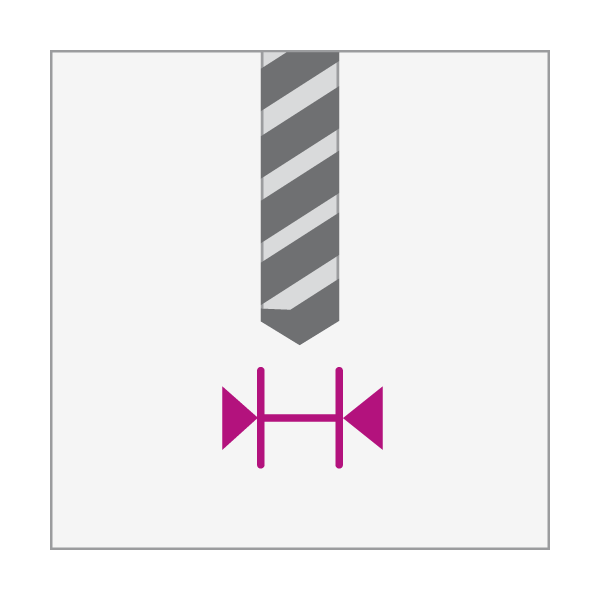

Ø D = Bore Diameter:                         35 [mm]

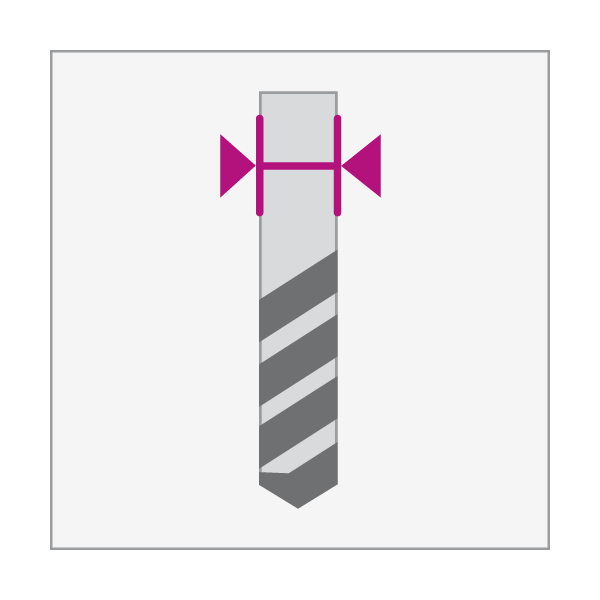

Ø d = Shank Diameter:                         10 [mm]

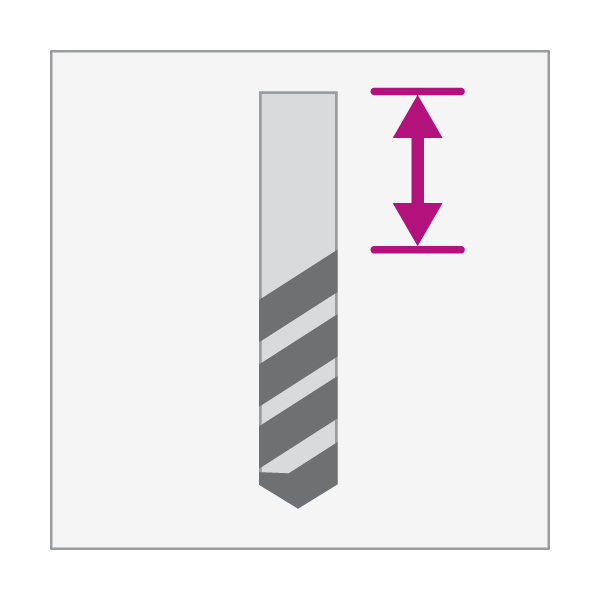

L3 = Shank Length:                             26 [mm]

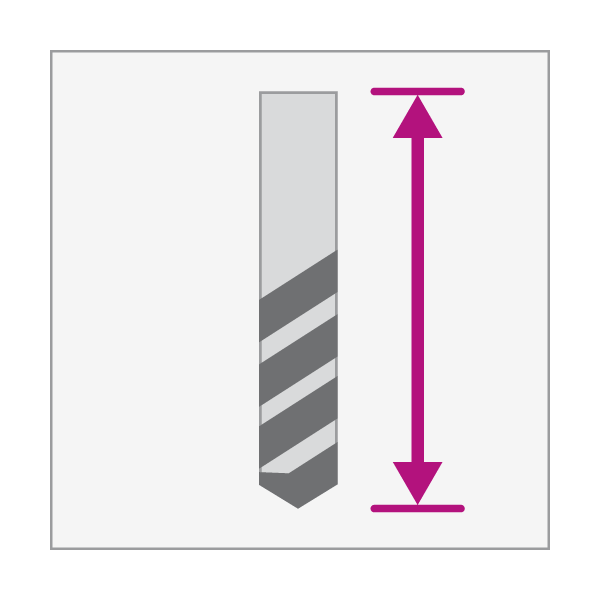

L1 = Total Length:                               70 [mm]

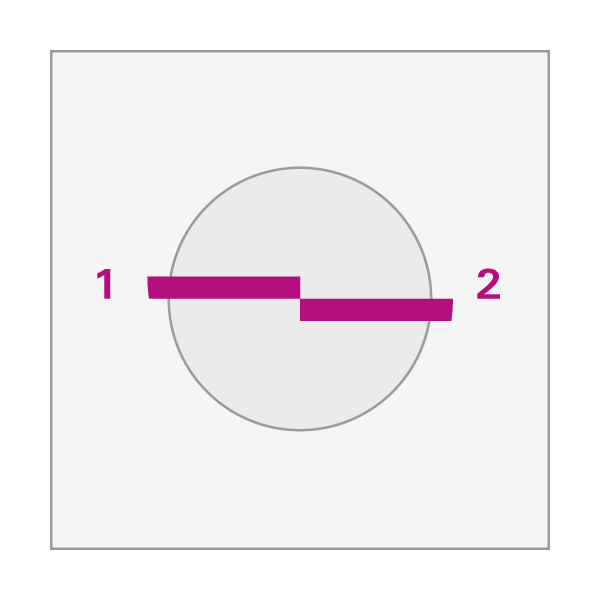

Z = No. of Teeth:                                 2+2

L/R = Cutting Direction:                       R

LE5130115003302

Features:                                             Value:

Ø D = Bore Diameter:                                     15 [mm]
Ø d = Shank Diameter:                                   10 [mm]

L3 = Shank Length:                                          26 [mm]

L1 = Total Length:                                             57.5 [mm]

Z = No. of Teeth:                                              2+2

L/R = Cutting Direction:                                                 R

LE5130115003332

Features:                                             Value:

Ø D = Bore Diameter:                                     35 [mm]
Ø d = Shank Diameter:                                   10 [mm]

L3 = Shank Length:                                          26 [mm]

L1 = Total Length:                                             57.5 [mm]

Z = No. of Teeth:                                              2+2

L/R = Cutting Direction:                                                 R

LE5130115172250

Features:                                             Value:

Ø D = Bore Diameter: 15 [mm]
Ø d = Shank Diameter: 10 [mm]

L3 = Shank Length: 26 [mm]

L1 = Total Length: 70 [mm]

Z = No. of Teeth: 2+2

L/R = Cutting Direction: R

LE5130115178978

Features:                                             Value:

Ø D = Bore Diameter:                                     15 [mm]
Ø d = Shank Diameter:                                   10 [mm]

L3 = Shank Length:                                          26 [mm]

L1 = Total Length:                                             70 [mm]

Z = No. of Teeth:                                              2+2

L/R = Cutting Direction:                                 L
