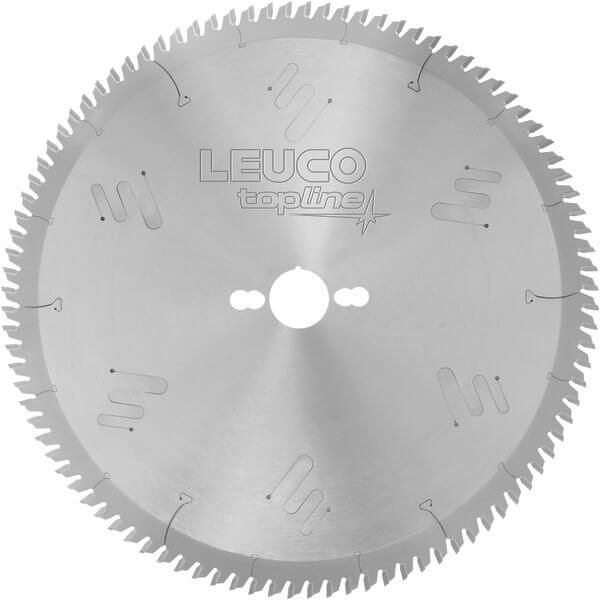

Leuco - Sizing Saw Blades HW - Lownoise "WS" - Sizing Saw Top Wood 300x3.2x30
- View all variations as list
| CODE | No. of Teeth | Availability | Price | ||
|---|---|---|---|---|---|
|
LE1102328192462
|
In stock
|
AED26873 | ||
|
|
LE1102328192463
|
In stock
|
AED24739 |
Brand: Leuco
Machine / Application
Table Saws.
Vertical Panel Sizing Saws.
For Sizing Cuts.
Design
Vibration and Noise Damping Ornaments.
Additional Expansion Slots.
Cutting Material: HL Board 04 plus and HL Board 06
Advantages
Extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations.
For each application case the correct tooth form.
Notes
Ident-No. 189690: extremely straight steel plate for Striebig panel sizing saws with scoring device
NL**- Combi2 = 2/7/42 + 2/9/46 + 2/10/60
NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60
Feature:

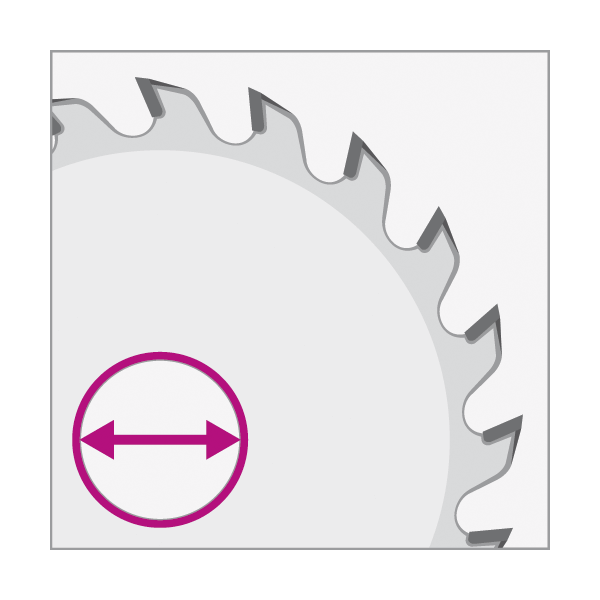

Ø D = Cutting Circle Diameter: 300 [mm]

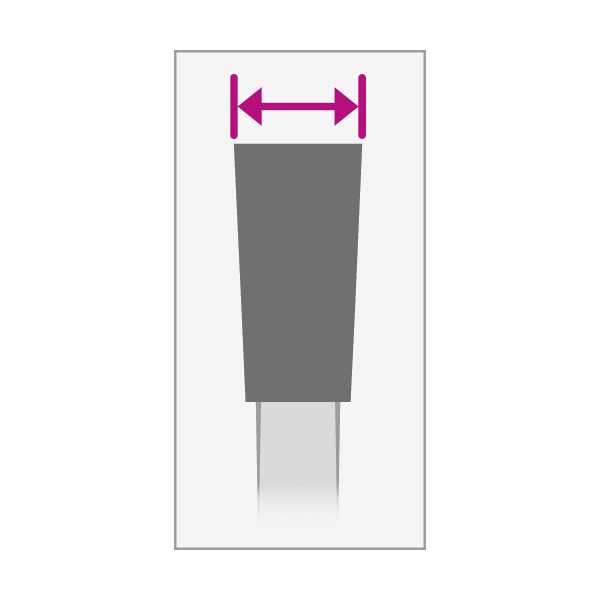

B = Cutting Width: 3,2 [mm]
b = Body Thickness: 2.2 [mm]
Ø d = Bore Diameter: 30 [mm]

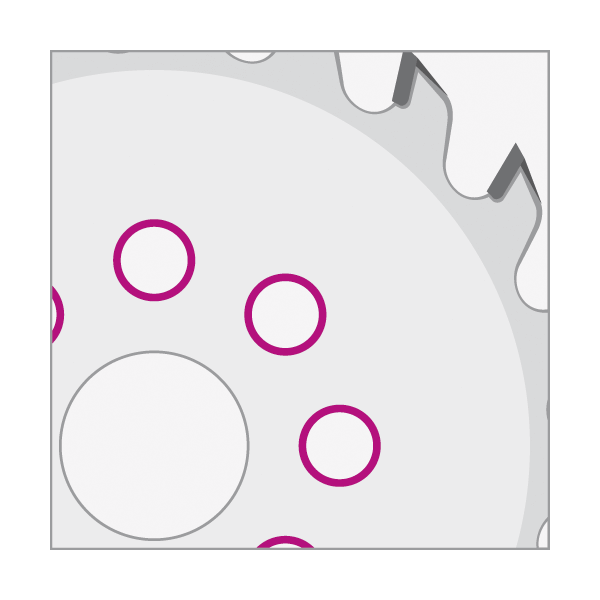

NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60
Hook Angle = Hook Angle: 10 [°]
Corner ∡ = Corner Angle: 15 [°]

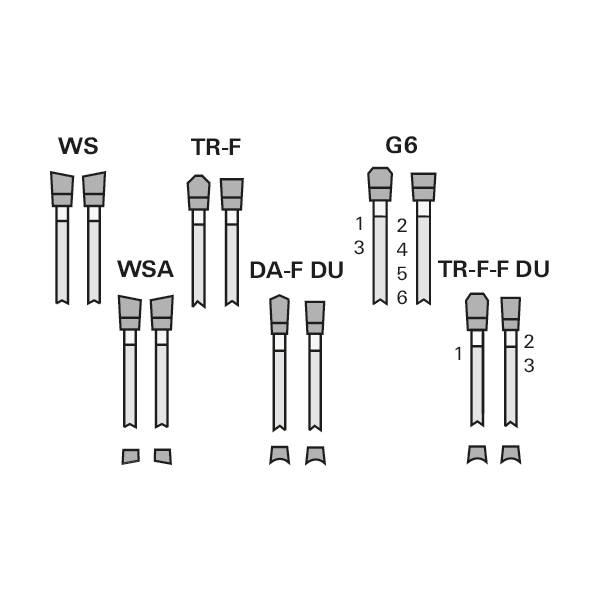

Tooth Geometry = Tooth Configuration: WS
Available Option:
Item Code: LE1102328192463

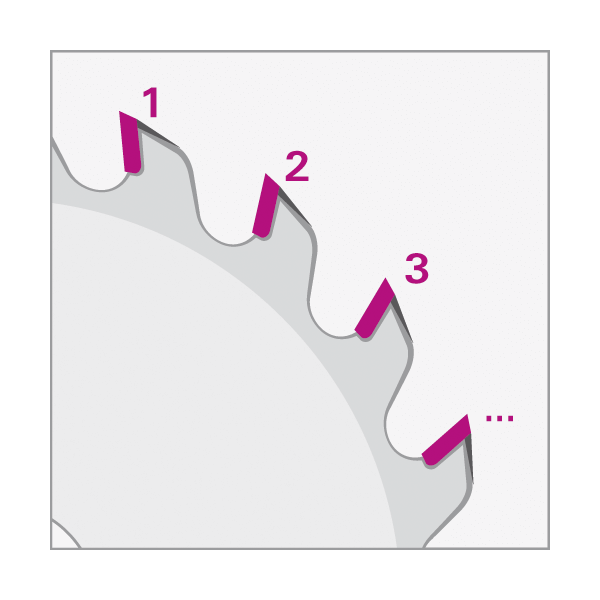

Z = No. of Teeth: 60
LEUCODUR = Cutting Material: HL Board 06
Item Code: LE1102328192462
Z = No. of Teeth: 72
LEUCODUR = Cutting Material: HL Board 04 plus
