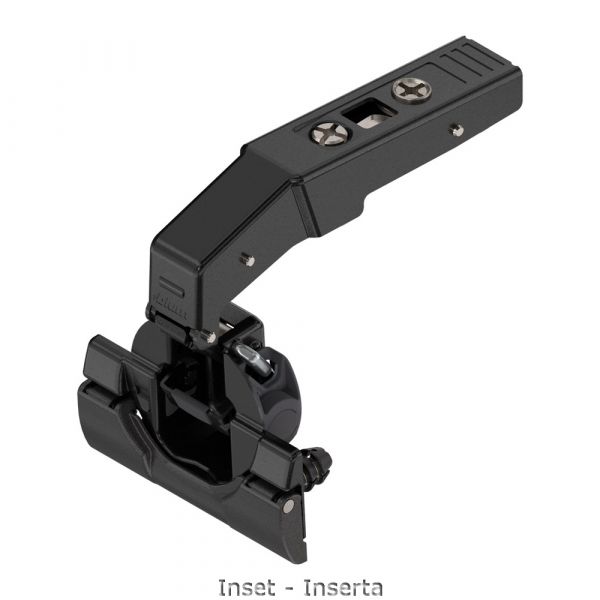

Blum - Clip Top Blumotion Blind Corner Hinge 95° - Inset Application + Cam Mounting Plate Cruciform
- View all variations as list
| CODE | Boss Assembly | Availability | Price | ||
|---|---|---|---|---|---|
|
79B9580 ONS/BL1736100BL
|
In stock
|
AED1549 | ||
|
79B9590 ONS/BL1736100BL
|
In stock
|
AED1733 | ||
|
79B9550 ONS/BL1736100BL
|
In stock
|
AED1519 |
Brand: Blum
Colour / finish: Onyx black
Application: blind corner hinge
Opening angle: 95
Closing mechanism: with spring
Hinge variant: with integrated BLUMOTION
Cover cap type: 70.1503
Cover cap type: 70T3504 – boss cover cap
Boss material: Steel boss
Boss finish: Onyx black
Boss assembly: screw-on
Flange width: 57
Flange length: 22
Flange height: 3.2
Diametre hinge boss drilling: 35
Distance between drillings: 45
Eccentric position of fixing holes to hinge boss hole: 9.5
Boss drilling depth: 13
Minimum drilling distance: 3
Maximum drilling distance: 7
Arm material: Steel
Arm finish: Onyx black
Collision measurement (hinge arm height): 21
Fixed dimension / factory setting: -8
Type of side adjustment: with screw
Side adjustment: +/- 2.5 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: +/- 1 mm
Gap: 3
Item package: 1 piece
Packaging: Commercial packing

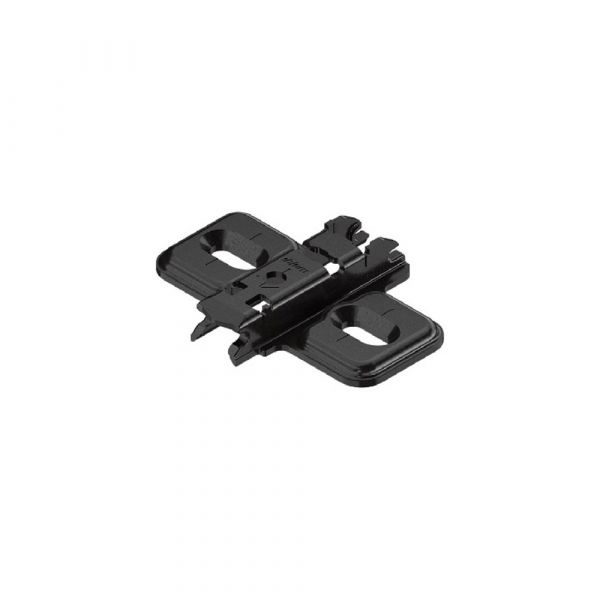

Blum - Cam Mounting Plate Cruciform 0mm Spacing
Product Code: BL1736100BL
Brand: Blum
Height adjustment: +/-3mm
Finish: Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole
Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
