Blum - Clip Top Blumotion Profile/Thick Door Hinge 95° Screw On + Horizontal Cam Plate

CODE: 71B9550/175H4100

Write a review

AED13¹⁰

Excl. VAT

1 Set (AED13.10 per Set)

In stock

Hinge Mounting Type:

Full Overlay (Overlay application) Half Overlay (Dual application) Inset (Inset application)

Plate Fixing Type:

Knock-in ( expando) Screw-on (without dowels) Inserta

Price in points: 14 points

+ −

View all variations as list

CODE	Hinge Mounting Type	Plate Fixing Type	Availability	Price
71B9590/177H3100E10	Full Overlay (Overlay application)	Inserta	In stock	AED15³²	+ −
71B9690/177H3100E10	Half Overlay (Dual application)	Inserta	In stock	AED16²⁷	+ −
71B9790/177H3100E10	Inset (Inset application)	Inserta	In stock	AED16⁴⁰	+ −
71B9650/175H4100	Half Overlay (Dual application)	Screw-on (without dowels)	In stock	AED14⁰⁵	+ −
71B9680/177H3100	Half Overlay (Dual application)	Knock-in ( expando)	In stock	AED14⁴¹	+ −
71B9580/177H3100	Full Overlay (Overlay application)	Knock-in ( expando)	In stock	AED13⁴⁶	+ −
71B9750/175H4100	Inset (Inset application)	Screw-on (without dowels)	In stock	AED14¹⁸	+ −
71B9780/177H3100	Inset (Inset application)	Knock-in ( expando)	In stock	AED14⁵⁴	+ −
71B9550/175H4100	Full Overlay (Overlay application)	Screw-on (without dowels)	In stock	AED13¹⁰	+ −

Vendor: Economic Trading

Description
Features

Brand: Blum

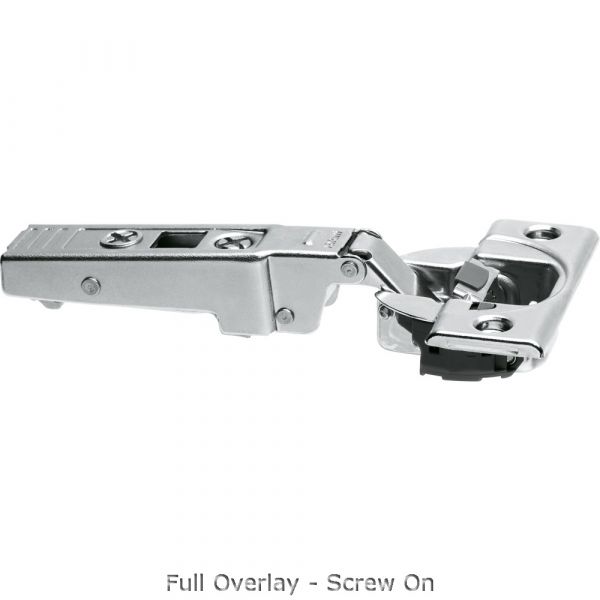

Hinge for thick doors and doors with profile.

CLIP TOP BLUMOTION with integrated BLUMOTION (with deactivation option).

CLIP TOP with or without closing mechanism (spring).

95° opening angle

3-dimensional front adjustment

Convenient spiral-tech depth adjustment.

Tool-free door to cabinet assembly and removal.

With INSERTA tool-free hinge to door assembly.

Technical Attributes

Application: Profile Door Hinge

Opening Angle: 95

Closing Mechanism: With Spring

Hinge Variant: With Integrated BLUMOTION

Boss Material: Steel Boss

Boss Finish: Nickel Plated

Diametre Hinge Boss Drilling: 35

Distance Between Drillings: 45

Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5

Boss Drilling Depth:13

Minimum Drilling Distance:3

Maximum Drilling Distance: 7

Arm Material: Steel

Arm Finish: Nickel Plated

Type of Side Adjustment: With Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

Note:

A trial application is recommended when combining CLIP top BLUMOTION hinges with springs on small, light fronts up to 300 mm wide. Combining these is not recommended for wider fronts.

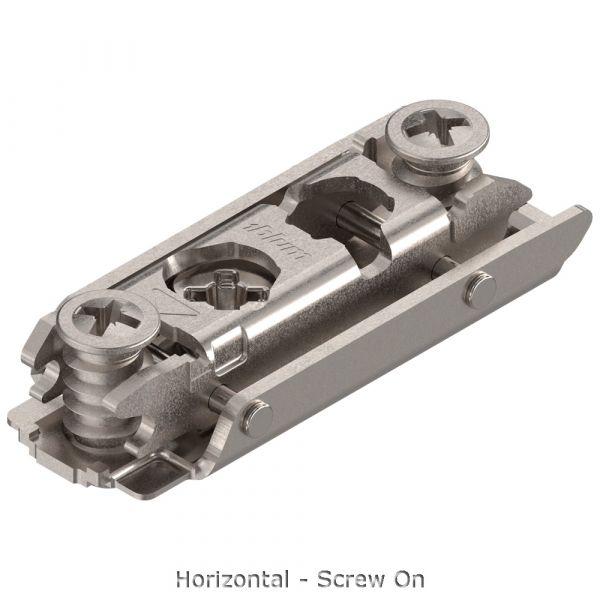

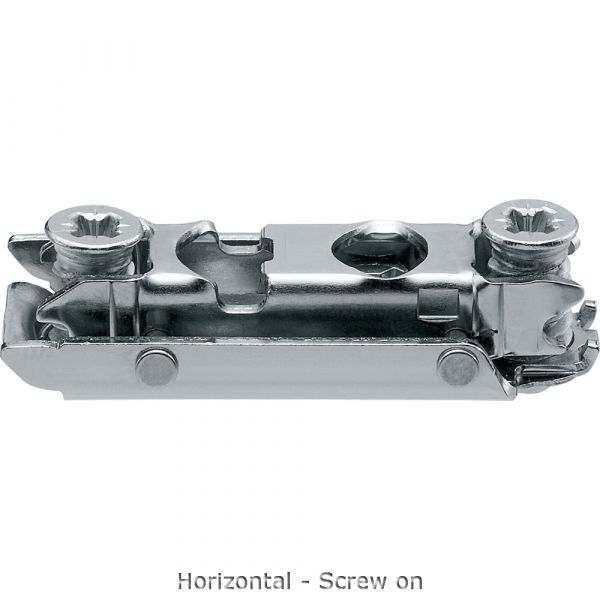

CLIP TOP BLUMOTION - Horizontal Cam Mounting Plate - Nickel Plated Finish

Technical Attributes

Mounting Plate System: CLIP

Colour / Finish: Nickel Plated

Shape of Mounting Plate: Straight

Material: Steel

Surface of Bottom Part: Nickel Plated

Distance Cabinet Front Edge to First Fixing Position: 20

Mounting Plates Height Adjustment: With Cam

Height Adjustment: +/- 2 Mm

Height: 8.5

Spacing: 0
