Home/Modern Home & Furniture Solution/Blum - CLIP Top Wide Angle Hinge 170° + Cruciform Mounting Plate

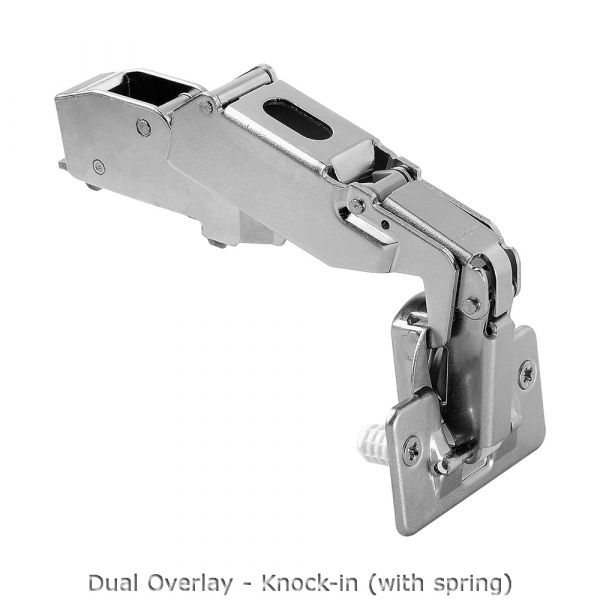

Blum - CLIP Top Wide Angle Hinge 170° + Cruciform Mounting Plate

CODE: 71T6680/173L6100

Blum - CLIP Top Wide Angle Hinge 170° + Cruciform Mounting Plate

Blum - CLIP Top Wide Angle Hinge 170° + Cruciform Mounting Plate

Blum - CLIP Top Wide Angle Hinge 170° + Cruciform Mounting Plate

Write a review

AED16¹³

Excl. VAT

1 Set (AED16.13 per Set)

In stock

Hinge Mounting Type:

Full Overlay Half Overlay (Dual application)

Boss Assembly:

Screw-on Knock-in Inserta

Spring Option:

With Spring Unspring (push to open)

Price in points: 17 points

+ −

View all variations as list

	CODE	Hinge Mounting Type	Boss Assembly	Spring Option	Availability	Price
	71T6550/173L6100	Full Overlay	Screw-on	With Spring	In stock	AED11⁵¹	+ −
	70T6550.TL/173L6100	Full Overlay	Screw-on	Unspring (push to open)	In stock	AED11⁸⁰	+ −
	71T6580/173L6100	Full Overlay	Knock-in	With Spring	In stock	AED11⁸²	+ −
	71T6540B/173L6100	Full Overlay	Inserta	With Spring	In stock	AED16⁰²	+ −
	71T6650/173L6100	Half Overlay (Dual application)	Screw-on	With Spring	In stock	AED15⁵³	+ −
	70T6650.TL/173L6100	Half Overlay (Dual application)	Screw-on	Unspring (push to open)	In stock	AED15⁸²	+ −
	71T6680/173L6100	Half Overlay (Dual application)	Knock-in	With Spring	In stock	AED16¹³	+ −
	71T6640B/173L6100	Half Overlay (Dual application)	Inserta	With Spring	In stock	AED20³³	+ −
	70T6640BTL/173L6100	Half Overlay (Dual application)	Inserta	Unspring (push to open)	In stock	AED20³³	+ −
	70T6540BTL/173L6100	Full Overlay	Inserta	Unspring (push to open)	In stock	AED16³¹	+ −

Economic Trading

Vendor: Economic Trading

Description
Features

Brand: Blum

Colour / finish: Nickel plated

Technical Attributes:

Application: wide angle hinge

Cranking: Overlay application/Dual Application

Opening angle: 170

Closing mechanism: unsprung/with spring

Cover cap type: 80.6507

Boss material: Zinc boss

Boss finish: Nickel plated

Boss assembly: INSERTA/Screw-on/Knock-in

Flange width: 65

Flange length: 30.5

Flange height: 7.2

Diametre hinge boss drilling: 35

Diametre of fixing holes: 8

Distance between drillings: 45

Exccentric position of fixing holes to hinge boss hole: 9.5

Boss drilling depth: 11

Minimum drilling distance: 3

Maximum drilling distance: 8

Arm material: Zinc

Arm finish: Nickel plated

Collision measurement (hinge arm height): 65

Fixed dimension / factory setting: 11

Type of side adjustment: With screw

Side adjustment: +/- 2 mm

Type of depth adjustment: convenient with spiral screw

Depth adjustment: + 3/- 2 mm

Gap: 1.5

Item package: 1 piece

Packaging: Commercial packing

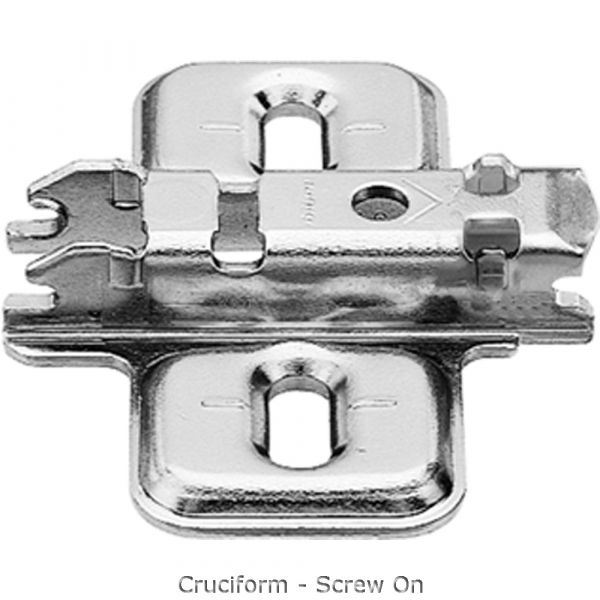

Blum CLIP Mounting Plate Cruciform 0 mm Steel - Screw-on

Part number: 173L6100

Item number: 07480175

Colour / finish: Nickel plated

Technical Attributes:

Mounting plate system: CLIP

Shape of mounting plate: Cruciform

Material: Steel

Fixing: for chipboard screws

Distance cabinet front edge to first fixing position: 37

Mounting plates height: adjustment with elongated hole

Height adjustment: +/- 3 mm

Height: 8.5

Spacing: 0

Angle: 0

Item package: 1 piece

Packaging: industrial packing

Fixing positions: fixing position 1/cruciform mounting plate
