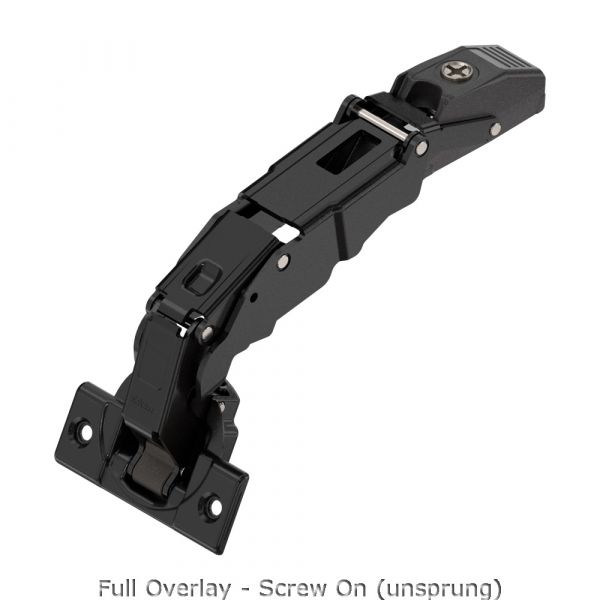

Blum - CLIP Top Wide Angle Hinge For Zero Protrusion 155° + Horizontal Mounting Plate

70T7550.TL ONS/BL175H3130BL
AED2076
Excl. VAT
1 Set (AED20.76 per Set)
In stock
Price in points: 21 points

Brand: Blum

Colour / finish: Onyx black

Application: Wide angle hinge for zero protrusion

Cranking: Overlay application

Opening angle: 155

Closing mechanism: unsprung

Hinge variant with free movement for: TIP-ON

Cover cap type: 70.4503

Cover cap type: 70T7504 – boss cover cap

Boss material: Steel boss

Boss finish: Onyx black

Boss assembly: screw-on / inserta

Flange width: 57

Flange length: 22

Flange height: 3.2

Diametre hinge boss drilling: 35

Distance between drillings: 45

Exccentric position of fixing holes to hinge boss hole: 9.5

Boss drilling depth: 11.7

Minimum drilling distance: 3

Maximum drilling distance: 8

Arm material: Zinc

Arm finish: Onyx black

Collision measurement (hinge arm height): 62

Fixed dimension / factory setting: 11

Type of side adjustment: With screw

Side adjustment: +/- 2 mm

Type of depth adjustment: convenient with spiral screw

Depth adjustment: + 3/- 2 mm

Gap: 1.5

Item package: 1 piece

Packaging: Commercial packing

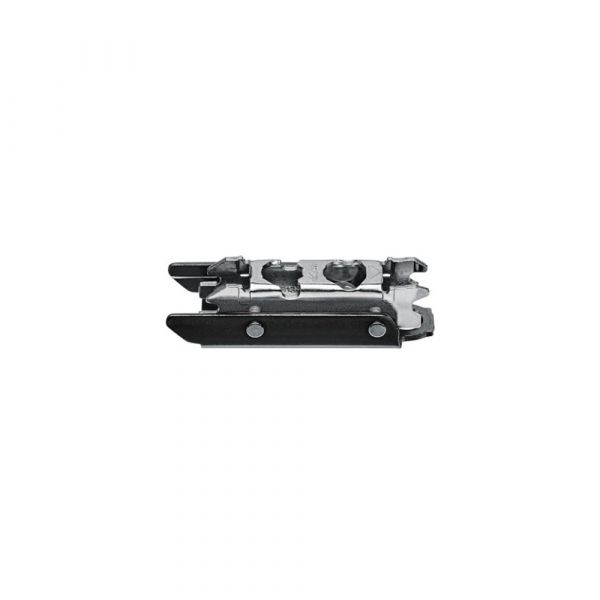

Blum - Clip Top Cam Horizontal Adjustable In-Line Concealed Mounting Plate 3 mm

Product Code: BL175H3130BL

Brand: Blum

Shape of mounting plate: Straight

Spacing: 3 mm

Weight: 0.015 kg

Material: Steel

Finish: Onyx Black

Fixing: for chipboard screws

Distance between fixing positions: 32 mm

Distance cabinet front edge to first fixing position: 20 mm

Mounting plates height adjustment: with cam
