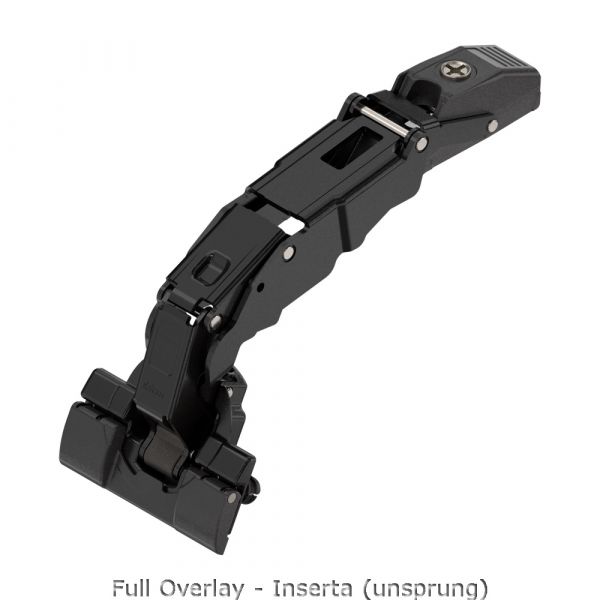

Blum - CLIP Top Wide Angle Hinge For Zero Protrusion 155° + Horizontal Mounting Plate
- View all variations as list
| CODE | Hinge Mounting Type | Boss Assembly | Availability | Price | ||
|---|---|---|---|---|---|---|
|
70T7590.TL ONS/BL175H3130BL
|
In stock
|
AED2405 | |||
|
70T7550.TL ONS/BL175H3130BL
|
In stock
|
AED2076 |
Brand: Blum
Colour / finish: Onyx black
Application: Wide angle hinge for zero protrusion
Cranking: Overlay application
Opening angle: 155
Closing mechanism: unsprung
Hinge variant with free movement for: TIP-ON
Cover cap type: 70.4503
Cover cap type: 70T7504 – boss cover cap
Boss material: Steel boss
Boss finish: Onyx black
Boss assembly: screw-on / inserta
Flange width: 57
Flange length: 22
Flange height: 3.2
Diametre hinge boss drilling: 35
Distance between drillings: 45
Exccentric position of fixing holes to hinge boss hole: 9.5
Boss drilling depth: 11.7
Minimum drilling distance: 3
Maximum drilling distance: 8
Arm material: Zinc
Arm finish: Onyx black
Collision measurement (hinge arm height): 62
Fixed dimension / factory setting: 11
Type of side adjustment: With screw
Side adjustment: +/- 2 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging: Commercial packing

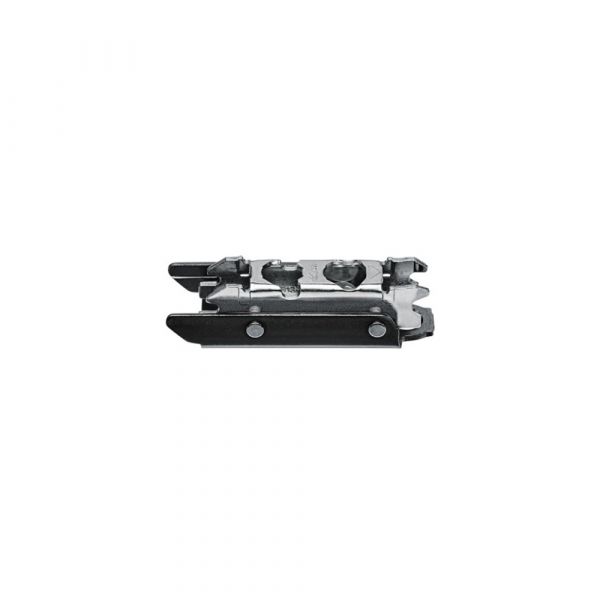

Blum - Clip Top Cam Horizontal Adjustable In-Line Concealed Mounting Plate 3 mm
Product Code: BL175H3130BL
Brand: Blum
Shape of mounting plate: Straight
Spacing: 3 mm
Weight: 0.015 kg
Material: Steel
Finish: Onyx Black
Fixing: for chipboard screws
Distance between fixing positions: 32 mm
Distance cabinet front edge to first fixing position: 20 mm
Mounting plates height adjustment: with cam
