Blum - Legrabox Drawer M Full Extension 500mm Length - Set(Cabinet Profile (LR) + Drawer Side (LR) + Back Fixing Bracket (LR) + 2Pcs Front Fixing Bracket)

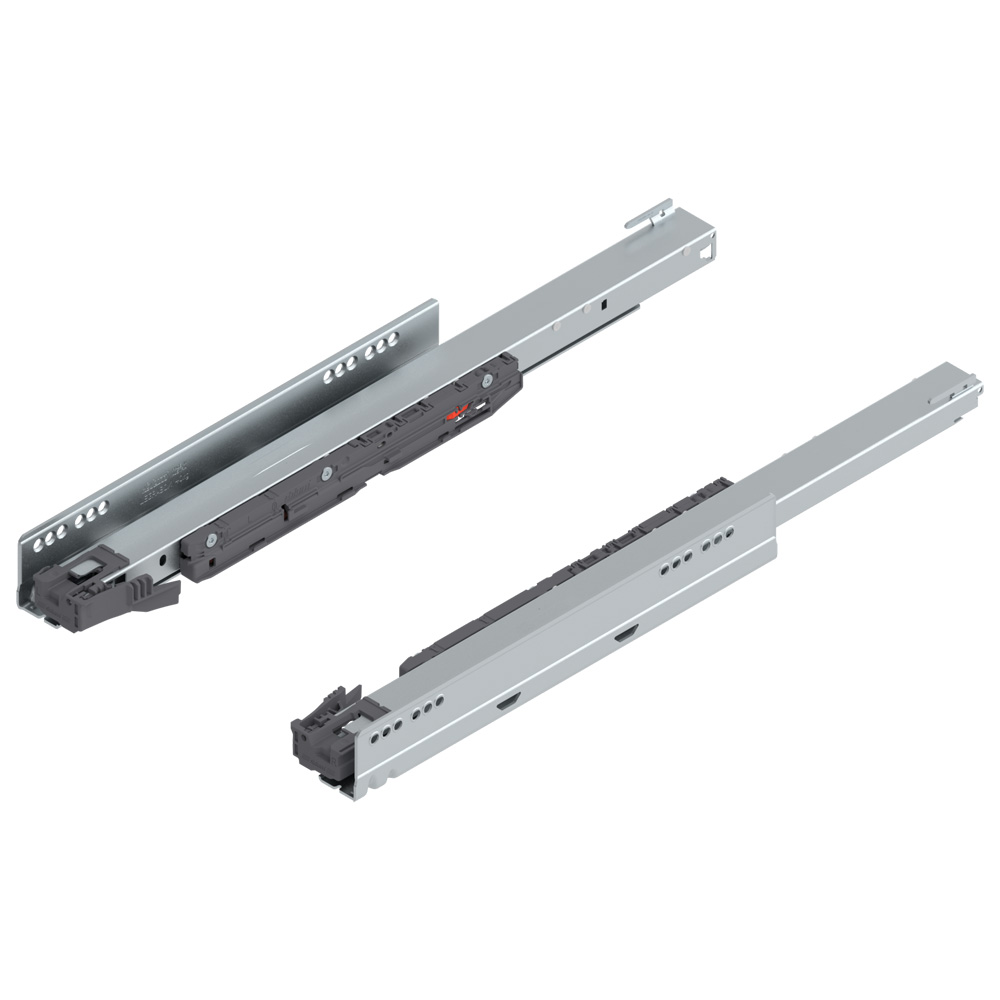

Cabinet Profile - Height M (90.5 mm) NL=500 mm Right + Left for Legrabox

Brand: Blum

Suitable for LEGRABOX pure and LEGRABOX free.

Steel drawer side and stainless steel.

Straight interior and exterior.

Slim drawer side 12.8 mm.

Synchronized feather-light glide.

Includes integrated, switchable BLUMOTION S for silent and effortless closing and can be combine with SERVO-DRIVE or TIP-ON BLUMOTION.

Tool-free front assembly.

Three-dimensional front adjustment in the drawer side.

Colour / finish: Zinc plated

Technical Attributes

Type of runner system: LEGRABOX cabinet profile

Motion technology: with BLUMOTION/for TIP-ON BLUMOTION

Dynamic load bearing: 40/70kg

Nominal Length: 500mm

Material: Steel

Colour / finish: Zinc plated

Pullout type: Full extension

Runner system: Synchronized roller carriage system

Drawer profile width: 32.06

Shank height of cabinet profile: 47.5

Cabinet profile width: 31

Distance of latch: 255.5

Distance of BLUMOTION and BLUMATIC: 279

Cabinet profile fixing: With screws

Assembly type: Side mounted

Connection runner system with Box or drawer: For locking device

Minimum internal cabinet depth: 503

Item package: Right + left

Packaging: Multipack

Drawer Side - Height M (90.5 mm) NL=500 mm Right + Left for Legrabox

Technical Attributes

Design option: LEGRABOX pure

Type of Box: LEGRABOX drawer side

Material: Steel

Drawer side height: M (90.5 mm)

Design option: Pure

Design: Plain

Nominal Length: 500

Connection drawer side to frontal: Front-fixing bracket

Connection drawer side to back: Clip on (steel back or wooden back fixing bracket)

Length of drawer side hat (internal drawer length): 489.8

Install.dim.drawer side (inn.carc.depth until outer base edge: 17

Height adjustment: Yes

Fixing of base to drawer side: Prong connection or screw-on

Bottom thickness: 16

Stay-open stop: No

Minimum internal cabinet depth: 503

Additions: ZA7.070 outer cover caps enclosed

Additions: ZA7.570 inner cover caps enclosed

Item package: Right + left

Packaging: Commercial packing

Drawer type: Full extension

Dynamic load bearing drawer side/drawer profile: 40/70

Blum Legrabox Front Fixing Bracket - Height M Screw-on Symmetrical - Zinc Plated

Technical Attributes

Runner system: LEGRABOX

Type of front fixing: Front-fixing bracket

Material: Steel

Colour / finish: Zinc plated

Connection front fixing bracket to front: Screw-on

Connection front fixing bracket to drawer side: CLIP

Item package: Symmetrical

Back Fixings Bracket - Height M (106 mm) - Right + Left for Legrabox

Technical Attributes

Runner system: LEGRABOX

Height: 60.6 mm

Space requirements in cabinet: M (106 mm)

Type of back/back fixing: Back fixings bracket

For gallery attachment: No

Min. installation height: 106

Material: Steel

Colour / finish: Nickel-plated

Fixing position of wooden back fixing bracket: Back fixings bracket fixing position 10

Design: Plain

Item package: Right + Left

Packaging: Multipack

Packaging quantity: 25

Front Fixing Bracket - Height M Screw-on Symmetrical - Zinc Plated for Legrabox

Technical Attributes

Runner system: LEGRABOX

Type of front fixing: Front-fixing bracket

Material: Steel

Colour / finish: Zinc plated

Connection front fixing bracket to front: Screw-on

Connection front fixing bracket to drawer side: CLIP

Item package: Symmetrical

Packaging: Industrial packing
