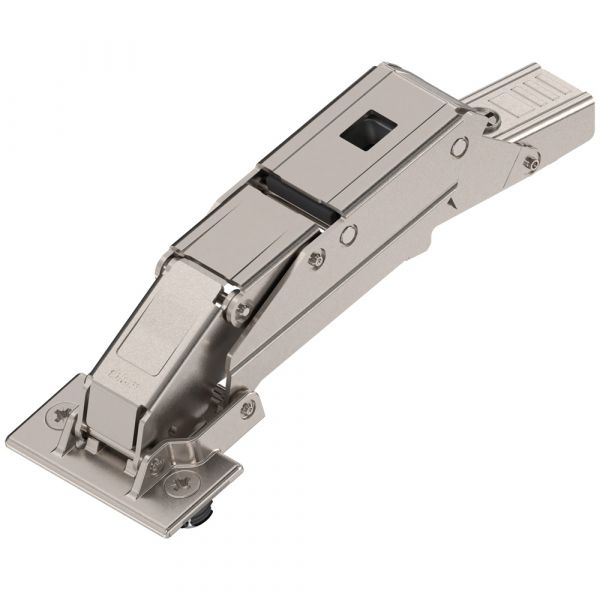

Blum - CLIP Top Hinge For Thin Doors 110° Overlay + Cruciform Mounting Plate

71T453T/173L6100
AED3206
Excl. VAT
1 Set (AED32.06 per Set)
In stock
Price in points: 33 points

Brand: Blum

Colour / finish: Nickel plated

Technical Attributes

Application: Hinge for thin doors

Opening angle: 110

Closing mechanism: unsprung / with spring

Cover cap type: 70.4503

Cover cap type: 70T7504 – boss cover cap

Boss material: Zinc boss

Boss finish:  Nickel plated

Boss assembly: EXPANDO T

Flange width: 44

Flange length: 22

Flange height: 2.2

Diametre of fixing holes: 10

Distance between drillings: 32

Minimum drilling distance: 23.5

Maximum drilling distance: 46

Arm material: Steel

Arm finish: Nickel plated

Collision measurement (hinge arm height): 56.5

Fixed dimension / factory setting: -3.5

Type of side adjustment: With screw

Side adjustment: +/- 2 mm

Type of depth adjustment: convenient with spiral screw

Depth adjustment: + 3/- 2 mm

Gap: 1.5

Item package: 1 piece

packaging: Commercial packing

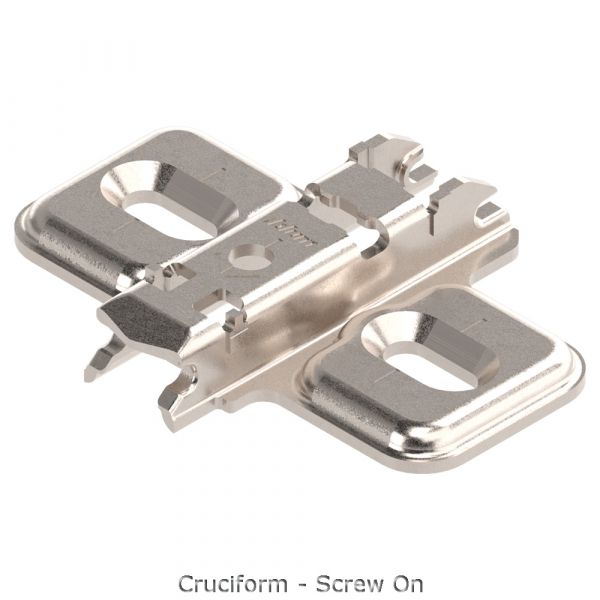

Blum CLIP Cruciform Mounting Plate 0 mm, Steel, Screw-on, HA: Elongated Hole

Part number:  173L6100

Item number:  07480175

Colour / finish:  Nickel plated

Technical Attributes

Mounting plate system: CLIP

Shape of mounting plate: Cruciform

Material: Steel

Fixing: for chipboard screws

Distance cabinet front edge to first fixing position: 37

Mounting plates height: adjustment with elongated hole

Height adjustment: +/- 3 mm

Height: 8.5

Spacing: 0

Angle: 0

Item package: 1 piece

Packaging: industrial packing

Fixing positions: fixing position 1/cruciform mounting plate
