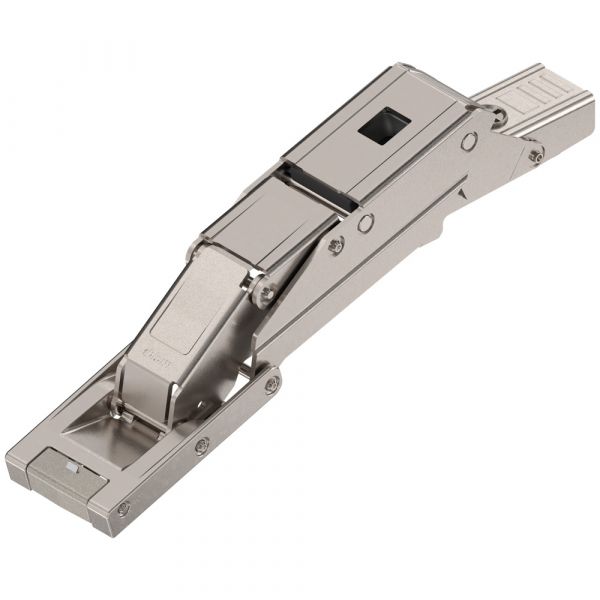

Blum - Clip Top Cristallo Glass Door Hinge 110° Overlay + Cruciform Mounting Plate
- View all variations as list
| CODE | Hinge Mounting Type | Spring Option | Availability | Price | ||
|---|---|---|---|---|---|---|
|
70T4500CTL/173L6100
|
In stock
|
AED2029 | |||
|
71T4500C/173L6100
|
In stock
|
AED2029 |
Brand: Blum
Colour / finish: Nickel plated
Application: CRISTALLO hinge
Opening angle: 110
Closing mechanism: unsprung/with spring
Hinge variant: with free movement for TIP-ON
Cover cap type: 70.4503
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 56.5
Fixed dimension / factory setting: -3.5
Type of side adjustment: With screw
Side adjustment: +/- 2 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging: industrial packing

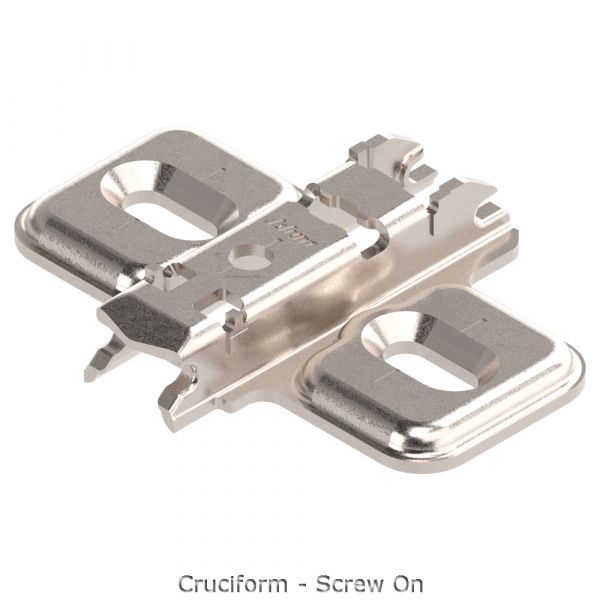

Blum CLIP Mounting Plate Cruciform 0 mm Steel - Screw-on
Part number: 173L6100
Item number: 07480175
Colour / finish: Nickel plated
Technical Attributes
Mounting plate system: CLIP
Shape of mounting plate: Cruciform
Material: Steel
Fixing: for chipboard screws
Distance cabinet front edge to first fixing position: 37
Mounting plates height: adjustment with elongated hole
Height adjustment: +/- 3 mm
Height: 8.5
Spacing: 0
Angle: 0
Item package: 1 piece
Packaging: industrial packing
Fixing positions: fixing position 1/cruciform mounting plate
