Hettich - Sensys 110° Hinge - Integrated Silent System + Cross Mounting Plate

9071207/9071575
AED1066
AED1421 Excl. VAT
1 Set (AED10.66 per Set)
You save: AED3.55
In stock
Price in points: 11 points
Arab Tools
+971562015094

Brand: Hettich

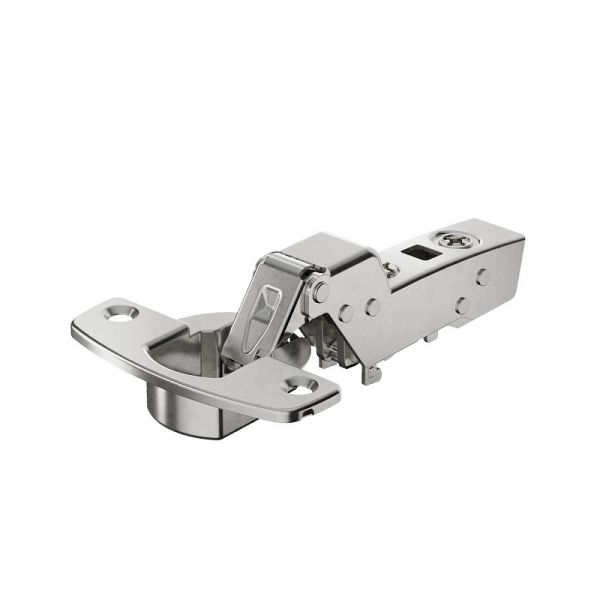

Sensys 110° hinge

With integrated Silent System, with self-closing feature (Sensys 8645i)

Quality classification under EN 15570, Level 3

Installation for screwing on

Height adjustment at mounting plate

Steel nickel plated

Specification:

Design: 90° construction

Door type: Standard door / wooden door Wood framed door (profile width from 50 mm Aluminium framed door (profile width from 50 mm)

User friendly features: with integrated silent system

Opening angle: 110 °

Min. door thickness: 15 mm

Max. door thickness: 24 mm

Cup version: TH 52

Cup diameter: 35 mm

Cup depth: 12.8 mm

Type of installation: for screwing on

Hinge surface finish: steel nickel plated

Drilling pattern: TH 52 x 5,5 mm

Diameter of mounting hole: Centre punch Predrilled hole: 2.5 mm Ø max.

Integrated overlay adjustment: +2 mm / -2 mm

Integrated depth adjustment: +3 mm / -2 mm

Mounting hole: -

Stay closed function: Yes


Available Option:

Full overlay

Base: 12.5 mm

EAN: 4023149030901

Order no.: 9071205


Half overlay

Base: 3 mm

EAN: 4023149652202

Order no.: 9071206

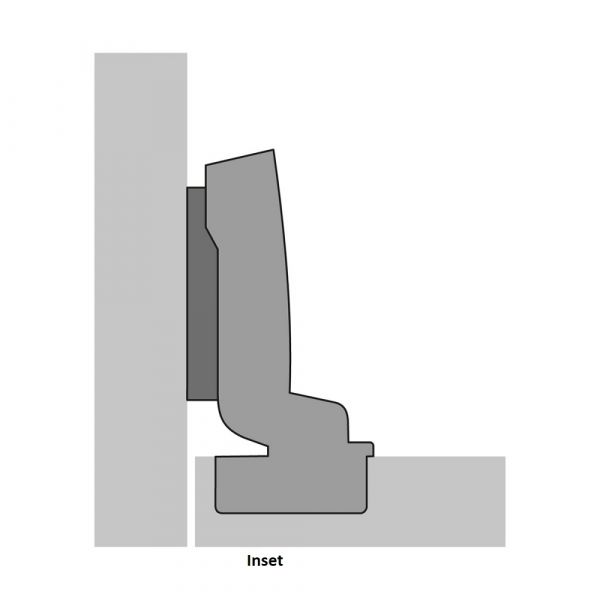

Inset

Base: -4 mm

EAN: 4023149033681

Order no.: 9071207


Hettich - Cross Mounting Plate

Cross mounting plate with oblong hole height adjustment

For Sensys, Novisys and Intermat

Quality classification under EN 15570, Level 3

Specification:

Type of installation mounting plates: for screwing on

Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: oblong hole height adjustment

Adjustment range: + 3 mm / - 3 mm

Hole line: Hole line 37 x 32 mm

Distance: 1.5 mm, 0.0mm

Hole spacing: 32 mm

Material: steel

Finish: nickel plated

Door mounting option: overlay, half overlay, inset

Type of installation: for screwing on

EAN: 4023149960116

Order no.: 9071575
