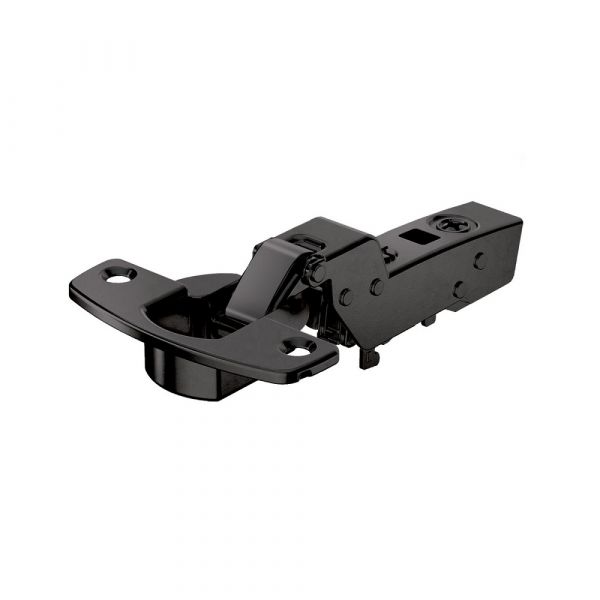

​ Hettich - Sensys Thick Door Hinge 95° - With Integrated Silent System + Cross Mounting Plate

Brand: Hettich

Sensys thick door hinge, door thickness up to 32 mm.

With integrated Silent System, with self-closing feature (Sensys 8631i).

Quality classification under EN 15570, Level 2.

Height adjustment at mounting plate.

steel in obsidian black.

Specification:

Design                         90° construction

Door type                     Thick door

Standard door / wooden door.

Wood framed door (profile width from 50 mm).

Aluminum framed door (profile width from 50 mm).

User friendly features  with integrated silent system.

Door mounting option  overlay.

Opening angle             95 °

Min. door thickness     15 mm

Max. door thickness     32 mm

Cup version                 TH 52

Cup diameter               35 mm

Cup depth                    12.8 mm

Type of installation       for screwing on

Hinge surface finish     steel in obsidian black

Drilling pattern                         TH 52 x 5,5 mm

Diameter of mounting hole       Centre punch

Predrilled hole                         2.5 mm Ø max.

Integrated overlay adjustment  +2 mm / -2 mm

Integrated depth adjustment    +3 mm / -2 mm

Stay closed function                Yes

Finish                                       in obsidian black

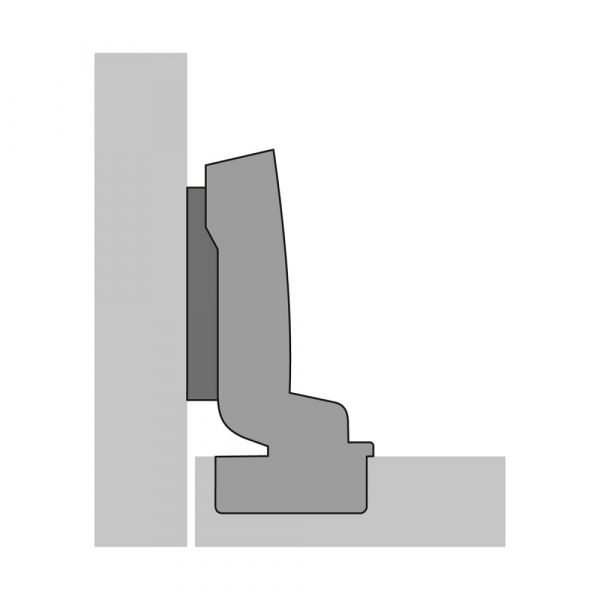

Available Option:

Full overlay

Base                                        12.5 mm

EAN                                         4023149092657

Order no.                                 9091753

Half overlay

Base                            3 mm

EAN                                         4023149093487

Order no.                                 9091755

Inset

Base                                       -4 mm

EAN                                         4023149093494

Order no.                                 9091756

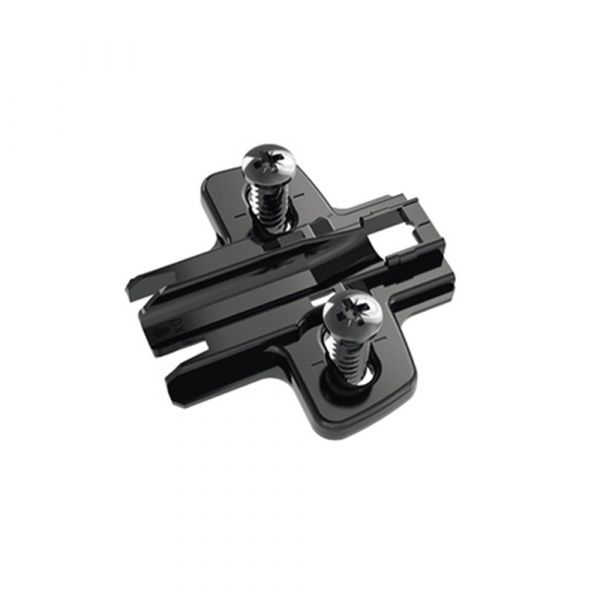

Hettich - Cross Mounting Plate

Cross mounting plate with oblong hole height adjustment

For Sensys in obsidian black

Quality classification under EN 15570, Level 3

Steel in obsidian black

Specification:

Cabinet body side panel thickness: 15 mm

Type of installation mounting plates: with euro screws (ø 5 x 12)

Mounting plate / Hole line distance LR / Hole spacing LA:

Cross-mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: oblong hole height adjustment

Adjustment range: + 3 mm / - 3 mm

Hole line: Hole line 37 x 32 mm

Distance: 0 mm, 1.5mm

Hole spacing: 32 mm

Material: steel

Finish: in obsidian black

Door mounting option: overlay, half overlay, inset

Type of installation: with euro screws

Mounting hole: ø 5 x 12

Order no.: 9091799
