Hettich - Veosys 105° Stainless Steel Hinge - Integrated Silent System + Cross Mounting Plate
- View all variations as list
| CODE | Hinge Mounting Type | Availability | Price | ||
|---|---|---|---|---|---|
|
9289592/9289598
|
Out of stock
|
AED1123 | ||
|
|
9289595/9289598
|
In stock
|
AED1139 | ||
|
|
9289590/9289598
|
In stock
|
AED1108 |
Brand: Hettich
Concealed hinge with clip on installation and integrated Silent System.
Quality classification under EN 15570, Level 2.
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670.
Height adjustment at mounting plate.
Stainless steel.
Specification:
Type of installation: for screwing on
Drilling pattern: TH 52 x 5,5 mm
Design: 90° construction
Door type: Standard door / wooden door
Aluminium framed door: (profile width from 50 mm)
Wood framed door: (profile width from 50 mm)
User friendly features: with integrated silent system
Opening angle: 105 °
Min. door thickness: 14 mm
Max. door thickness: 22 mm
Cup version: TH 42
Cup diameter: 35 mm
Cup depth: 11.5 mm
Integrated overlay adjustment: +/- 2.5 mm
Integrated depth adjustment: + 2 mm / -1.5 mm
Stay closed function: Yes
Available Options:

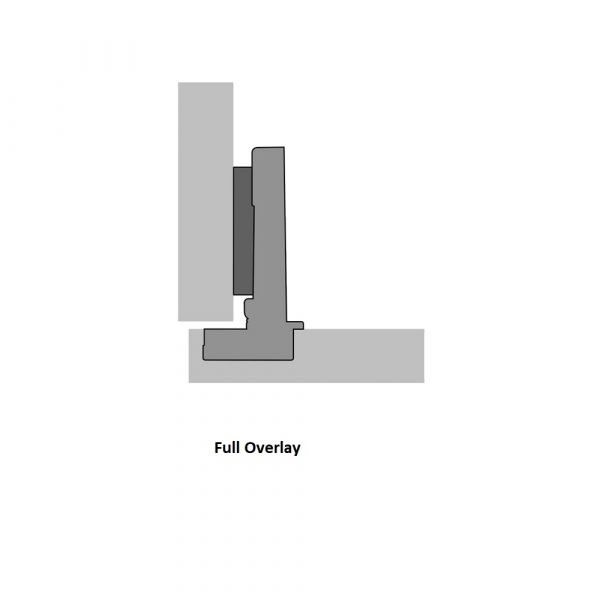

Door mounting option: Full overlay
Base: 11.5 mm
Order no.: 9289590
Door mounting option: Half overlay
Base: 3 mm
Order no.: 9289592

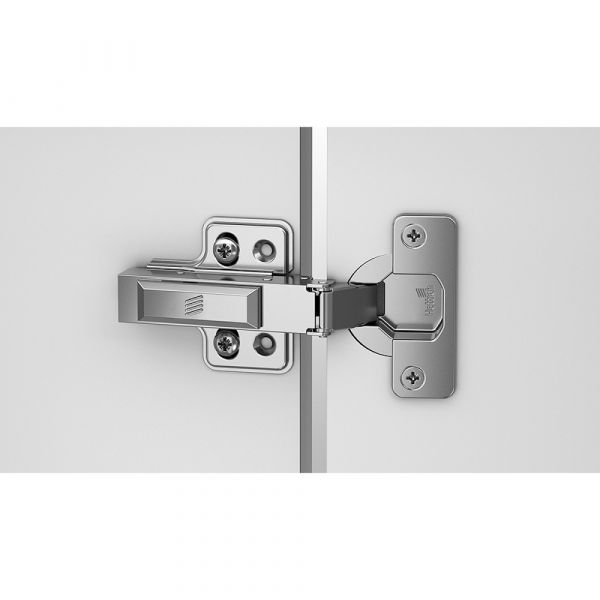

Door mounting option: Inset
Base: -6.5 mm
Order no.: 9289595

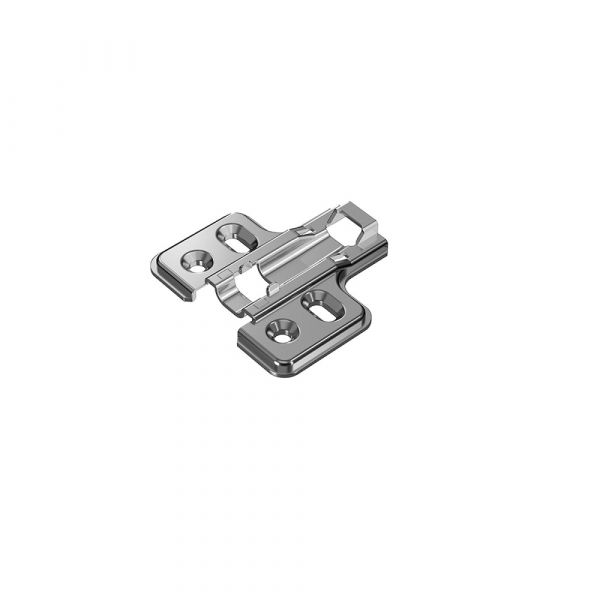

Hettich - Veosys Cross Mounting Plate - For Screwing
For 4 mm ø x 16 mm countersunk screws
Quality classification under EN 15570, Level 2
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
Oblong hole height adjustment ± 3 mm
Specification:
Type of installation mounting plates: For screwing on

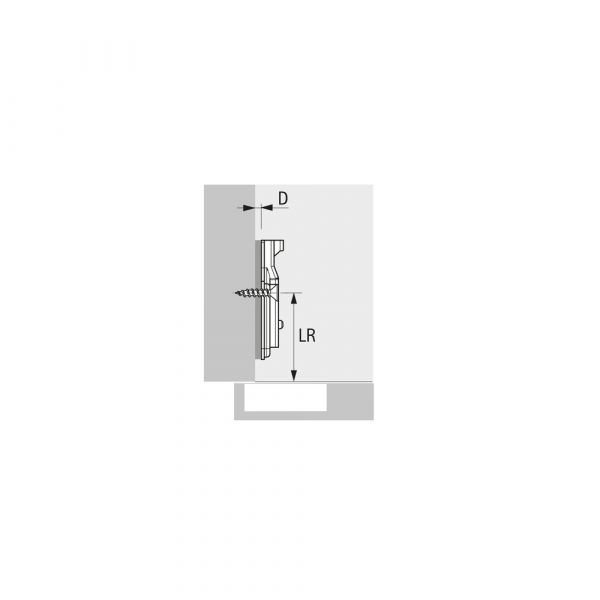

Mounting plate / Hole line distance LR / Hole spacing LA: Cross mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: Oblong hole height adjustment
Hole line: Hole line 37 x 32 mm
Distance: 0 mm
Hole spacing: 32 mm
Material: Stainless steel
Finish: Stainless steel
Door mounting option: Overlay, half overlay, inset
Order no.: 9289598
