Hettich - Veosys 105° Stainless Steel Hinge - Integrated Silent System + Cross Mounting Plate

Brand: Hettich

Concealed hinge with clip on installation and integrated Silent System

Quality classification under EN 15570, Level 2

Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670

Height adjustment at mounting plate

Stainless steel

Specification:

Type of installation: for screwing on

Drilling pattern: TH 52 x 5,5 mm

Design: 90° construction

Door type: Standard door / wooden door

Aluminium framed door: (profile width from 50 mm)

Wood framed door: (profile width from 50 mm)

User friendly features: with integrated silent system

Opening angle: 105 °

Min. door thickness: 14 mm

Max. door thickness: 22 mm

Cup version: TH 42

Cup diameter: 35 mm

Cup depth: 11.5 mm

Integrated overlay adjustment: +/- 2.5 mm

Integrated depth adjustment: + 2 mm / -1.5 mm

Stay closed function: Yes

Available Options:

Door mounting option: Full overlay

Base: 11.5 mm

Order no.: 9289590

Door mounting option: Half overlay

Base: 3 mm

Order no.: 9289592

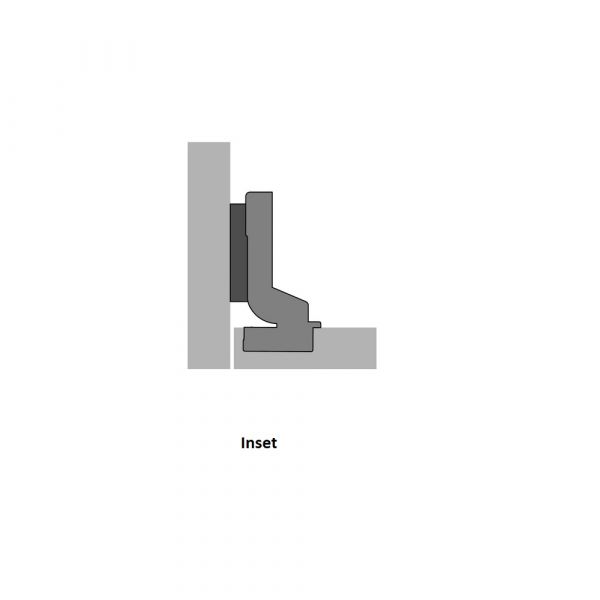

Door mounting option: Inset

Base: -6.5 mm

Order no.: 9289595

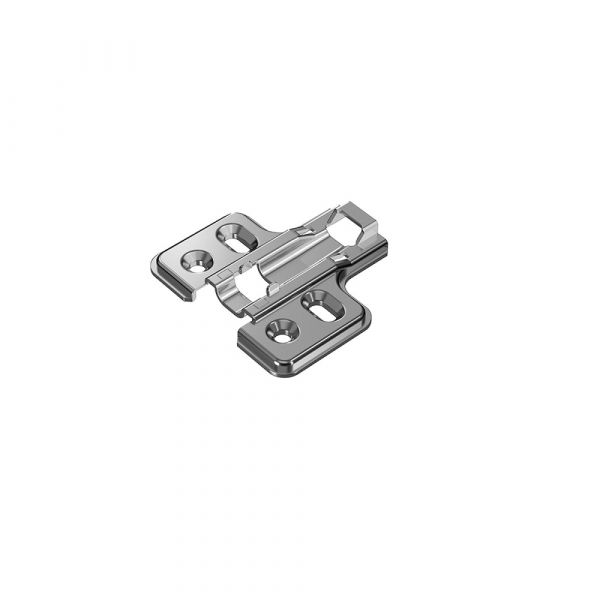

Hettich - Veosys Cross Mounting Plate - For Screwing

For 4 mm ø x 16 mm countersunk screws

Quality classification under EN 15570, Level 2

Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227

Oblong hole height adjustment ± 3 mm

Specification:

Type of installation mounting plates: For screwing on

Mounting plate / Hole line distance LR / Hole spacing LA: Cross mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: Oblong hole height adjustment

Hole line: Hole line 37 x 32 mm

Distance: 0 mm

Hole spacing: 32 mm

Material: Stainless steel

Finish: Stainless steel

Door mounting option: Overlay, half overlay, inset

Order no.: 9289598
