Salice - Hinge 155 Degree - Soft Closing + Cross Mounting Plate

CODE: C2BKAE6/BAR3R36

Write a review

AED35⁷⁹

Excl. VAT

1 Set (AED35.79 per Set)

In stock

Hinge Mounting Type:

Full Overlay Half Overlay Inset

Finish:

Nickel Titanium

Price in points: 36 points

+ −

View all variations as list

CODE	Hinge Mounting Type	Finish	Availability	Price
C2BKAE6/BAR3R36	Full Overlay	Titanium	In stock	AED35⁷⁹	+ −
C2AKGE9/BAV3M39F	Half Overlay	Nickel	In stock	AED24⁶¹	+ −
C2BKGE6/BAR3R36	Half Overlay	Titanium	In stock	AED37⁰⁴	+ −
C2AKPE9/BAV3M39F	Inset	Nickel	In stock	AED25⁰⁴	+ −
C2AKAE9/BAV3M39F	Full Overlay	Nickel	In stock	AED23⁶²	+ −

Vendor: ASPL Materials

Description
Features

Brand: Salice

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.

Hinges for thick doors 16 mm min.

Hinge with greater opening angle and reduced operating profile.

Dimensions of the Ø 35 mm cup

13, 5 mm deep cup

155° opening

Possible drilling distance on the door (K): from 3 to 9 mm.

Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

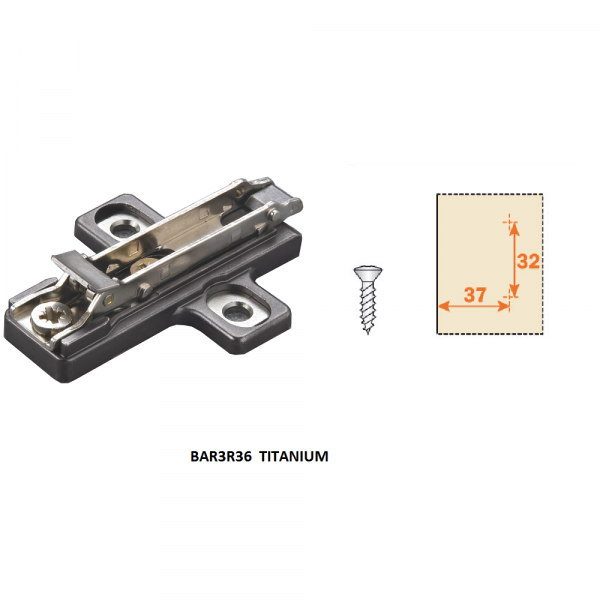

Salice - Clip Type Cross Mounting Plate

Cruciform Domi snap-on mounting plates.

For hinges Series 100, 200, 400, F, M, universal hinges and Silentia+.37x32 mm drilling.

Depth adjustment by cam.
